11

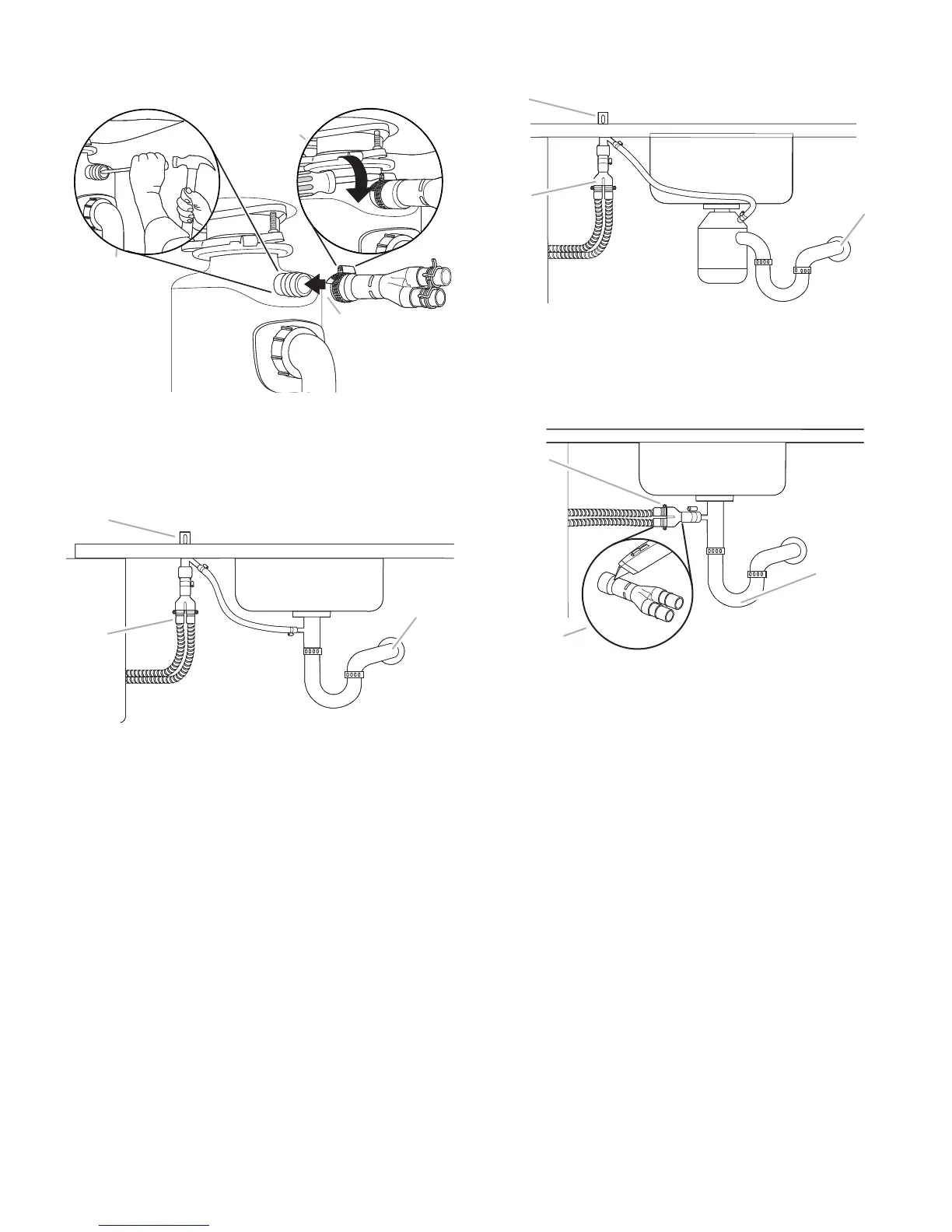

5. Connect the drain hose using one of the following options:
Option 1: Waste disposer no drain air gap
Option 2: No waste disposer and drain air gap
Option 3: Waste disposer and drain air gap
Option 4: No waste disposer, no drain air gap
NOTE: Attach the drain hose connector to the water waste
line using the supplied hose clamp.
6. Turn on water and check for leaks.
A. For new construction, remove disposer plug.
B. Connect drain connector to waste disposer.
C. Tighten clamp.
A. Drain hose connector
B. Drain air gap
C. Waste
A
C
B
A
B
C
A. Drain hose connector
B. Drain air gap
C. Waste
A. Drain hose connector
B. Cut drain connector
C. Waste
B
A
C
B
C
A
