KitchenAid W10216167A - Water Supply Requirements

5

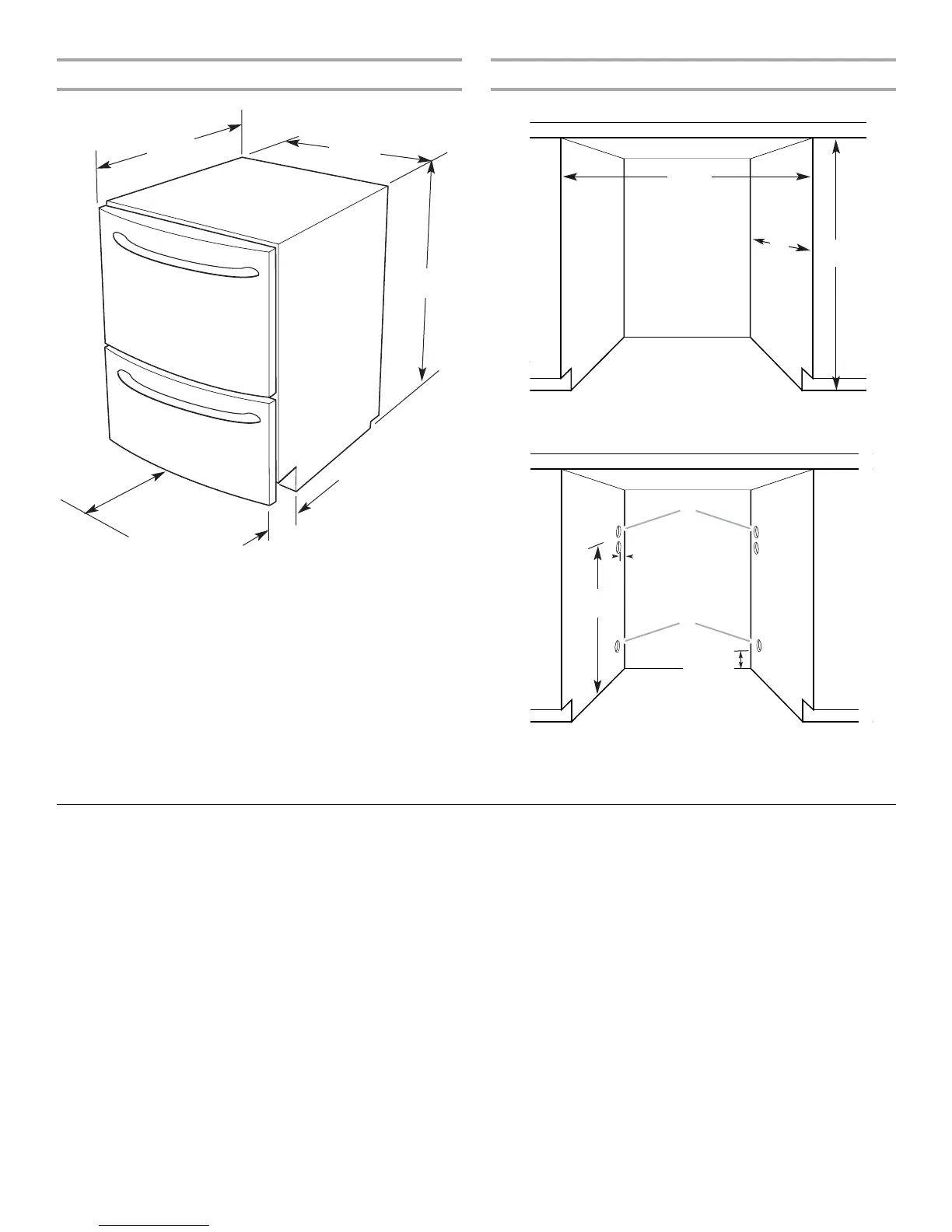

Product Dimensions Installation Clearances
Cutout dimensions
Preferred utililty area
NOTE: All holes should be drilled at 1½" (3.8 cm) diameter.
Water Supply Requirements
■ A hot water line with 20-120 psi (138-862 kPa) water pressure.
■ 120°F (49°C) water temperature at dishwasher.
■ Flexible stainless steel braided fill line (½" minimum plastic
tubing is not recommended).
23³⁄₈"
(59.5 cm)
19
¹⁄₄"
(48.9 cm)
1
¹⁄₂"
(3.75 cm)
24"
(61 cm)
33³⁄₄"
(85.7 cm)
A. Choose left-hand or right-hand drain and water connection route.
B. Choose left-hand or right-hand electric connection route.
23¹⁄₂"
24"
(61 cm)
33³⁄₄"
(85.7 cm)
(59.7 cm)
A
B
25"
(63.5 cm)
8"
(20.3 cm)
¹⁄₂"
(1.3 cm)
