— 17 —
* For decreasing the lifting speed, turn the volume counterclockwise.

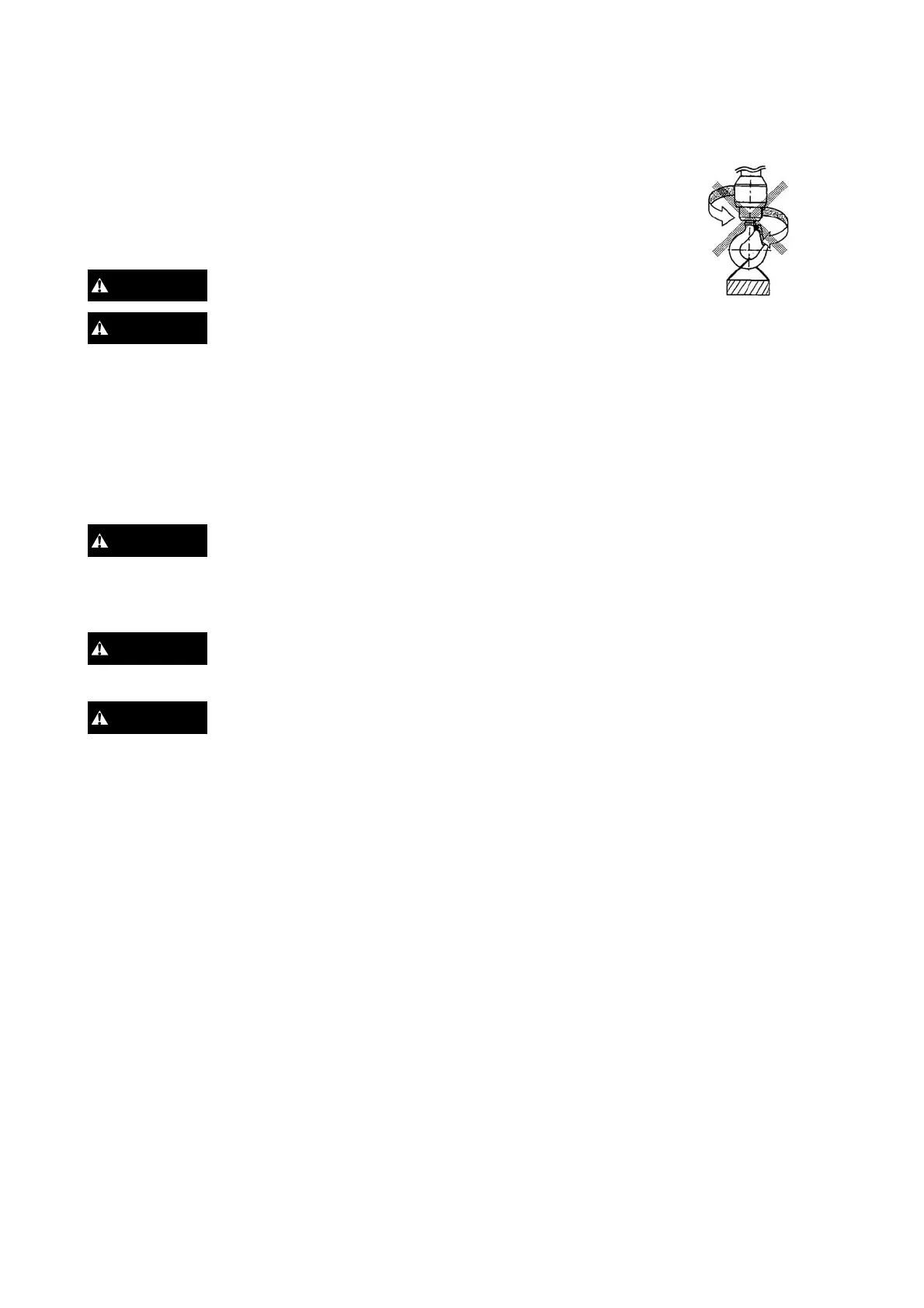

(2) The bottom hook is detachable. Detachment and setting are described next.
* To detach bottom hook:
Holding the body nut, turn the hook cam to be the left (counterclockwise).
* To set the bottom hook:
The bottom hook can be set by simply pushing it in from underneath.
: ALWAYS make sure the hook cam is completely locked.
: NEVER dropping or releasing a load could result in death or serious injury.
To avoid this hazard, do not operate the bottom hook release mechanism
(hook cam) when the hoist with cylinder-controlled or optional detachable
hook is under load.
4-4. Electric Chain Hoist with Trolley
To operate the electric chain hoist with trolley, move it horizontally by either pushing the lifted load or the
load chain.
: NEVER pull the curled cord, push-button switch or push-button cord. Pulling
the curled cord, push-button switch or push-button cord may disconnect cord
wires. Disconnected wire(s) may cause a short-circuit in the hoist body or any
surrounding conductor, giving the operator electric shock.
: ALWAYS move the horizontally by grasping the cylinder grip or pushing the
load.
: ALWAYS pay your attention on your back when you attempt to push a lifted
load or the load chain.
WARNING
WARNING
WARNING
WARNING
WARNING
