— 15 —

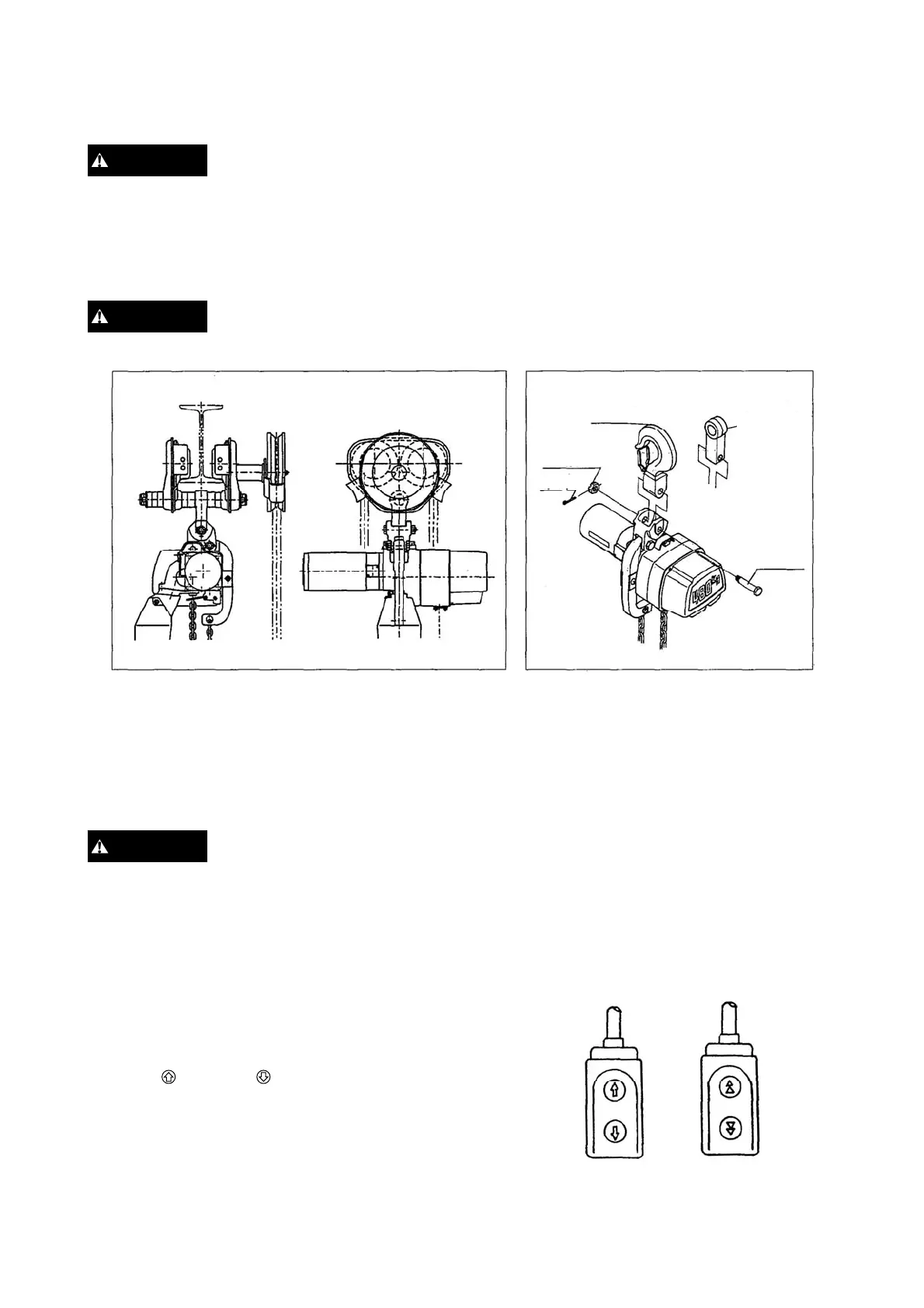

(2) INSTALLING TROLLEY TO RAIL
: For all trolley suspended electric chain hoists, rail stops must be installed at
each end of the rail. Failure to install rail stops will allow the hoist and trolley
to fall off the end of the rail and thus cause an accident that could result in
injury and/or property damage. The stops must be positioned so as to not
exert impact force on the electric chain hoist frame or trolley wheels. They
must contact the ends of the trolley side frames.
: Rail stops should be attached with buffers to alleviate trolley impact force.
(3) TS series trolley (480kg only)
* For more details of connection with TS series trolley, refer to the manual of TS series
trolley.
4. OPERATION
As soon as pre-usage preparation and checks have been completed, the hoist will be ready for operation.
: In shifting operation between lifting up and lowering down under the loaded
condition, ensure to avoid the immediate reverse operation before the hoist
motor completely stops. If not avoided, it could result in the hoist’s damage.
Ensure to avoid the excessive inching operation. (Inching operation: very
frequent lifting or lowering operations in a very short time for positioning the
hook with very small repeated hook movements.) If not avoided, it could
result in the hoist’s damage.
4-1. Single-speed Type
The push-button switch is single-step push-in type.
Push to lift and to lower.
.
WARNING
ED 480kg ED 480kg
Top hook
WARNING
Single-speed type
Suspender
Slotted nut
Split pin
Yoke bolt
WARNING
Dual-speed type
To Next Page
