4. Operation and display elements
4.1. Display - Control System SL 033

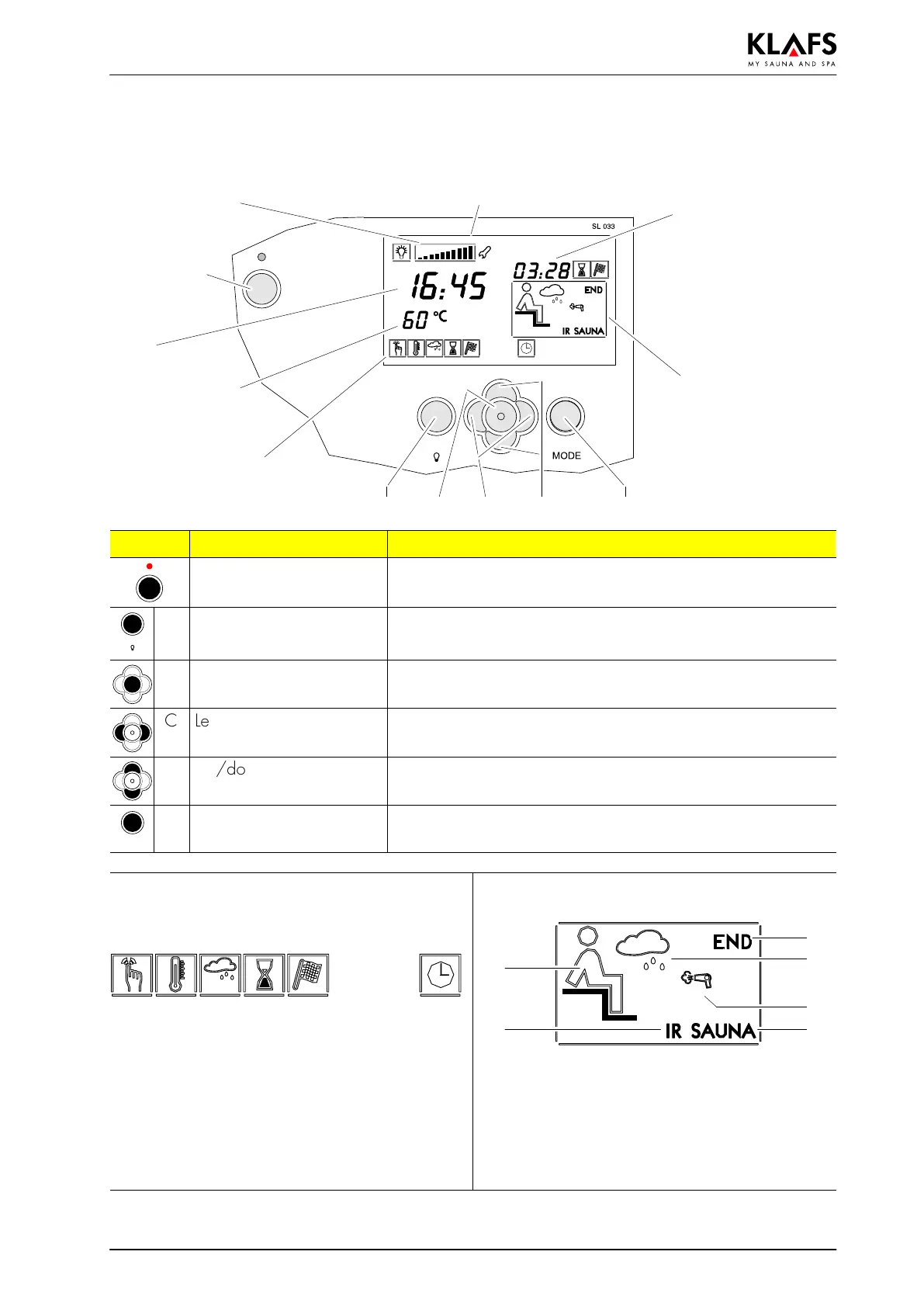

LCD-Display
Preselection
time/remaining
bathing time
Operation modes
Programs and individual
settings
Time
Nominal value/
Bar display
AEC
Main switch
Temperature display
B D
Button: Description: Function:
Main switch Control system standby On/Off switch.
With standby On, the time of day appears on the display.
A Light switch Cabin light On/Off switch.
. Only with main switch switched On.
B OK button Accept/store the values.
Ñ
Ñ
Ñ
C Left/right buttons Select the symbols for the programs or individual settings.
Ñ
Ñ
Ñ
D Up/down buttons Select a program or change the adjustable values.
E MODE button Select the operation mode: Sauna, Infrared, Softclima,
Infraclima or Program End.
Symbols for the programs and
individual settings:
Symbols for operation modes:
12345 6
12
3
4
6
5
1. Programs
2. Temperature
3. Humidity (only with Softclima/Infraclima)
4. Bathing duration
5. Preselection operation
6. Setting the time.
1 Sauna
2 Infrared
3 Softclima
2+3 Infraclima
4 Cabin ready for bathing
5 Final drying
6 Program end.
