5. Attach the 4 adjustable screws to the hanging board, turn them to the right length
and not too tight. The height of the 4 screws is basically the same. Pass the 4
wire ropes through the 4 adjustable screws, calculate the length of the wire rope
according to image 1 and mark the length on the rope. Use the 4 rope clamping
screws + nuts to x the 4 ropes at the marked points. Make sure that the 4 ropes are
of equal length (see image 3).

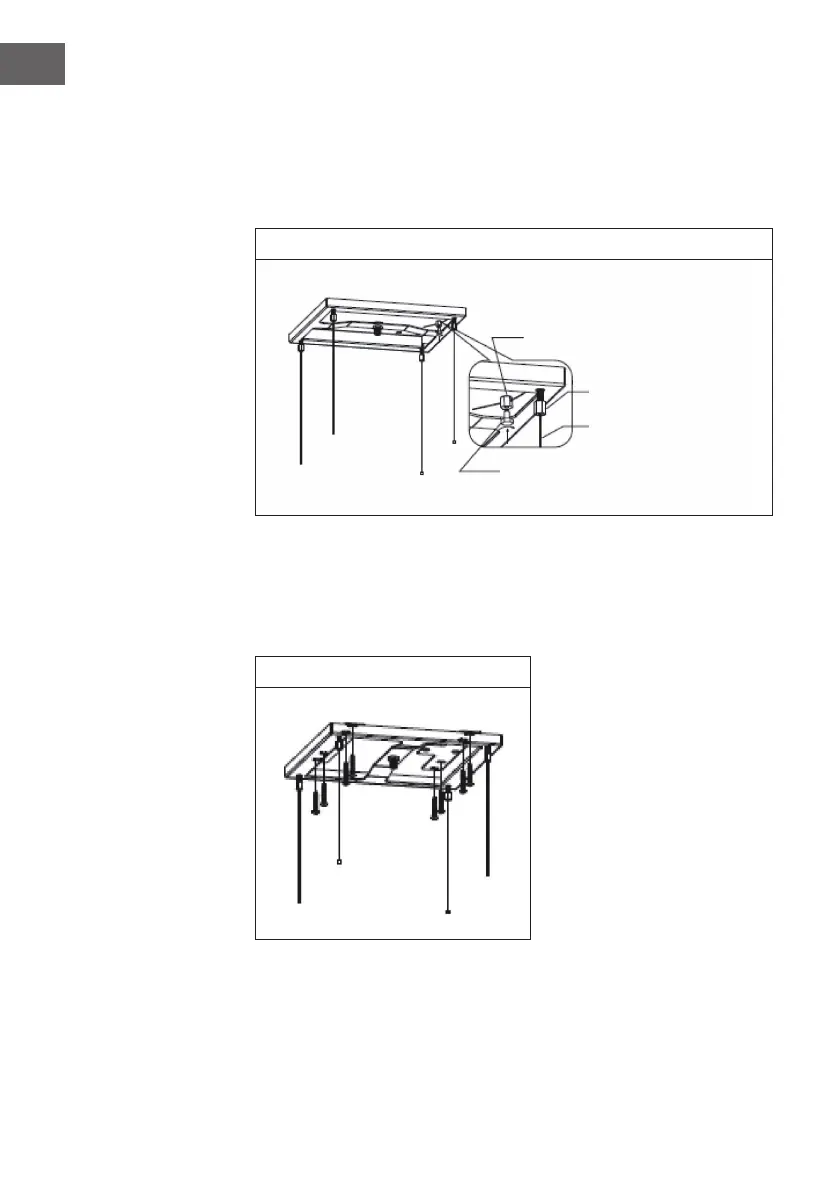

Image 3
6. Drill 8 mounting holes on the ceiling corresponding to the 8 round holes on the
hanging board and x the hanging board to the wooden ceiling with 8 countersunk
screws (ST6*40 mm) (see image 4). If the ceiling is made of concrete, you must drill
4 mounting holes corresponding to the 4 holes on the hanging board and use four
countersunk screws(Ø6*60) to x the hanging board to the ceiling.
Image 4
Adjustable screws
Wire rope
Rope clamping screws
Rope clamp screw nut
