ENGLISH

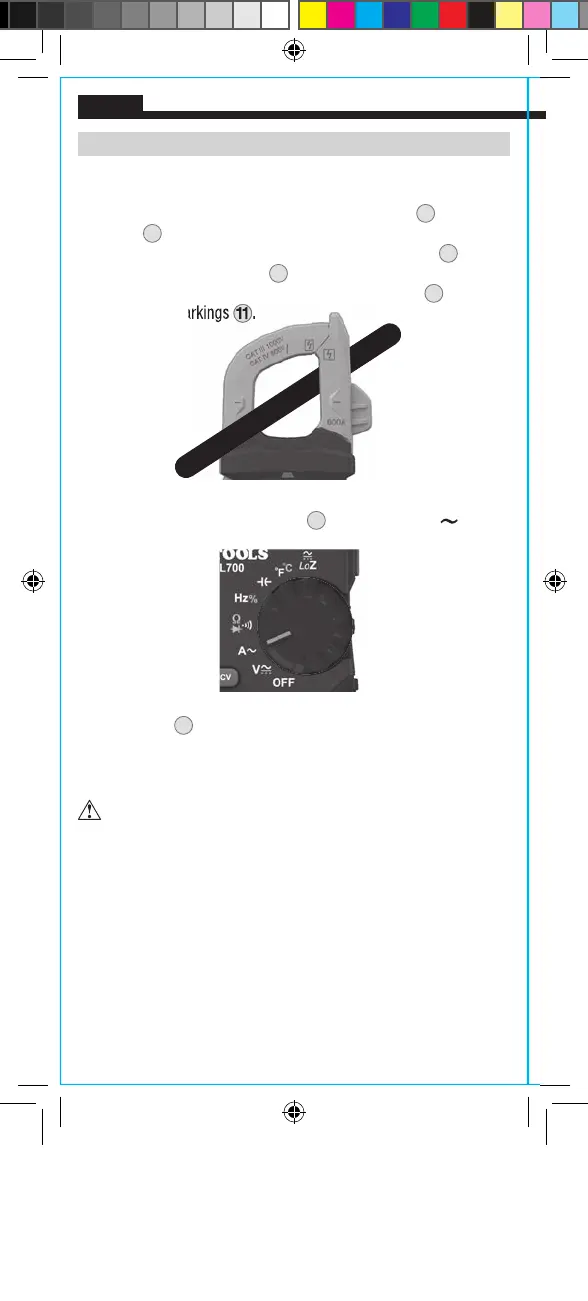

OPERATING INSTRUCTIONS
AC CURRENT (LESS THAN 600A)
AC Current is measured by pressing the clamp trigger
10
to open
the clamp
3
and placing it around a current-carrying wire. When
measuring, care should be taken to ensure that the clamp
3
is
completely closed with trigger
10
fully released, and that the wire
passes perpendicularly through the center of the clamp
3
in line
with the arrow markings
11
.
To measure current:
1. Rotate the Function Selector switch
2
to the AC current A setting.
2. Place clamp
3
around wire. The current measurement will be
shown in the display.
The meter will auto-range to display the
measurement in the most appropriate range.
Disconnect test leads when measuring with the clamp.
WIRE
