Klein Tools CL700 - Feature Details

Dwg Name: CL700-1390105ART
Dwg No: 1390105
ECO No: 21122 Rev: B
Pkg Dwg Ref: 1290186
Color Reference: N/A
6
ENGLISH

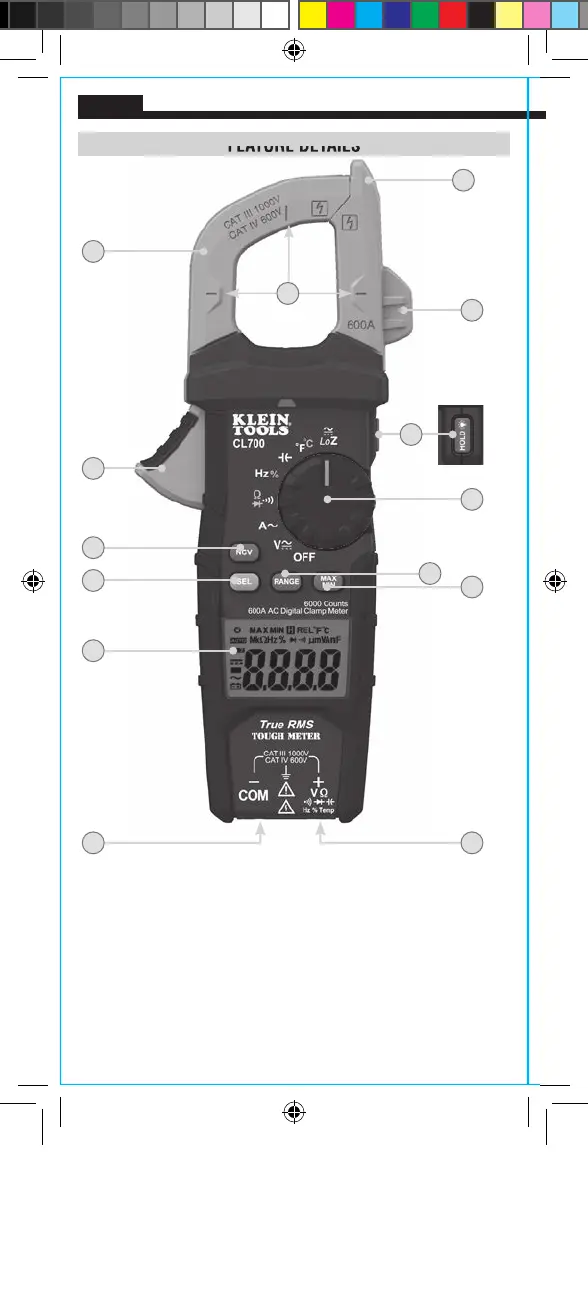

FEATURE DETAILS
1.
6000 count LCD display
8.
"MAX/MIN" button
2.
Function selector switch
9.
"SEL" (select) button
3.
Clamp
10.
Clamp trigger (press to open clamp)
4.
"COM" jack
11.
Arrow markings
5.
"VΩ" jack
12.
N on-contact Voltage Testing Button
6.
Data Hold / Backlight button
13.
Test lead holder for test probe
7.
"RANGE" button
14.
Non-Contact Voltage Testing Sensor
FEATURE DETAILS
1
9
2
3
10
13
14
12
5
8
7
4
6
NOTE: There are no user-serviceable parts inside meter.
11
