MAINTENANCE
BATTERY REPLACEMENT
When indicator is displayed on LCD, batteries must be replaced.
1. Remove screw from battery door.
2. Replace 2 x AAA batteries (note proper polarity).
3. Replace battery door and fasten securely with screw.
ENGLISH

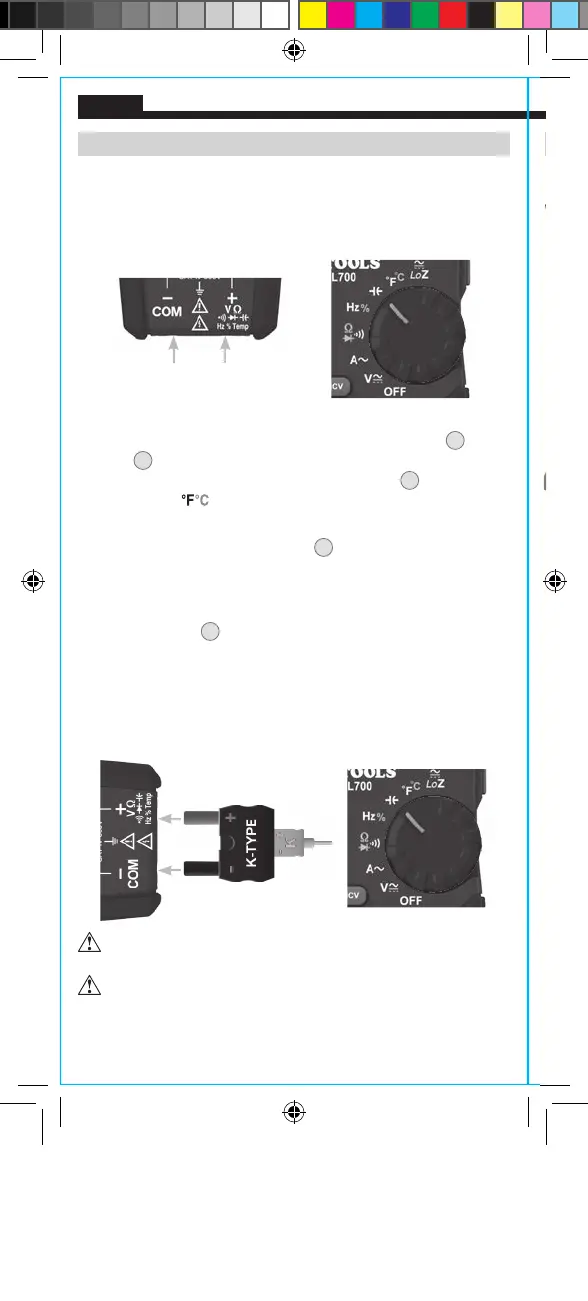

TEMPERATURE
1. Insert K-type thermocouple (with adapter) into the VΩ
5
and
COM
4
jacks (observe polarity markings on thermocouple
and meter), and rotate function selector switch
2
to the
Temperature
setting.
NOTE: The meter defaults to Fahrenheit scale in this mode. To enter
Celsius scale, press the "SEL" button
9
once. Ensure that the
appropriate icon (either
°F or °C ) appears on the display.
NOTE: The meter may be set to default to the Celsius scale by
powering-ON the meter from the OFF position with the Data Hold
& Backlight button
6
depressed. To re-set the default to the
Fahrenheit scale repeat the power-ON sequence.
2. To measure temperature, make contact between the
thermocouple tip and the object being measured. When
thermocouple tip and object are in thermal equilibrium, the
measurement on the display will stabilize. The meter will auto-
range to display the measurement in the most appropriate range.
Remove thermocouple before switching meter to other
measurement functions.
T he thermocouple included with the original purchase
is suitable for temperatures below 356°F / 180°C only.
To measure higher temperatures, a K-type thermocouple
with the appropriate measurement range should be used.
2. Remove power from circuit.
3. Measure capacitance by connecting test leads across the capacitor.
The meter will auto-range to display the measurement in the most
appropriate range.
OPERATING INSTRUCTIONS
Black lead Red lead
RED
BLACK
K-Type Thermocouple
(with adapter)
Thermocouple
Adapter
