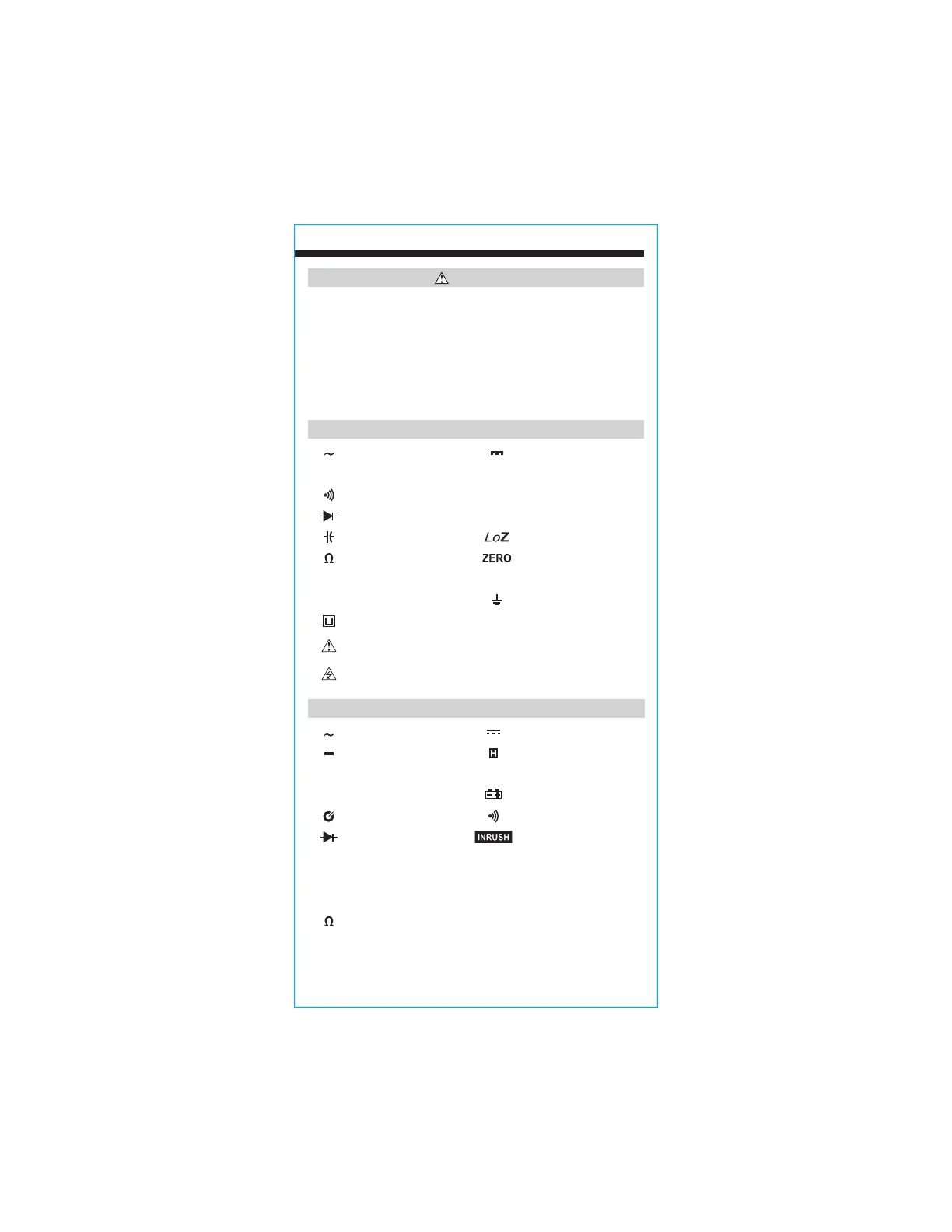

SYMBOLS ON METER
Alternating Current (AC) Direct Current (DC)
A
Amperage
V
Voltage
Audible Continuity
Hz
Frequency
Diode Test
%
Duty-Cycle
Capacitance Low Impedance
Resistance (Ohms) DC Current Zero Function
+ Positive – Negative
COM
Common Ground
Double Insulated Class II
Warning or Caution:
To ensure safe operation and service of this
meter, follow all warnings and instructions detailed in this manual.
Risk of Electrical Shock:
I
mproper use of this meter can lead to risk of
electrical shock. Follow all warnings and instructions detailed in this manual.
SYMBOLS ON LCD
AC Measurement DC Measurement
Negative Reading Data Hold
AUTO
Auto Ranging
MAX
Maximum Value Hold
MIN
Minimum Value Hold Low Battery
Auto Power Off Audible Continuity
Diode Test Inrush Current
k
kilo (value x 10
3
)
m
mili (value x 10
-3
)
M
Mega (value x 10
6
)
n
nano (value x 10
-9
)
μ
micro (value x 10
-6
)
F
Farads
Ohms
A
Amps
V
Volts
LoZ
Low Impedence
Hz
Frequency (Hertz)
%
Duty Cycle
WARNINGS
• Always adhere to local and national safety codes. Use personal
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
• Usage of this meter in any way other than that specified by the
manufacturer can impair safe operation, resulting in severe injury or death.
• To avoid risk of electric shock, disconnect leads from any voltage source
before removing battery door.
• To avoid risk of electric shock, do not operate meter while battery door is
removed.
