Klein Tools MM600 User Manual

Dwg Name: MM700-1390112ART
Dwg No: 1390112
ECO No: 20617 Rev: E
Pkg Dwg Ref: 1290186
Color Reference: N/A
10
OPERATING INSTRUCTIONS
AC/DC VOLTAGE (LESS THAN 1000V)
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
the V
setting.
NOTE: The meter defaults to AC measurement. To measure DC, press
the "SEL" button
11
to toggle between AC and DC modes. The AC or
DC icon on the LCD indicates which mode is selected.
2. Apply test leads to the circuit to be tested to measure voltage.
The meter will auto-range to display the measurement in the
most appropriate range.
NOTE: If "–" appears on the LCD, the test leads are being applied to
the circuit in reverse. Swap the position of the leads to correct this.
NOTE: When in a voltage setting and the test leads are open,
readings of order mV may appear on the display. This is noise and
is normal. By touching the test leads together to close the circuit
the meter will measure zero volts.
AC/DC LO Z VOLTAGE (LESS THAN 600V)
Voltage measurements in Low Impedance (Lo Z) setting can be used
to identify ghost or stray voltages.
• Follow same procedure for measuring AC/DC Voltage (see above)
with Function Selector switch
2
in the Lo Z setting.
DO NOT attempt to measure voltages greater than 600V in
Lo Z setting.
ENGLISH
OPERATING INSTRUCTIONS

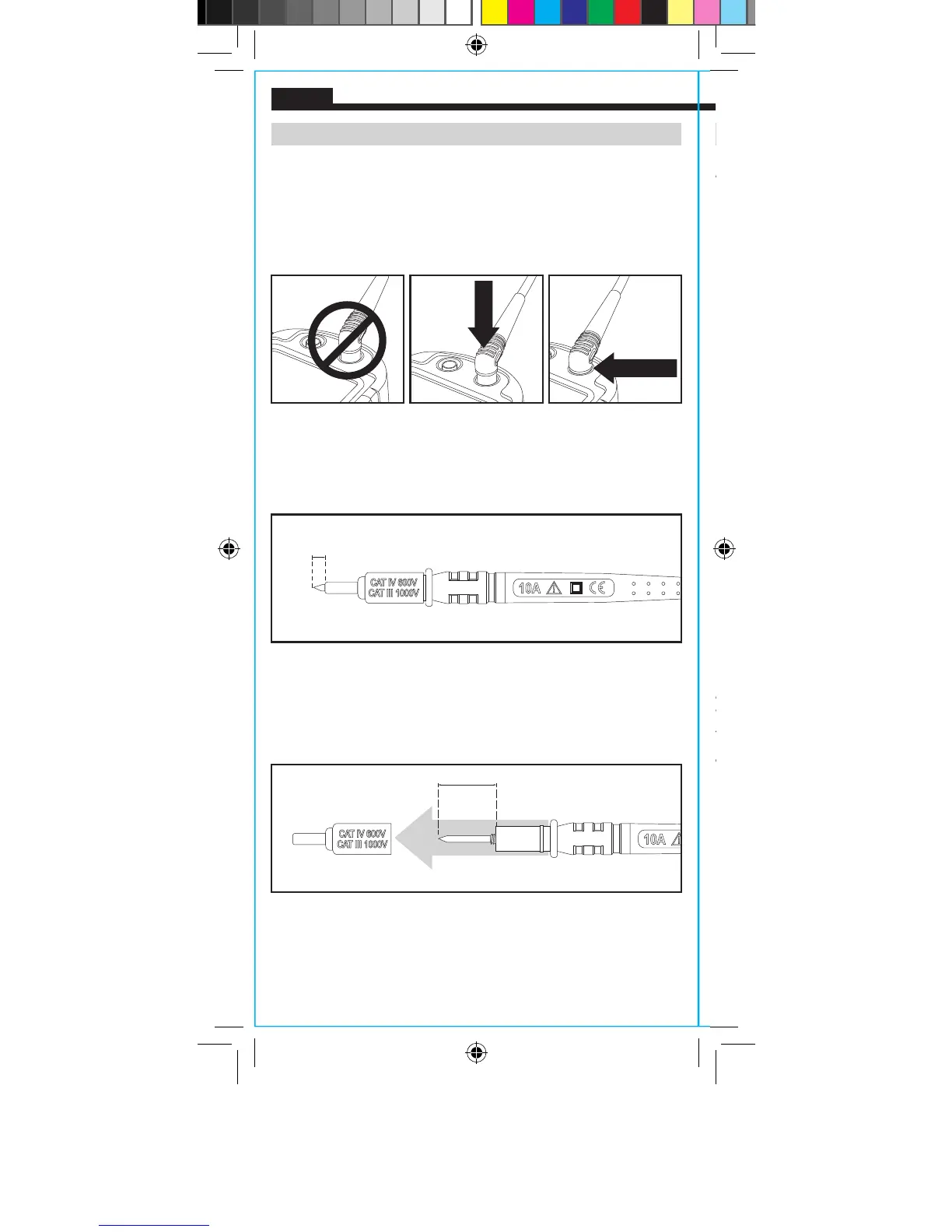

CONNECTING TEST LEADS
Do not test if leads are improperly seated. Results could cause
intermittent display readings. To ensure proper connection, firmly
press leads into the input jack completely. Lead guard should be
flush with the meter’s faceplate.
TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS
Ensure the test lead shield is pressed firmly in place. Failure to use
the CAT III / CAT IV shield increases arc-flash risk.
TESTING IN CAT II MEASUREMENT LOCATIONS
CAT III / CAT IV shields may be removed for CAT II locations. This
will allow testing on recessed conductors such as standard wall
outlets. Take care not to lose the shields.
PRESS
NO GAP
5/32"
(4 mm)
.7" (18 mm)
MM700-1390112ART.indd 10 9/21/2015 2:44:49 PM

Klein Tools MM600 Specifications

General

Product type	Digital multimeter
Product color	Black, Orange
AC current range	0 - 10 A
DC voltage range	0 - 1000 V
Measuring category	CAT III 1000V, CAT IV 600V
Placement supported	Handheld multimeter
Temperature measurement range	-18 - 538 °C
International Protection (IP) code	IP42
Battery type	AAA
Power source	Battery
Number of batteries supported	2
Carrying case	Yes

Weight and Dimensions

Depth	178 mm
Width	90 mm
Height	53 mm
Weight	408 g
