OPERATING INSTRUCTIONS

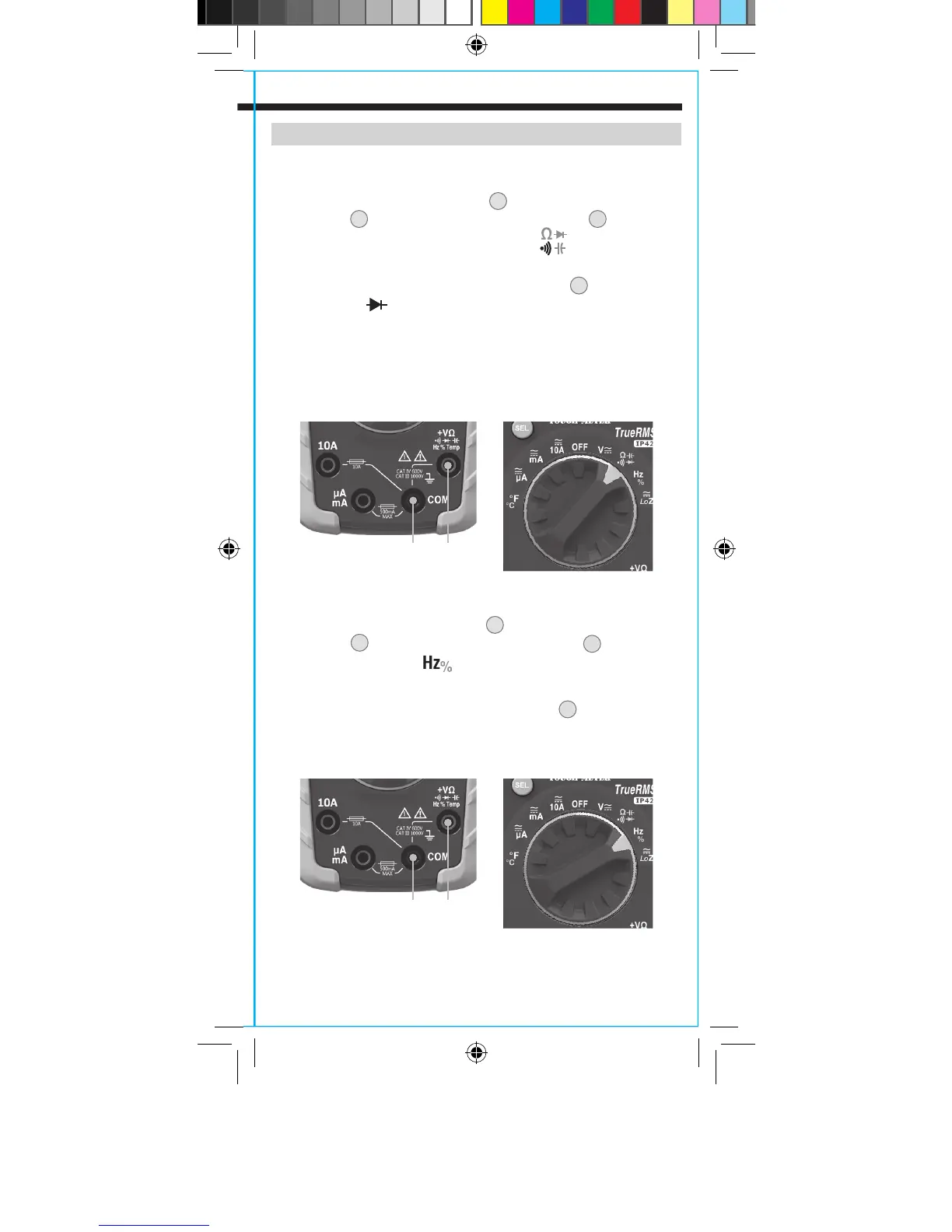

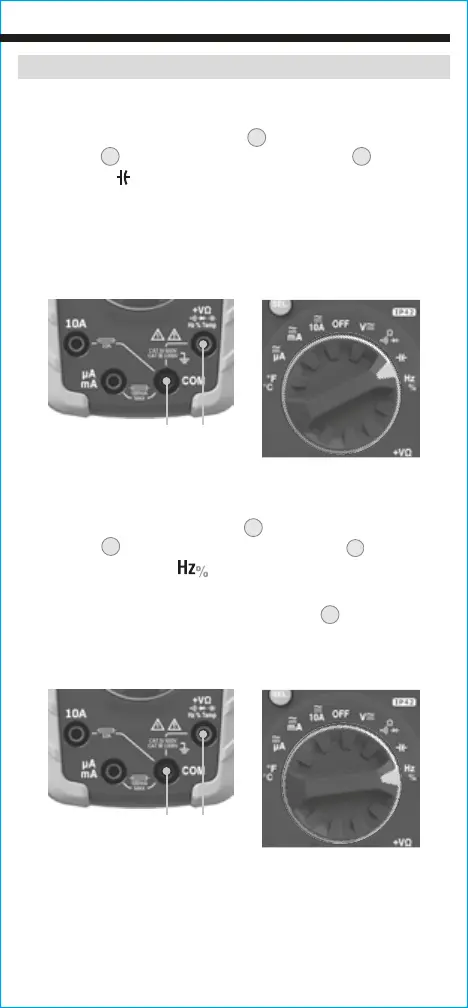

CAPACITANCE
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/Diode/Capacitance
setting.
NOTE: The meter defaults to Continuity testing in this mode. To
enter Diode testing mode, press the "SEL" button
11
three times.
The Diode icon
will appear on the display.
2. Remove power from circuit.
3. Measure capacitance by connecting test leads across the
capacitor. The meter will auto-range to display the measurement
in the most appropriate range.
FREQUENCY / DUTY-CYCLE
1. Insert RED test lead into VΩ jack
5
and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Frequency/Duty-Cycle
setting.
NOTE: The meter defaults to Frequency testing in this mode. To enter
Duty-Cycle testing mode, press the "SEL" button
11
once. Ensure
that the appropriate icon (either
Hz or % ) appears on the display.
2. Measure by connecting test leads across the circuit.
Red leadBlack lead
Red leadBlack lead
MM700-1390112ART.indd 15 9/21/2015 2:44:56 PM

Klein Tools MM600 Specifications

General

Product type	Digital multimeter
Product color	Black, Orange
AC current range	0 - 10 A
DC voltage range	0 - 1000 V
Measuring category	CAT III 1000V, CAT IV 600V
Placement supported	Handheld multimeter
Temperature measurement range	-18 - 538 °C
International Protection (IP) code	IP42
Battery type	AAA
Power source	Battery
Number of batteries supported	2
Carrying case	Yes

Weight and Dimensions

Depth	178 mm
Width	90 mm
Height	53 mm
Weight	408 g
