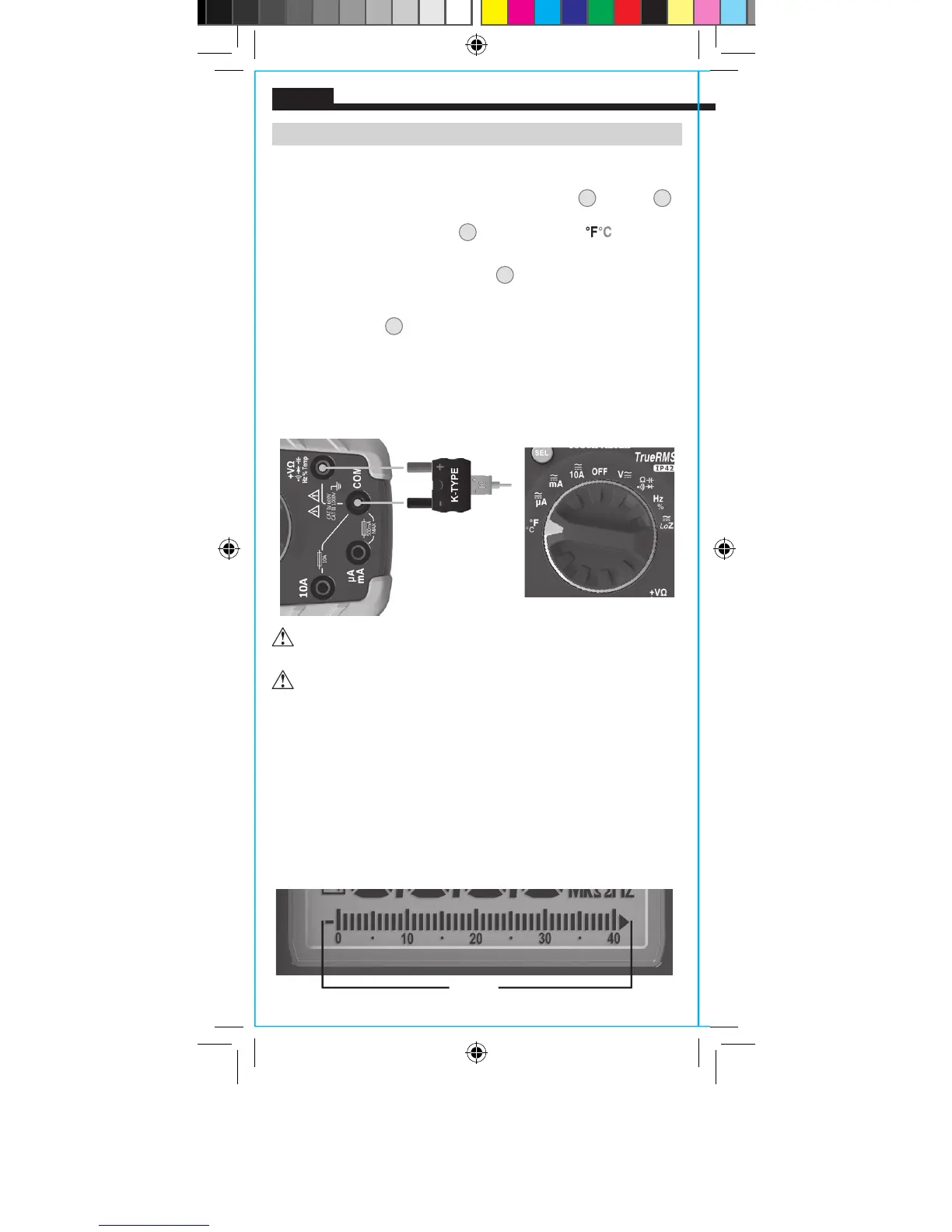

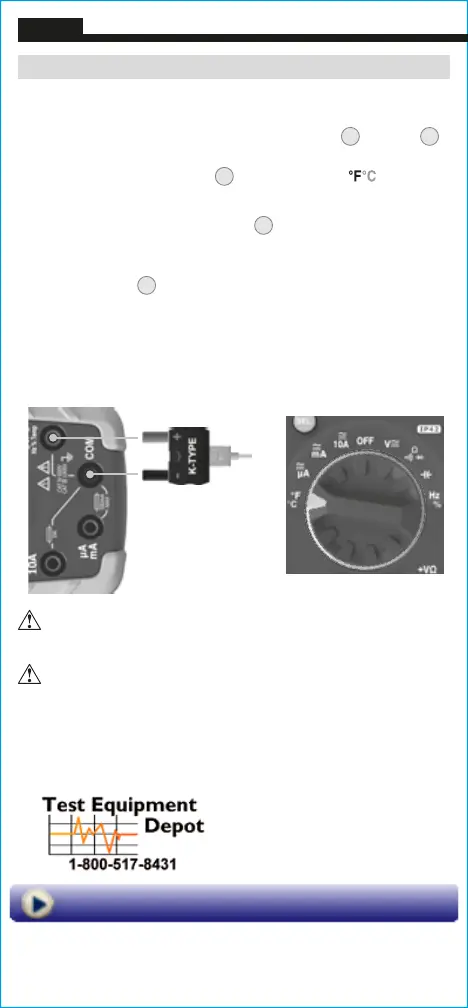

OPERATING INSTRUCTIONS
TEMPERATURE
1. Insert K-type thermocouple with adapter into the VΩ
5
and COM
4
jacks (observe polarity markings on thermocouple and meter), and
rotate function selector switch
2
to the Temperature setting.
NOTE: The meter defaults to Fahrenheit scale in this mode. To enter
Celsius scale, press the "SEL" button
11
once. Ensure that the
appropriate icon (either
°F
or
°C
) appears on the display. Default
temperature scale may be changed by powering on the meter with
the "HOLD" button
11
depressed.
2. To measure temperature, make contact between the
thermocouple tip and the object being measured. When
thermocouple tip and object are in thermal equilibrium, the
measurement on the display will stabilize. The meter will auto-
range to display the measurement in the most appropriate range.
Remove thermocouple before switching meter to other
measurement functions.
The thermocouple included with the original purchase
is suitable for temperatures below 356°F / 180°C only. To
measure higher temperatures, a K-type thermocouple
with the appropriate measurement range should be used.
BAR GRAPH
The Bar Graph is an analog representation of the measurement. It responds
to the measurement approximately 3-5 times faster than the digits in the
digital display which, in certain circumstances, may allow the user to have
a clearer view of quick changes in the property being measured. In any
given range the bar graph scales from zero on the left hand side to the
maximum value of the range on the right hand side of the display.
Bar graph
RED
BLACK
K-Type
Thermocouple
with Adapter
Probe
Adapter
