Disc Scraper replacement

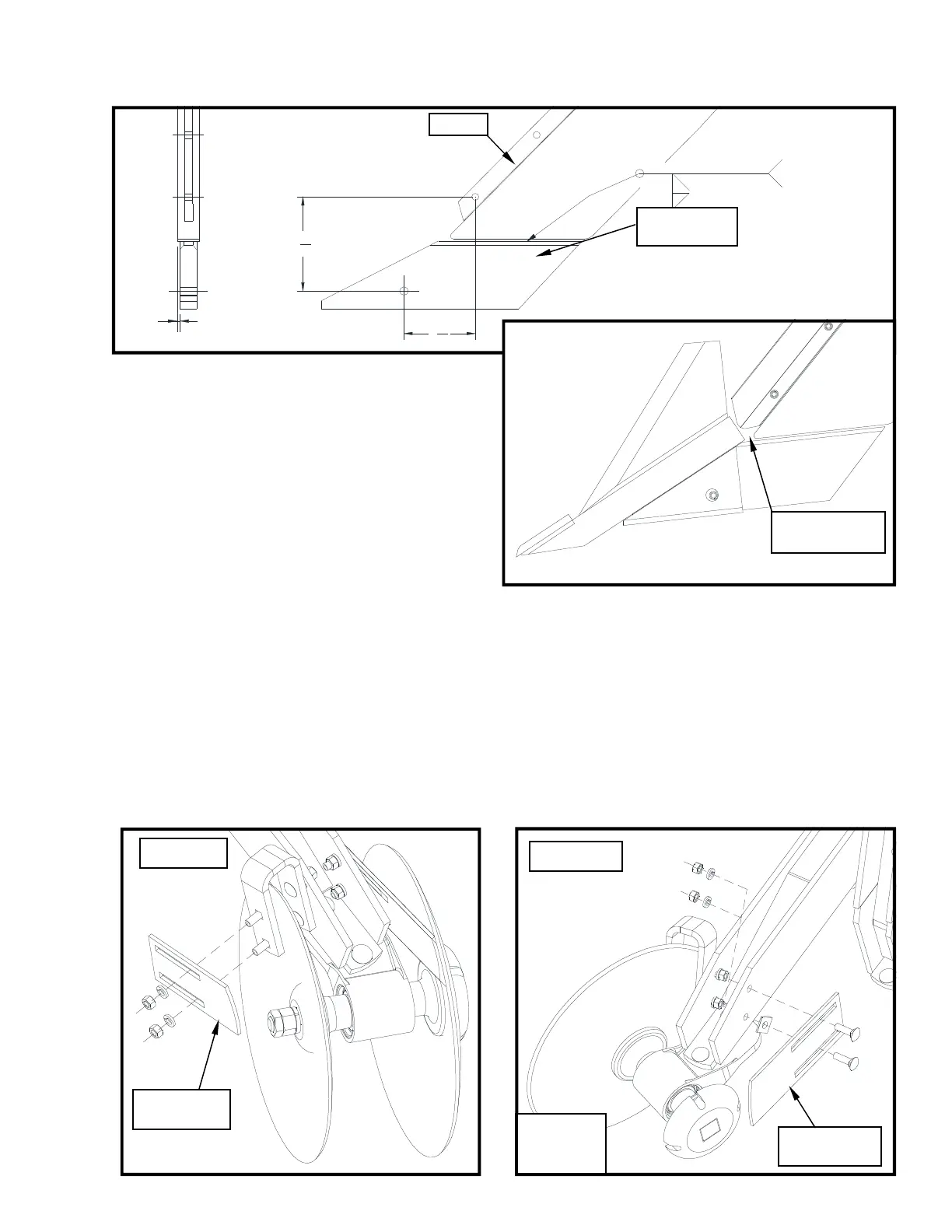

The Shank Base on occasion may need to be
replaced when a ripper point has worn through and
has worn the shank base down. This needs to be
replaced in order to keep the ripper point from
wearing out prematurely because it does not have
a proper fit.
Torch off old shank base from the bottom of
the shank and grind flush. Use a new shank base
(67-023-081) locating and centering and tacking
bottom of shank with dimensioning above.
1/8
3/16 Low Hydrogen
3/8
ROOT PASS TO
PRE-HEAT MATERIAL
4
3
16
3
3
16
Shank
Shank Base
(67-023-081)
Shank Base Replacement
Point and Wear
Shin Clearance.
Now assemble Point and Wear Shin onto the shank to check for clearance between the point and
wear shin. If the clearance is sufficient weld shank base into place according to welding instructions
above.
Remove the 1/2” Carriage Bolts, 1/2” Lockwashers, and 1/2” Hexnuts which bolt the scraper to the
Disc Mounting Brackets. Replace a new Disc Scrapers, 18” (06-027-004) on the inside disc and a
20” (06-023-050) on the outside disc. Refer to diagrams below. Adjust scraper so disc has clearance
when rotated.
Inside Disc
Outside Disc
18” Scraper
(06-027-004)
20” Scraper
(06-023-050)
Outside Disc
Remove for
clarity
