50

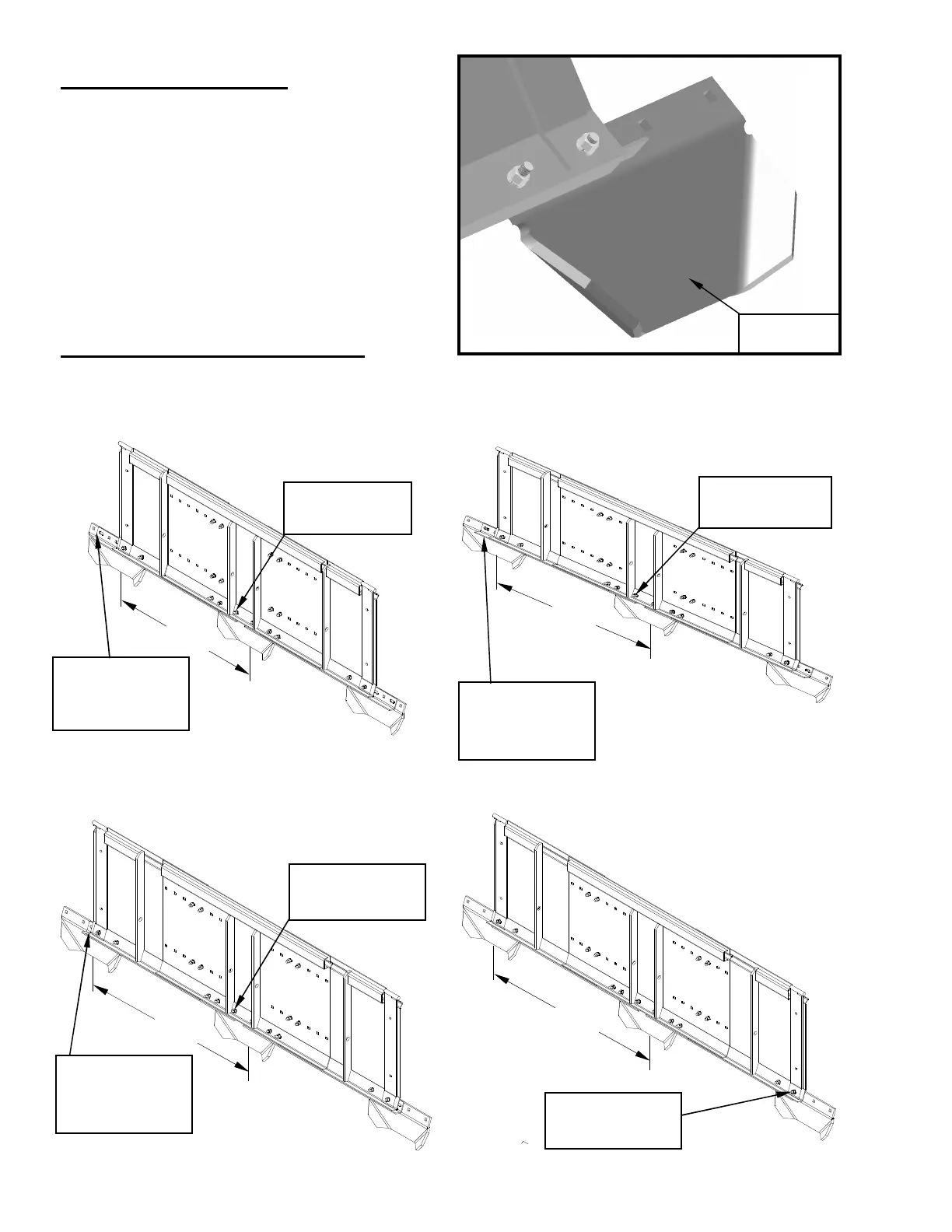

Bedder Door Shaper:
The Bedder Door Shaper (02-027-173) is bolted to the bot-
tom of the Bedder Door Assembly using 3/8 x 1 1/2 Car-
riage Bolts, lockwasher, and hexnuts.
Door Shaper
(02-027-173)
36” Row
Double Bedder Door Setups:
All double bed doors can be set up to the following row patterns using (30-40) DB Door Assembly (06-082-164) except for
the 48” Row Pattern that uses the (48) DB Door Assembly (06-082-184) & 46” Row Pattern that uses the (46) DB Door
Assembly (06-082-190).
32” Row
Cut off excess
shoe for mount
beside next door
34” Row
End slot in shoe
thru this bolt.
Cut off excess
shoe for mount
beside next door
30” Row
Cut off excess
shoe for mount
beside next door
End slot in shoe
thru this bolt.
End slot in shoe
thru this bolt.
End slot in shoe
thru this bolt.
30”
(TYP)
34”
(TYP)
32”
(TYP)
36”
(TYP)
