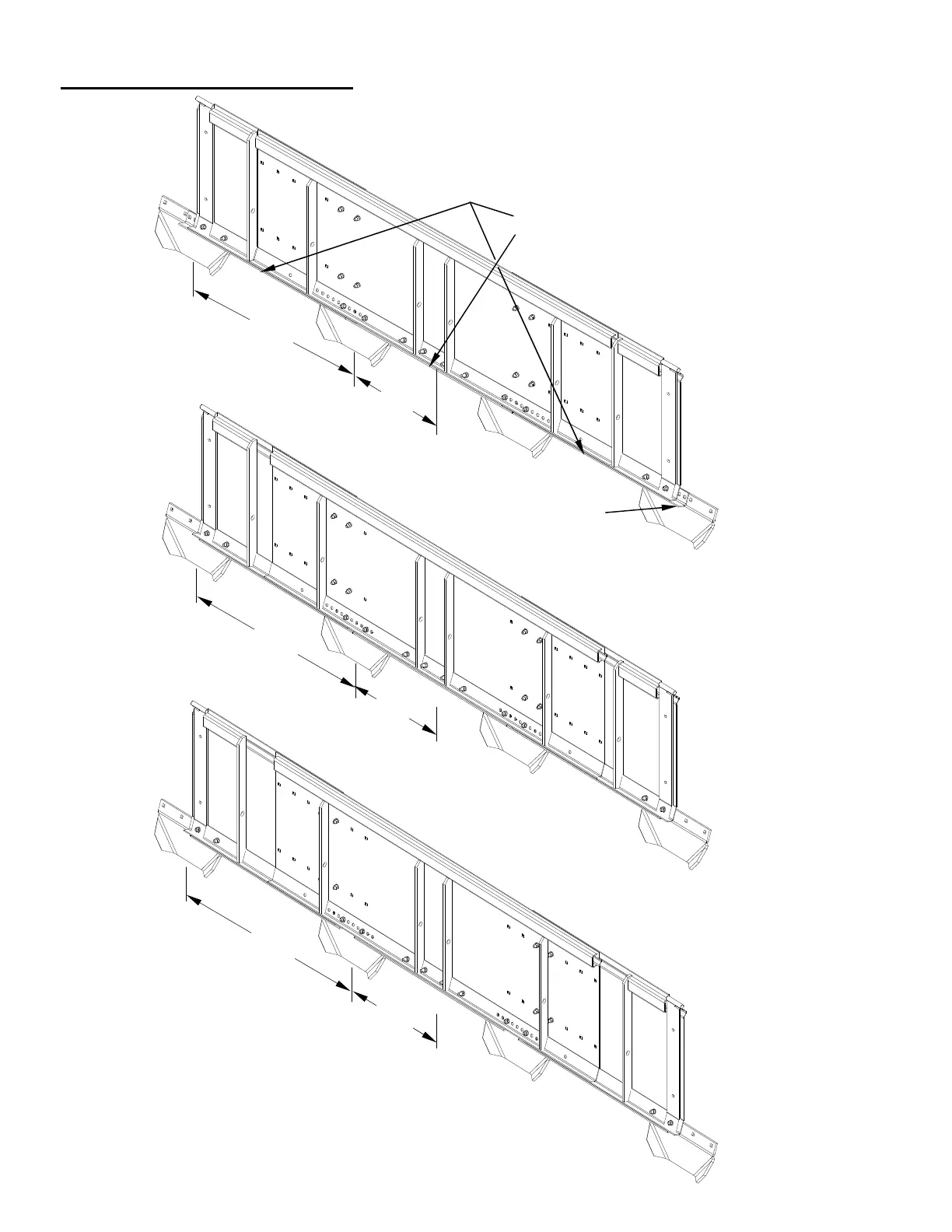

Triple Bedder Door Setups:
30” Row
32” Row
34” Row
The following Triple bed doors can be set up using
(30) TB Door Assembly (06-082-181)
Cut off excess
shoe for mount
beside next door
30” TB door uses
(2) 06-027-063 outer shoes
(1) 06-027-062 center shoe
15”
(TYP)
30”
(TYP)
C
L
C
L
16”
(TYP)
32”
(TYP)
C
L
17”
(TYP)
34”
(TYP)
