KMS Simplekey 4 - Lock Output Continued

Key Management Systems Ltd 35 | P a g e
Lock Output continued

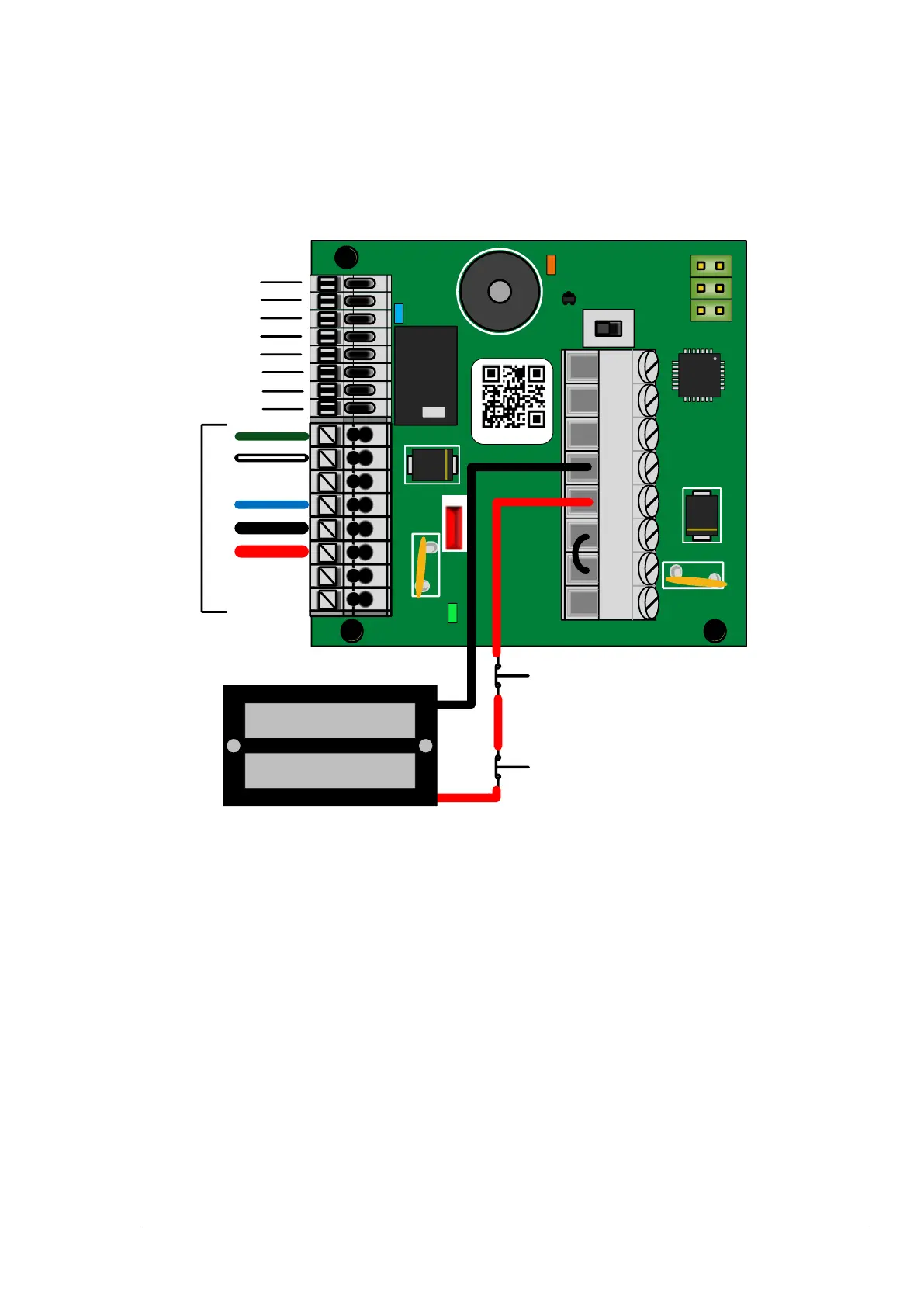

The wiring example below show the lock’s +12v output being wired directly through a
normally closed contact of the Request to Exit button and Fire Switch/emergency
break glass.
KMS BUS
DOOR
RTE
N/C
AUX1
AUX3
AUX2
N/O
COM
OM RON
G6E-134P
-ST-US
12VDC
Lock
02200009
1
2
3
4
5
6
7
8
En De
R.T.E
N/C
Fire
switch
N/C
