KMS Simplekey 4 - Basic System Wiring; System Wiring Overview

Key Management Systems Ltd 43 | P a g e
Basic System Wiring
System Wiring Overview

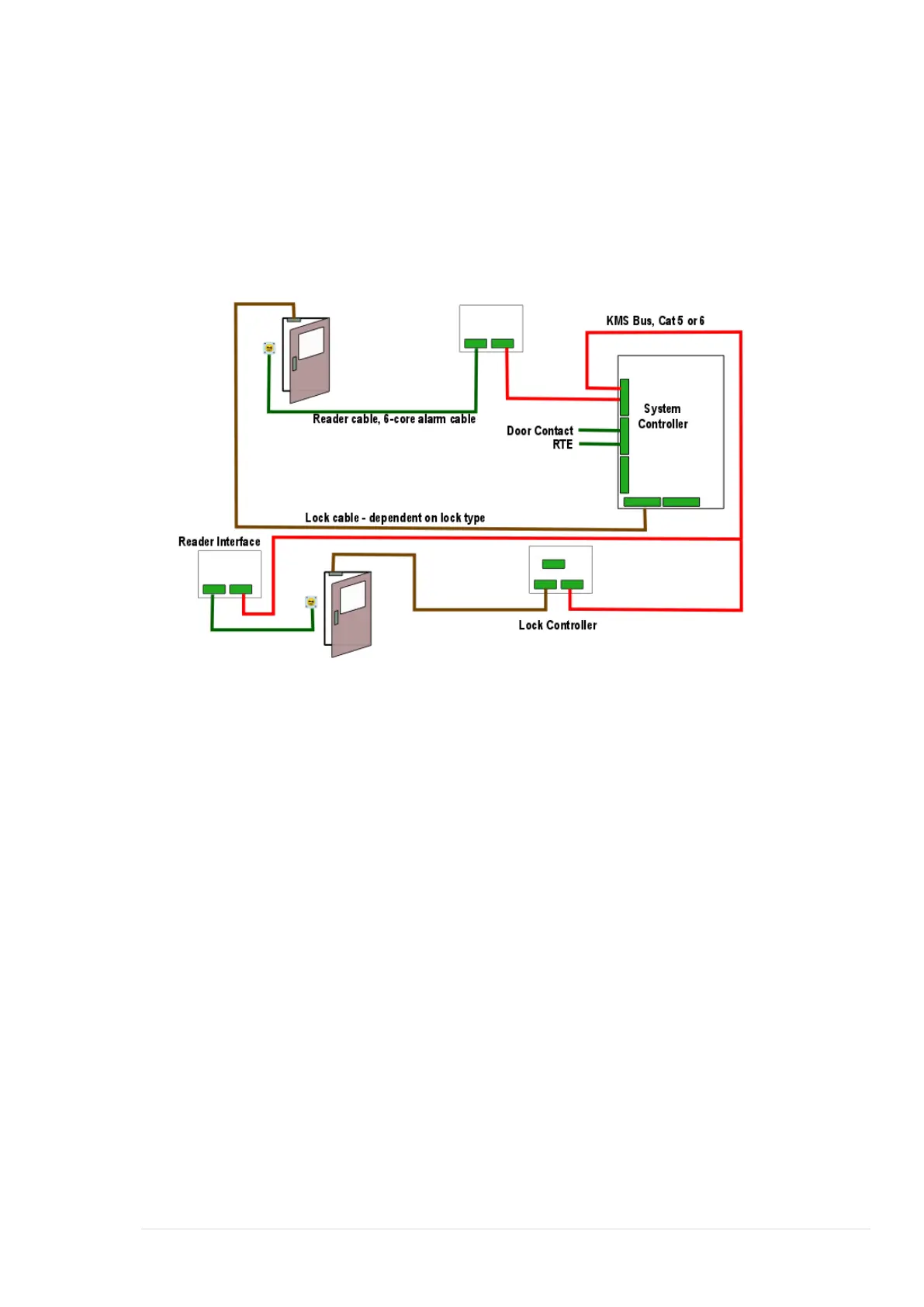

This figure shows a basic system setup showing all components.
The following diagrams breaks the connections into these blocks:
• Controller with Lock direct and via a Lock Controller
• Controller with Reader Interface / Reader
