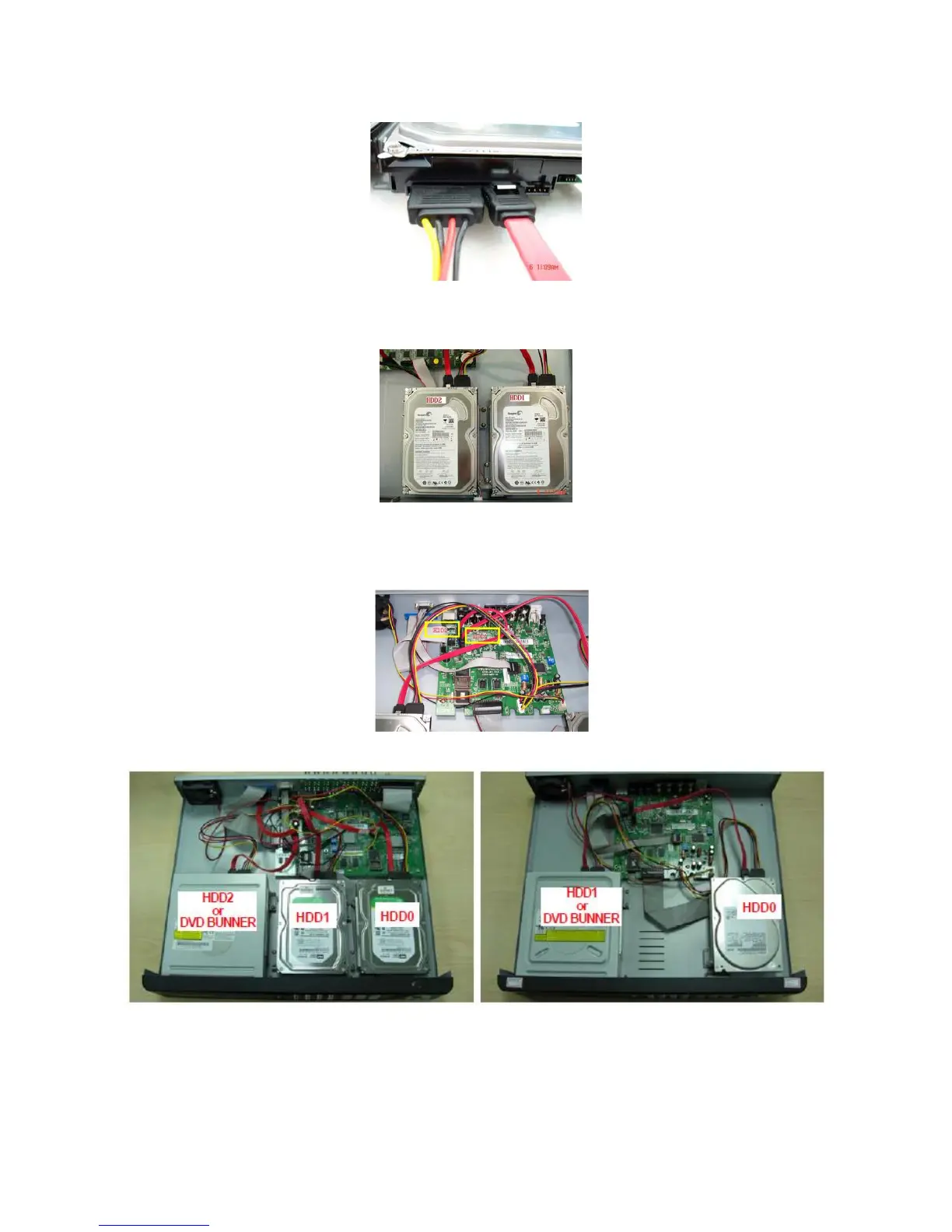

Insert the SATA cable and power cable onto the SATA HDD (Pic 4).
(Pic 4)
Lock the HDDs onto the DVR machine (Pic 5).
(PIC 5)
Insert the SATA cables into the sockets on the main board (Pic 6). Make sure that the
HDD1 cable has been properly inserted into HDD1 socket. Now, the installation has been completed (Pic7)
.
(Pi c 6)
(8/16CH DVR) (4CH DVR)
(Pi c 7)
