9

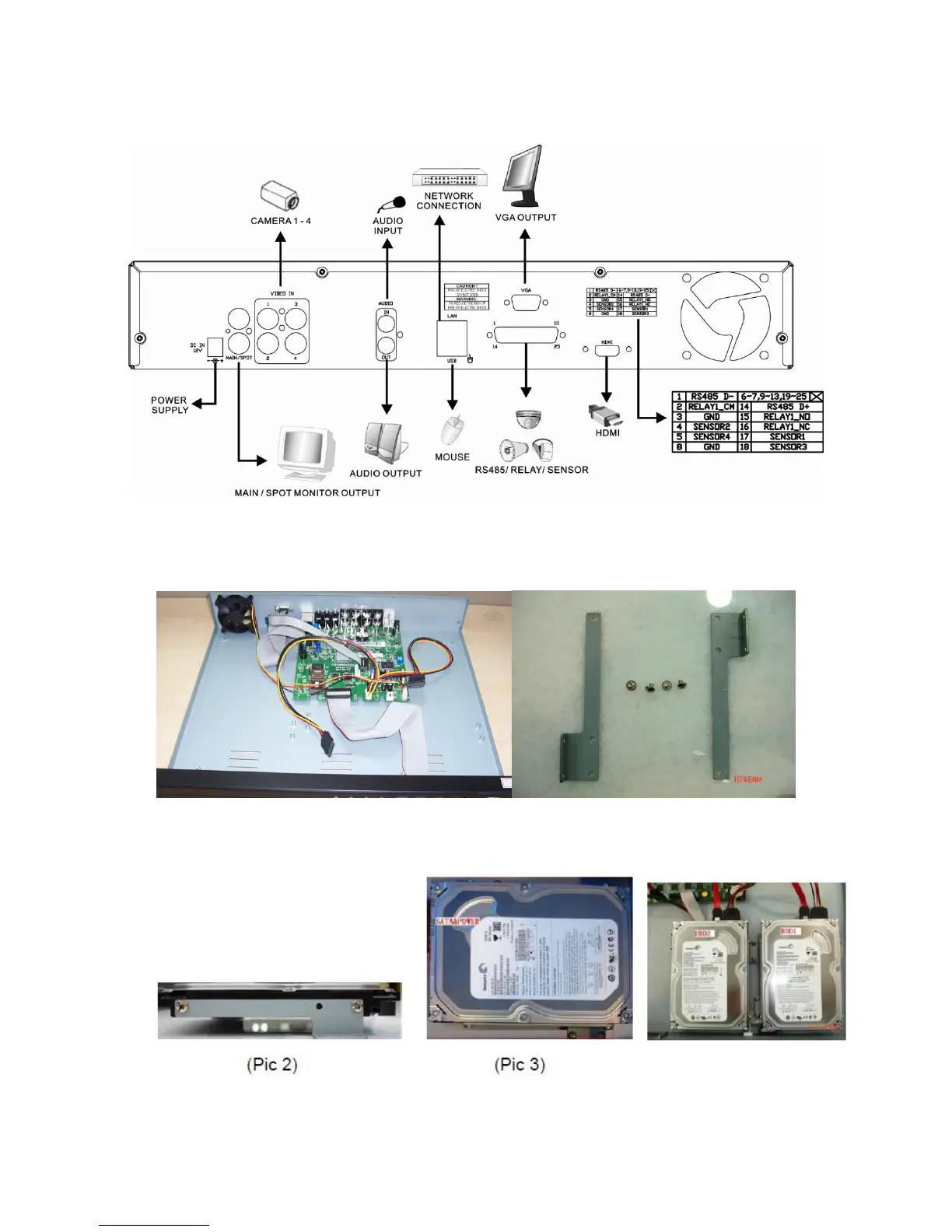

3.3 System Configuration – 4CH

3.4 Hard Disk Installation

First, remove the HDD holder from the DVR machine (Pic 1).

(PIC 1)

Lock the HDD holder symmetirically onto both sides of the HDD (Pic 2, Pic 3).
