KNF SC 920G - System Design and Functionality

Vacuum Pump System SC 920G Design and Function
Translation of original Operating Instructions, English, KNF 121308-121311 07/18 11
5. Design and Function
5.1. Vacuum pump system overwiew
1 Carrying handle
2
Hand terminal (removable;
signals transmitted
wirelessly)
3
Set screw of transport
fastener
4
High-performance
condenser
5
Gas ballast switch
6
Ventilation connection
7
Vacuum chamber
connection (gas inlet)
8
Hexagonal gland
9
Pump
10
Base
1
1 Flask clamp for 12
1
2 Suction-side condensation
collection flask (coated)
13
Mains switch
14
Hand terminal dock
15
Pressure-side condensa-
tion collection flask (coated)
16
Flask clamp for 15
1
7 Gas outlet
18
Pin of transport fastener
1
9 Coolant connection on
high-performance
condenser (feed)
20
Coolant connection on
high-performance
condenser (return)

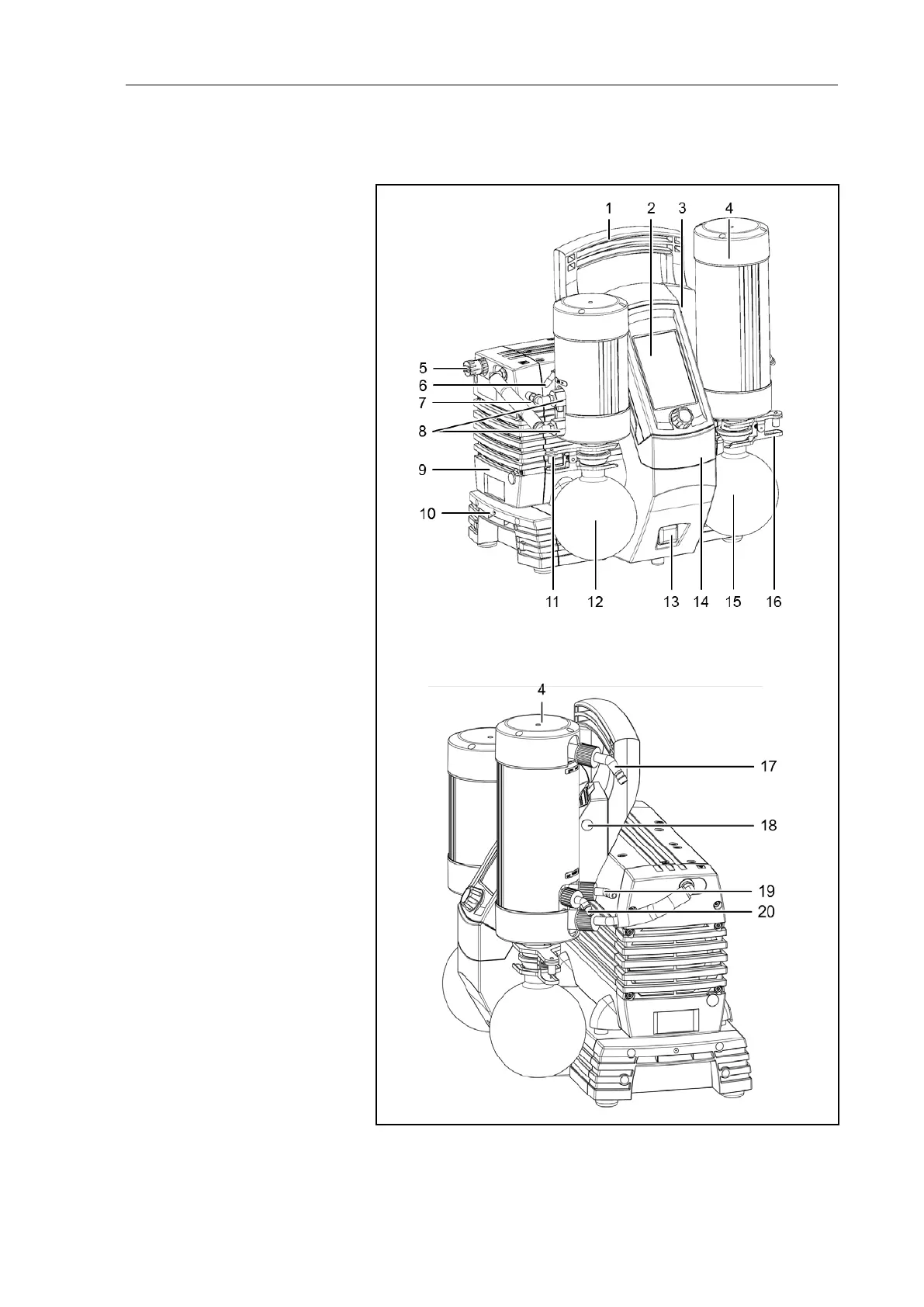

Fig. 2: Vacuum pump system SC 920G
