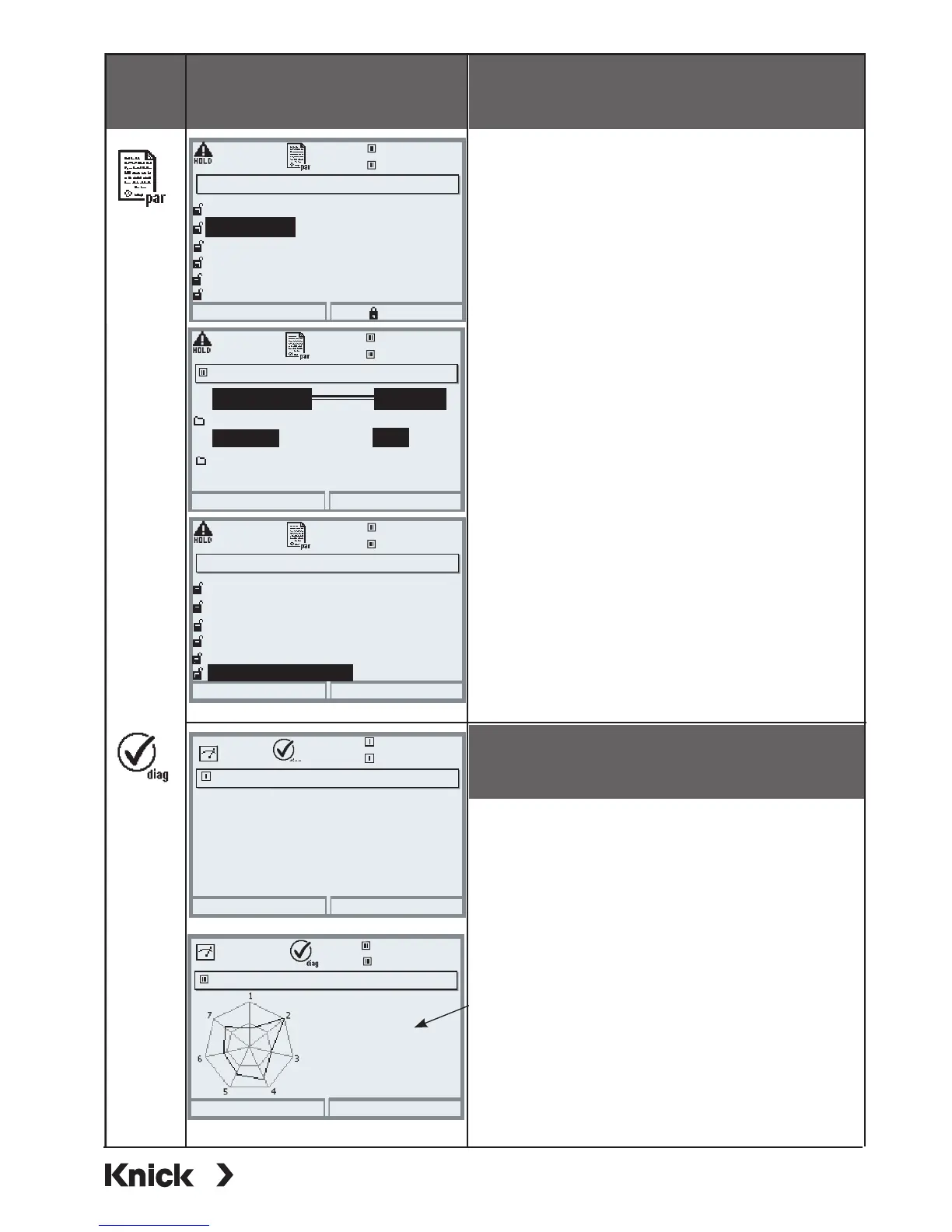

Menu Display Display Parameter settings: New
Sensor monitoring details (Administrator)
20.1 °C
Sensocheck Glass el
Zero point
ISFET leakage current
7.00pH
Response time
Sensocheck Ref el
Slope
Return
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
Module PH 3400-035 (Administrator)
20.1 °C
Return
TC process medium
Sensor data
Cal preset values
7.00pH
ORP/rH value
Delta function
Input filter
Parameter setting / Module
PH3400-035 / Sensor data
Sensor data are preset depending on
the sensor type.
Gray display lines cannot be edited.
Sensor data
Option 3400-012 allows
selecting “ISFET” as sensor type.
Sensor monitoring details
Monitoring of ISFET leak current is
provided.
Sensor monitor
Return
pH input
22.3 °C
ORP input
7.00 pH
Temperature
Impedance ref (25°C)
ISFET characteristic
43 mV
-109 mV
25.6 °C
322.8 kΩ
0.81 mA/V
RTD 1.100 kΩ
Sensor monitor
New: ISFET characteristic
Sensor network diagram PH
Return
24.1°C
7.00pH
2 - Zero point
1 - Slope
4 - ISFET leakage current
3 - Ref impedance
5 - Response time
7 - Sensor wear
6 - Cal timer
Sensor network diagram pH
New: ISFET leakage current
Diagnostics: New
Sensor data (Administrator)
20.1 °C
Abort
Sensoface
7.00pH
Temperature detection
Sensor type
Sensor monitoring details
OK
ISFET
(Pt100)
Off
On
Block
