Protos 3400(X)
Additional function SW 3400-104: Extended logbook
The extended logbook saves all entries in a file. The last 50 entries can be
displayed on the Protos. A new file is generated for each month. The date is
encoded in the file name.

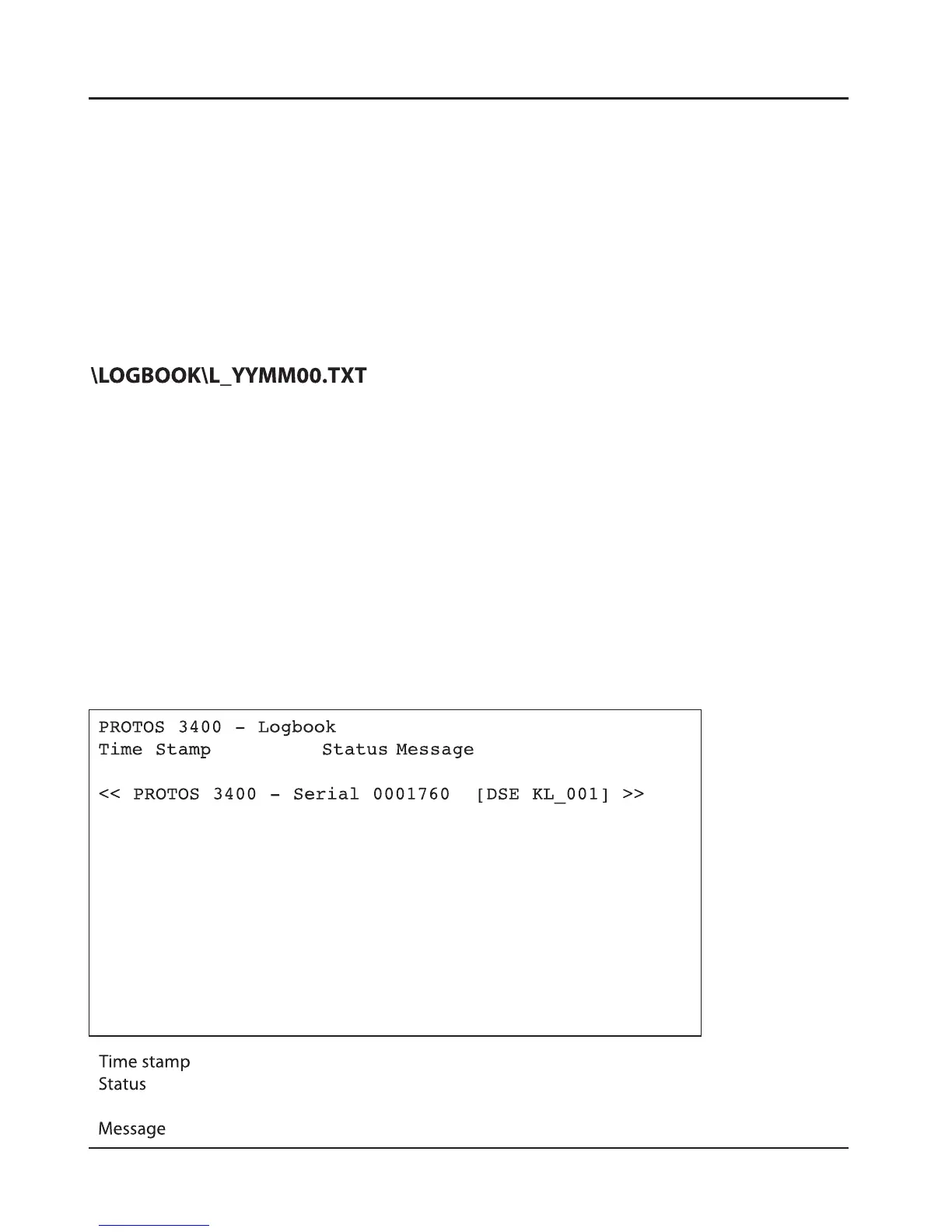

Example for a file generated on SmartMedia card:
Recorder data of YYMM
(YY = year, MM = month)
The data is recorded as ASCII file with the extension .TXT.
The individual columns are separated by tabs. This makes the file readable with
word processing or spreadsheet programs (e.g. Microsoft Excel).
Each time the memory card is inserted in the slot, a “Device Info” consisting of
Model number, BASE serial number and tag number is written.
Thus, a memory card can also be used to collect the logbook data of several
devices.
Example:
SW 3400-104: Extended Logbook
Parameter setting/System control/Logbook
11/21/09 19:08:43  PowersupplyOff
11/22/09 06:02:01  PowersupplyOn
11/22/09 06:09:27  Diagnosticsactive
11/22/09 06:09:36  Measurementactive
11/23/09 16:45:07 (x) FailcurrentI2>20mA
11/23/09 18:43:11  Parametersettingactive
11/23/09 18:47:38  Measurementactive
11/23/09 18:47:39 (x) FailcurrentI2>20mA
  :
  :
Time stamp of logbook entry
(x) - Message activated
( ) - Message deactivated
Message text (in selected operator language)
