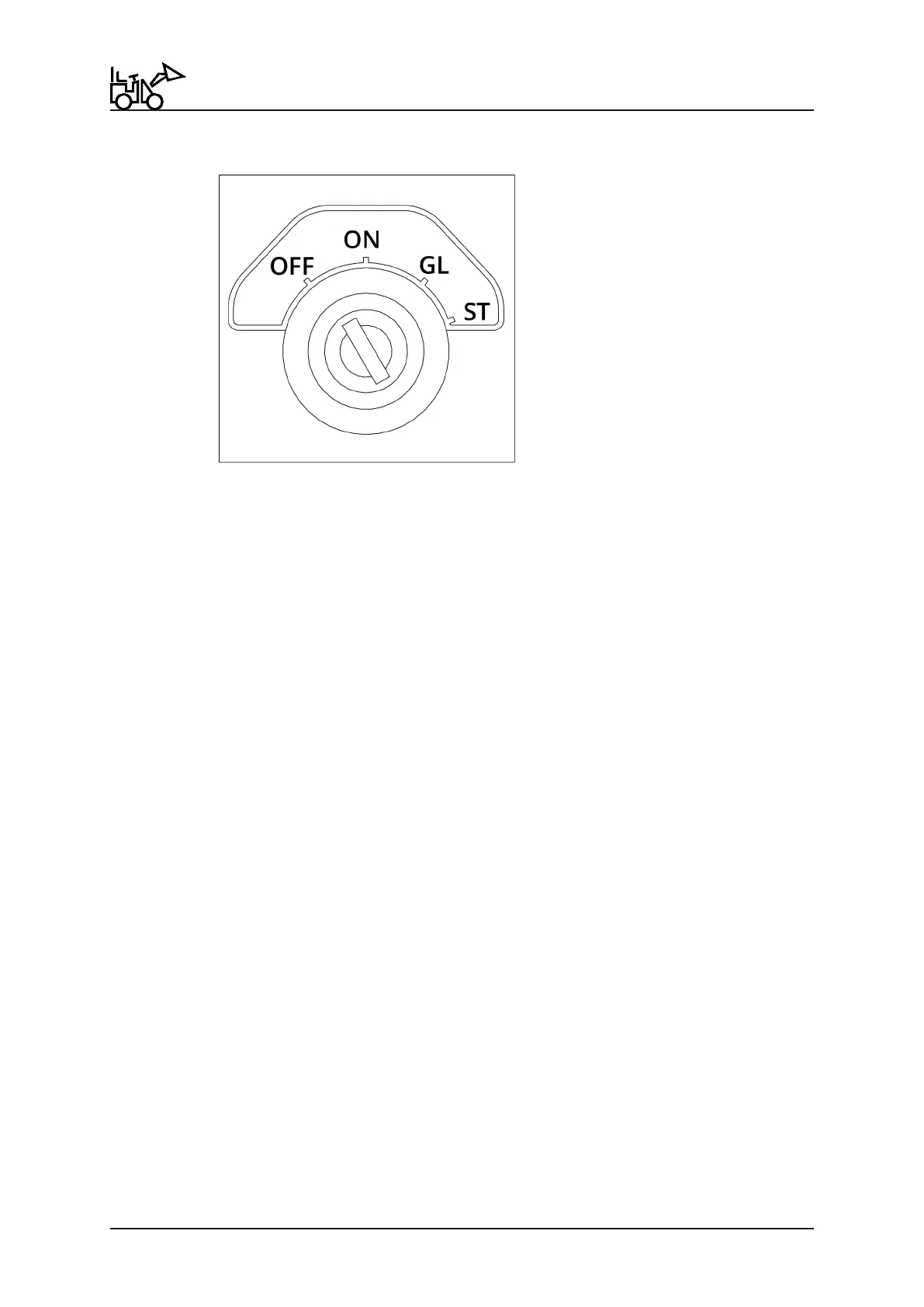

Figure 13: Kubota engine ignition
1 Bring the machine to a halt on a level surface, if possible.
2 Do one of the following:
- Lower the arm to the ground if no load is present.
- Place the load against the ground.
3 Pull the parking brake upward as far as it will go.
4 Put the following levers in the neutral position:
- VNA switch
- Arm lever
- Both levers for the hydraulic assistance functions
5 Move the key to the OFF position.
6 Remove and store the key.
6.3.2 Stopping a machine with a Yanmar engine
Proceed as follows to stop the machine.
Operating the machine
25
