Knikmops KM 80 - Coupling an Attachment; Releasing the Hydraulic Pressure; Coupling with a Manually Operated Locking Pin

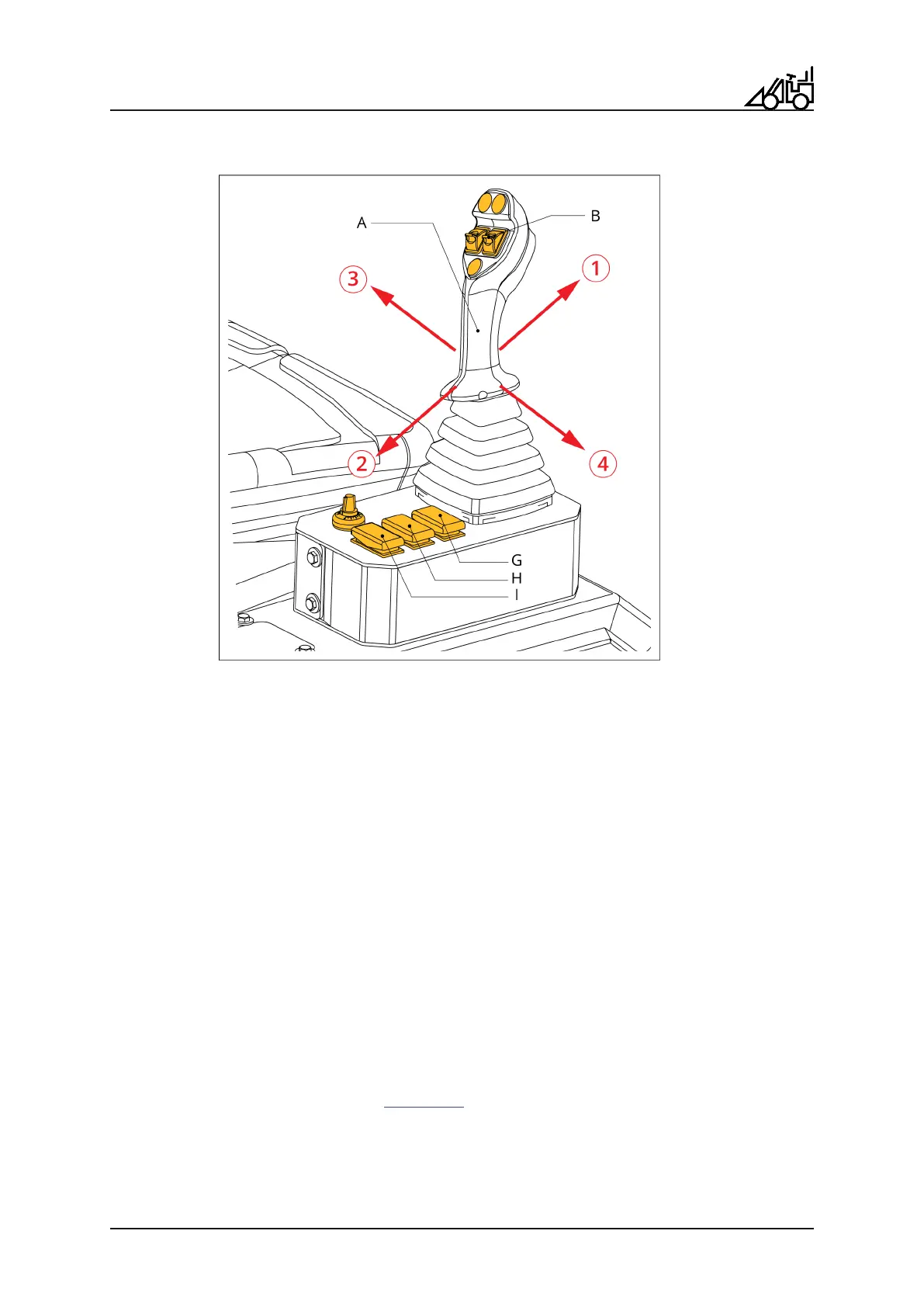

Figure 22: Operating the arm – eHC version
1 Push the arm lever (A) forward (1) to lower the arm.
2 Pull the arm lever (A) backward (2) to raise the arm.
3 Pull the arm lever (A) to the left (3) to tilt the connector plate backward.
4 Push the arm lever (A) to the right (4) to tilt the connector plate forward.
5 Move the telescope button (B) upward to extend the arm.
6 Move the telescope button (B) downward to retract the arm.
6.6 Coupling an attachment
6.6.1 Releasing the hydraulic pressure
1 Turn the key to the OFF position to switch the engine off.
2 Move the levers for the hydraulic assistance function to the left and right once.
6.6.2 Coupling with a manually operated locking pin
Start by releasing the hydraulic pressure. For more information, see Releasing
the hydraulic pressure on page 36. In addition, ensure that the hydraulic fast
attachments are clean.
