10.5.3 Opening the engine compartment – type 3
Engine compartment type 3 is an obsolete model and is no longer in
production.

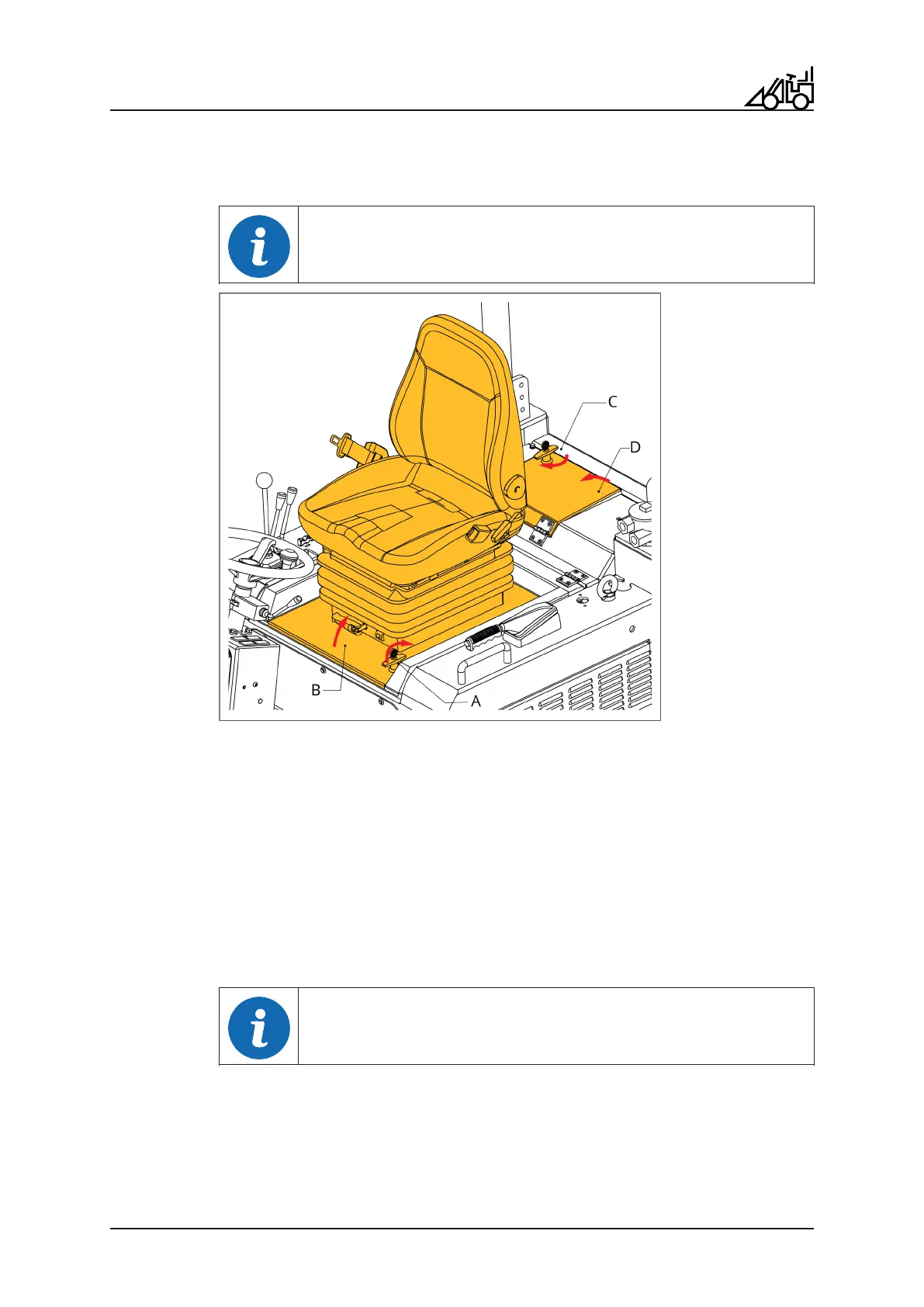

Figure 38: Opening the engine compartment – type 3 eHC version
1 Set the lever (A) to the horizontal position.
2 Open the cover, including the operator's seat (B).
3 Set the lever (C) to the horizontal position.
4 Open the cover (D).
10.6 Cleaning the cyclone filter
The cyclone filter is located at the rear of the machine and filters coarse dust from
the air before it reaches the air filter.
Not all machines have a cyclone filter.
