Knikmops KM 80 - Opening the Engine Compartment - Type 2

10.5.2 Opening the engine compartment – type 2

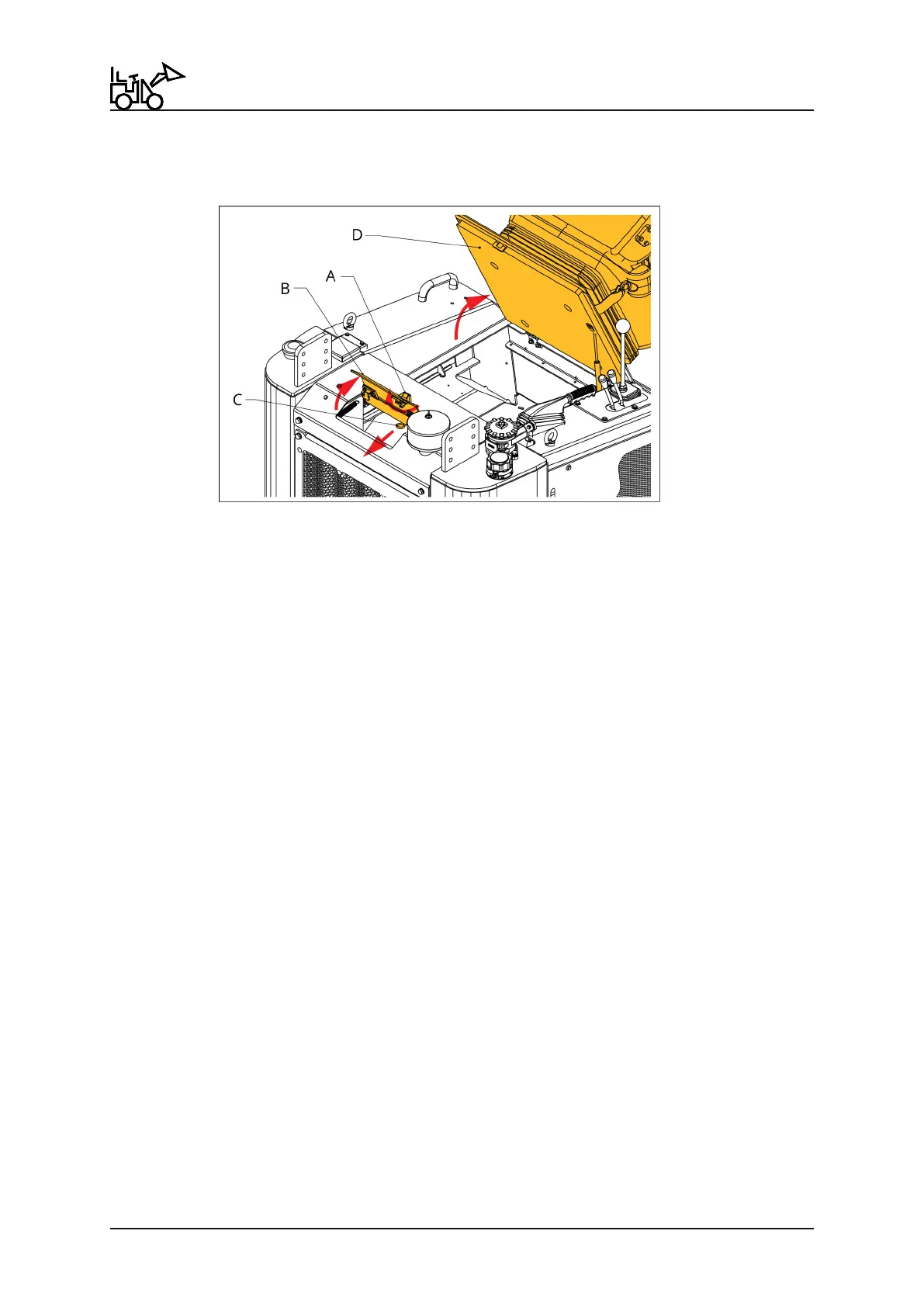

Figure 37: Opening the engine compartment – type 2 TE version
1 Set the lever (A) to the horizontal position.
2 Open the cover (B).
3 Pull the lever (C) and open the cover, including the operator's seat (D).
Maintaining the machine
63
