Knikmops KM 80 - Removing the Articulation Lock

6.11.2 Removing the articulation lock

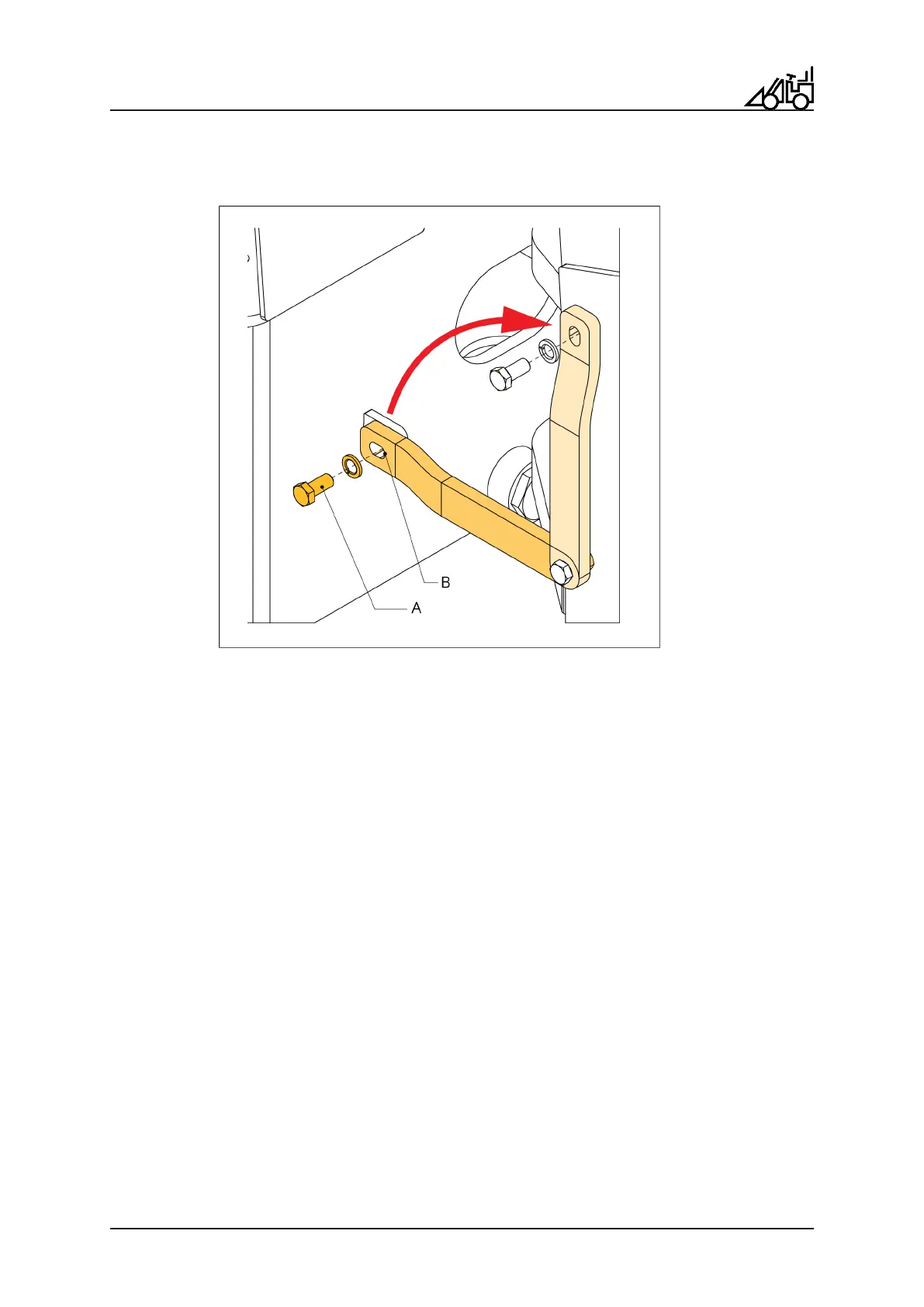

Figure 31: Removing the articulation lock
1 Remove the bolt (A).
2 Turn the articulation lock (B) toward the front of the machine.
3 Use the bolt (A) to refit the articulation lock to the machine.
Operating the machine
48
