14.2 Machine dimensions

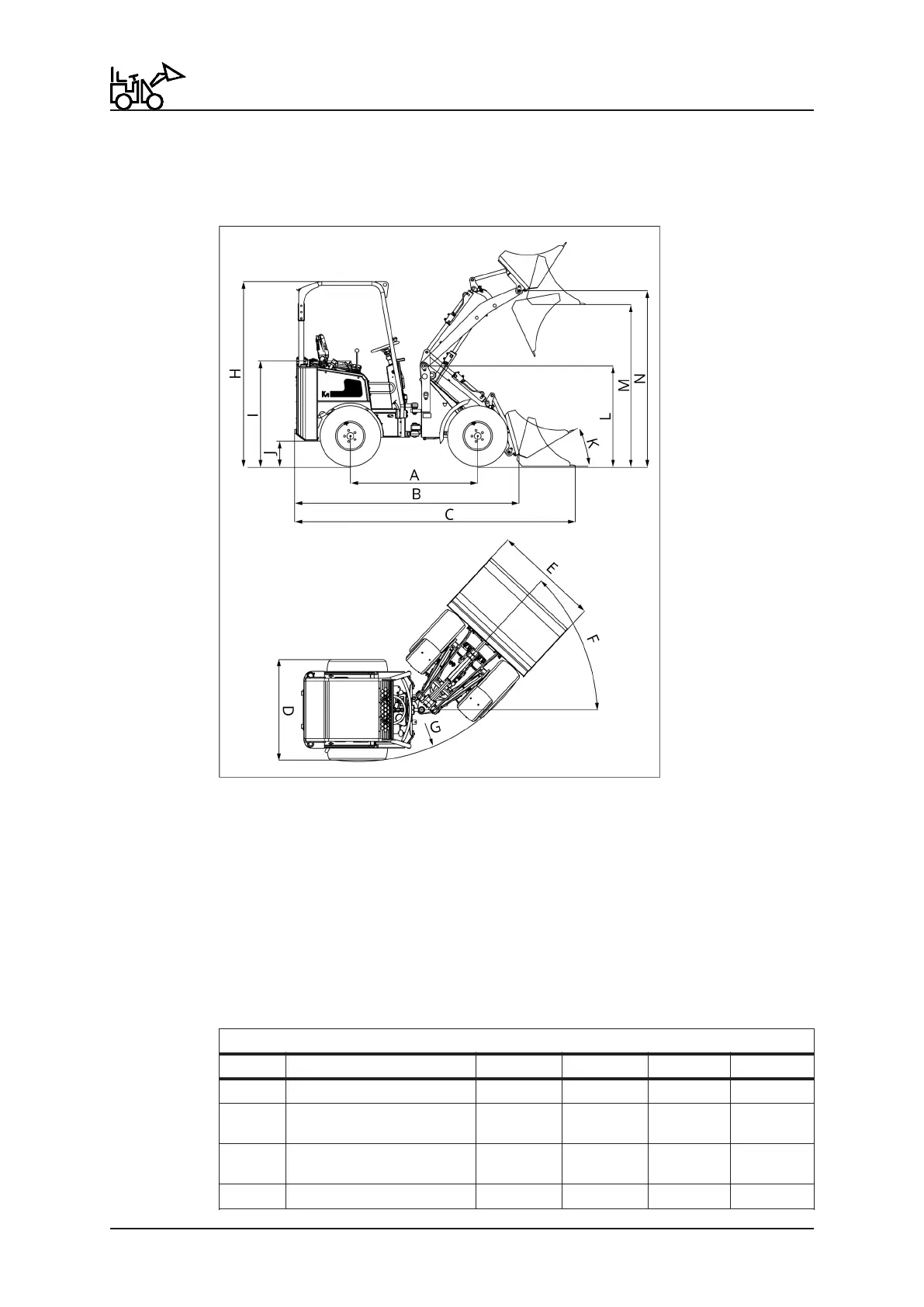

Figure 56: Machine dimensions
A Wheelbase H Rollbar height/ROPS FOPS height
B Total length without shovel bucket I Seat height
C Total length with shovel bucket J Ground clearance
D Overall width K Tipping-in angle from ground surface
E Width L Arm hinge height
F Maximum turning angle M Transfer height
G Turning radius outside edge N Connector plate hinge maximum height
Dimensions
Position Parameter KM80 KM85 KM90 KM100
A Wheelbase (mm) 1,415 1,415 1,445 1,445
B
Total length without shovel
bucket (mm)
2,360 2,360 2,400 2,400
C
Total length with shovel bucket
(mm)
2,935 2,935 2,940 2,940
D Overall width (mm) 750/1,020 750/1,020 930/1,180 930/1,180
Technical specification
89
