Step 1: Pull the handle back and upwards to unlock the second form-t locking of
the stabilising coupling head
Step 2: Pull the handle up, to the stop
Hold the handle and raise the trailer drawbar using the jockey wheel in order to
raise the stabilising coupling head from the towball of the towing vehicle.
When not in use for a longer period of time, the coupling head should be closed.
To do this, insert the KSB50 (SafetyBall KSB50 is available separately) safety ball
into the coupling head and push upwards until the stabilising coupling head closes
automatically. Then push the hand lever downwards.
CAUTION – Risk of crushing:
Do not reach into the open stabilising coupling head with your ngers.
The spring-loaded closing mechanism could trigger, resulting in injury to
your ngers
Move the trailer by using the handles on the body to manoeuvre it manually.
DO NOT use the hand lever of the stabilising coupling head to manoeuvre the
trailer.

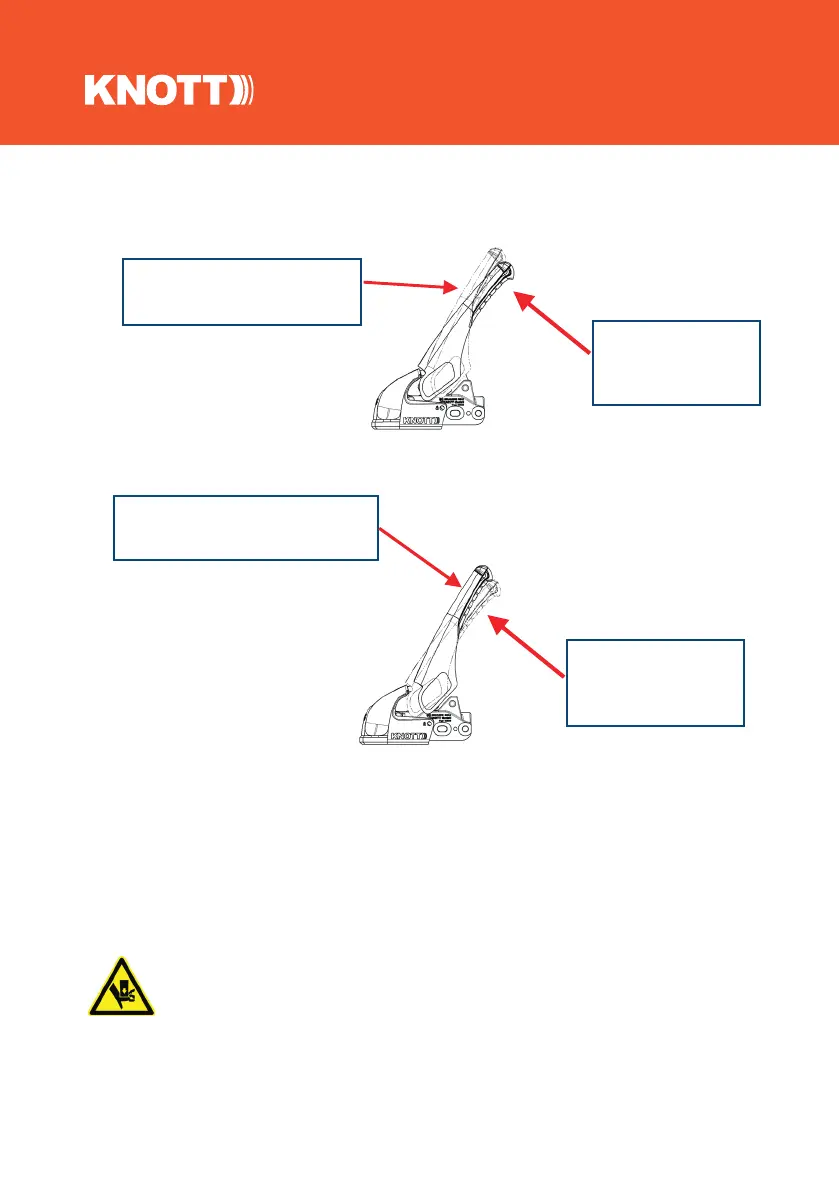

Closed,
stabilisation deactivated
Stabilising
coupling head
unlocked
Stabilising
coupling head
unlocked
Stabilising coupling head
fully opened
