15

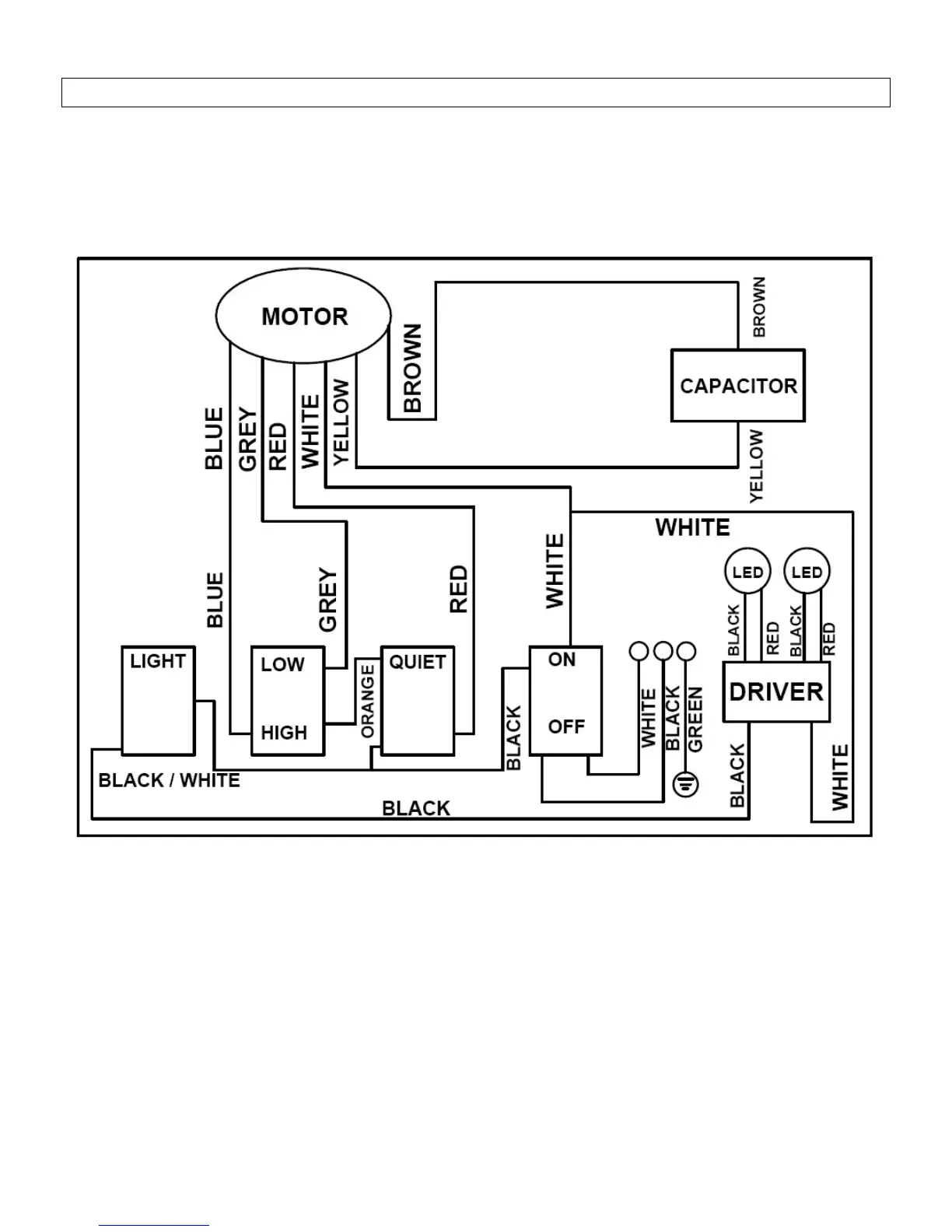

CIRCUIT DIAGRAM
Model No.:
CHX8130SQB
-
1 (30”)
CHX8130SQB-DC30-1 (30”)
CHX8136SQB-DC46-1 (30”)
CHX8136SQB
-
1 (36”)
CHX8136SQB-DC30-1 (36”)
CHX8136SQB-DC46-1 (36”)
