Extension module
English
7.5 Connecting an extension module to the Energy storage solution
Disconnect the Energy storage solution from the DC link.
(
Page 28, "Disconnecting the Energy storage solution").

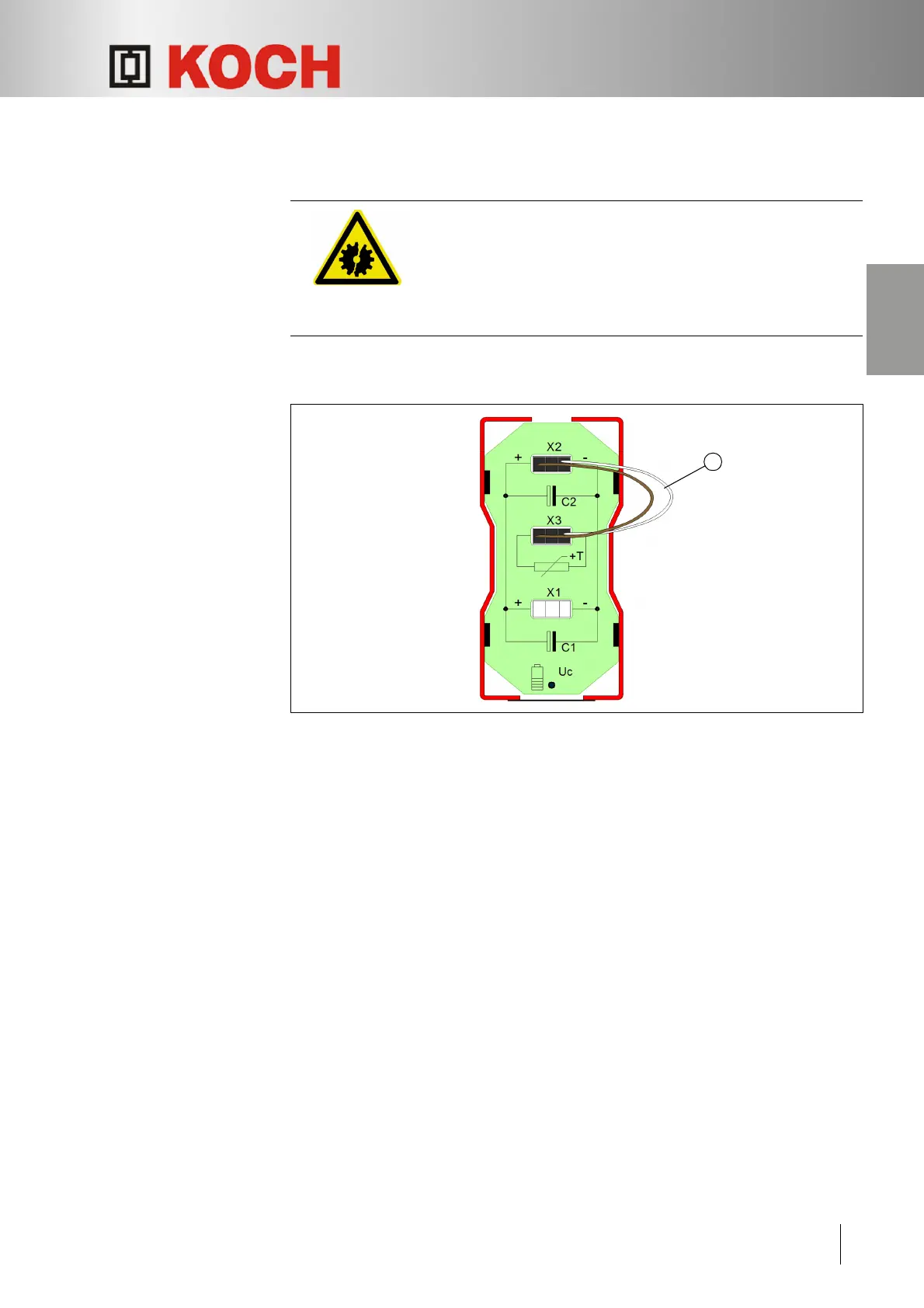

Fig. 17: Discharging the extension module (top side of the housing)
On the extension module, insert the supplied connecting cable q into X2 and X3
and wait for approximately 30 seconds.
The extension module will be discharged.
There is a risk of damage.
A Energy storage solution which is connected to the DC link can
destroy the extension module.
Before connecting an extension module, detach the Energy
storage solution from the DC link (
Page 28, "Disconnecting
the Energy storage solution").
