7.6 Connecting an additional extension module

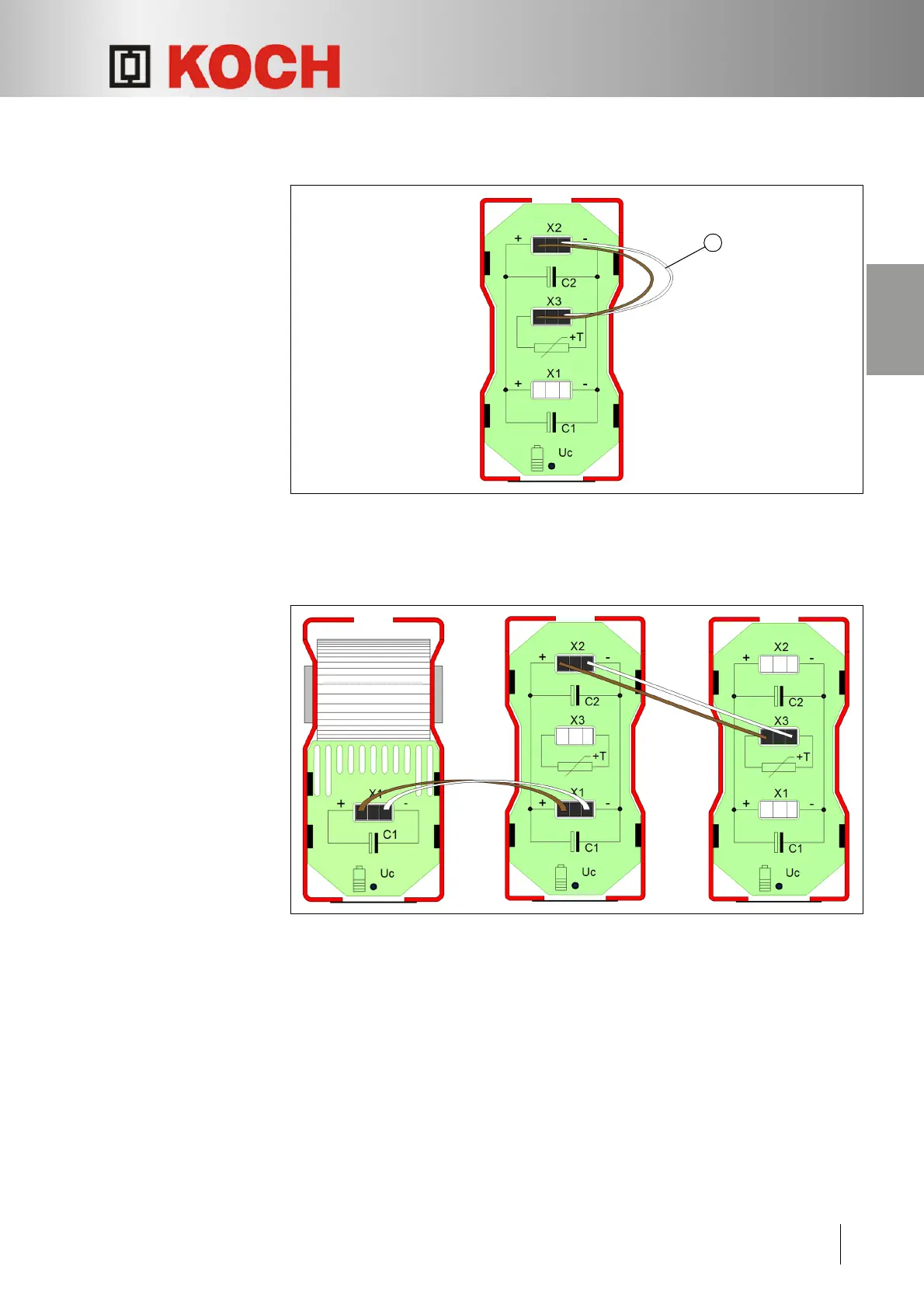

Fig. 20: Discharging extension module 2 (top side of the housing)
On extension module 2, insert the supplied connecting cable q into X2 and X3 and
wait for approximately 30 seconds.
Extension module 2 will be discharged.
Fig. 21: Discharging extension module 1 (top side of the housing)
On extension module 2, undo the connector from X2, insert it into X2 on extension
module 1 and wait for approx. 30 seconds.
Extension module 1 will be discharged.
