Operation

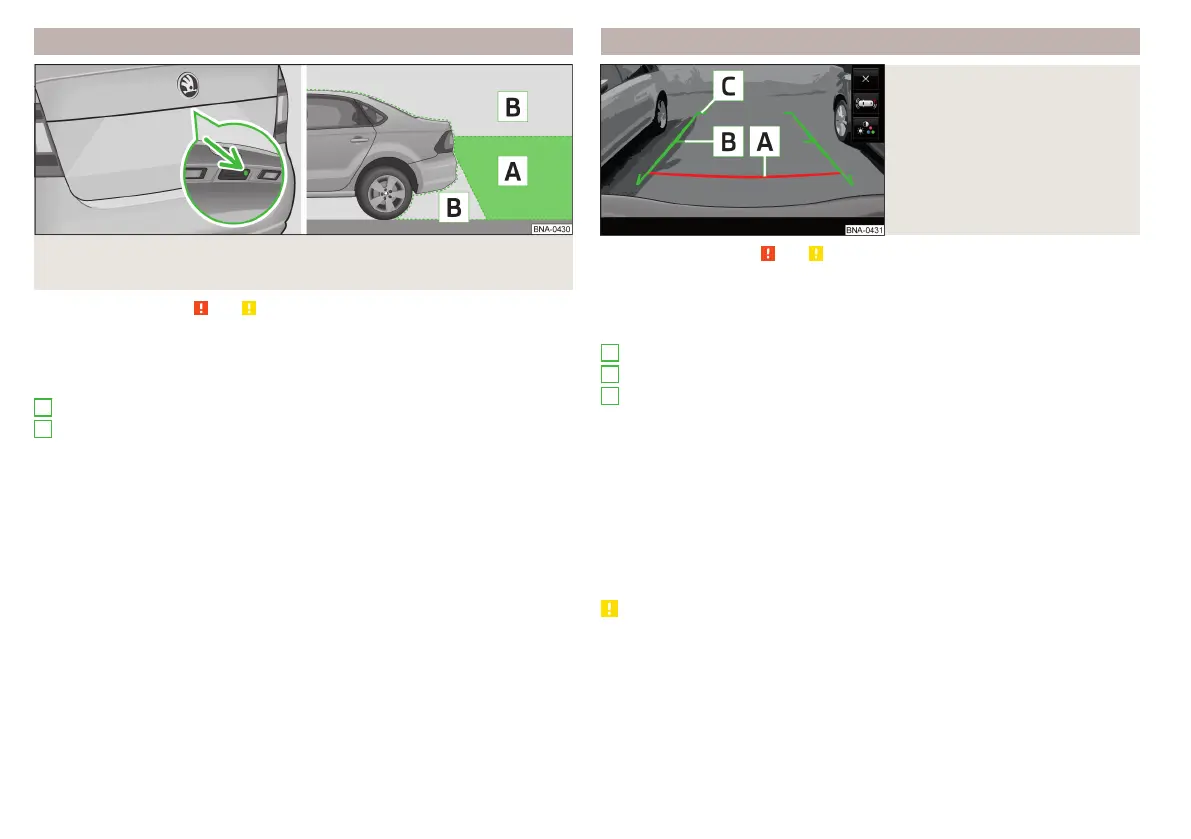

Fig. 70 Installation location of the camera / scanned area behind the ve-
hicle
Read and observe
and on page 63 first.
The camera for capturing the area behind the vehicle is in the grip of the boot
lid.
Area behind the vehicle » fig. 70
Detection range of the camera
Area outside the detection range of the camera
The system can assist the driver when parking and manoeuvring under the fol-
lowing basic conditions.
The ignition is switched on.
Reverse gear is engaged.
The boot lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.
A
B
Guidelines and function surfaces
Fig. 71
Infotainment screen: Guidelines
and function surfaces
Read and observe and on page 63 first.
Orientation lines are shown along with the monitored area behind the vehicle
on the screen.
Distance of the orientation lines behind the vehicle » fig. 71
The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.
The distance may vary slightly depending on the load of the vehicle and the
road inclination.
The distance between the side lines corresponds approximately to the vehicle
width, including mirrors.
Function surfaces » fig. 71
Exits the display of the area behind the vehicle
Change to park assistance display
Screen settings - brightness, contrast, colour
CAUTION
The objects shown on the screen may be closer or further away than they ap-
pear. This is especially the case in the following situations.
■
Protruding objects, such as the rear of a truck and the like.
■
When driving from a horizontal surface into a slope or a depression.
■
When driving from a slope or a depression onto a horizontal surface.
A
B
C
64
Driving
