Clearing the
document path
There are four (4) areas in the transport system
where documents may become lodged:
A Feeder Area
B Horizontal Transport Plate, Lower Belt Module,
and Lower Turn Roller Areas
C Vertical Transport Plate and Imaging Guide Areas
D Document Exit and Upper Turn Roller Areas
• Check each transport area, in turn (Area A through
Area D), for documents lodged in the document
path.
You only have to remove the jammed document(s).
The jog feature places the rest of the documents in
the exit hopper.
NOTE: Make certain that all operator accessible
areas (designated by green labels) are firmly
closed and all baffle plates are locked into
place.
• Press and hold down the JOG key to clear any
remaining documents.
• Collect the documents located in the transport
system. Put them back into their original order, if
necessary.
• Reset the Image Address, Level, etc., if necessary.
• Refeed the documents.
If an error code appears in the Status Display,
check each transport area again to make certain
that all documents have been cleared.

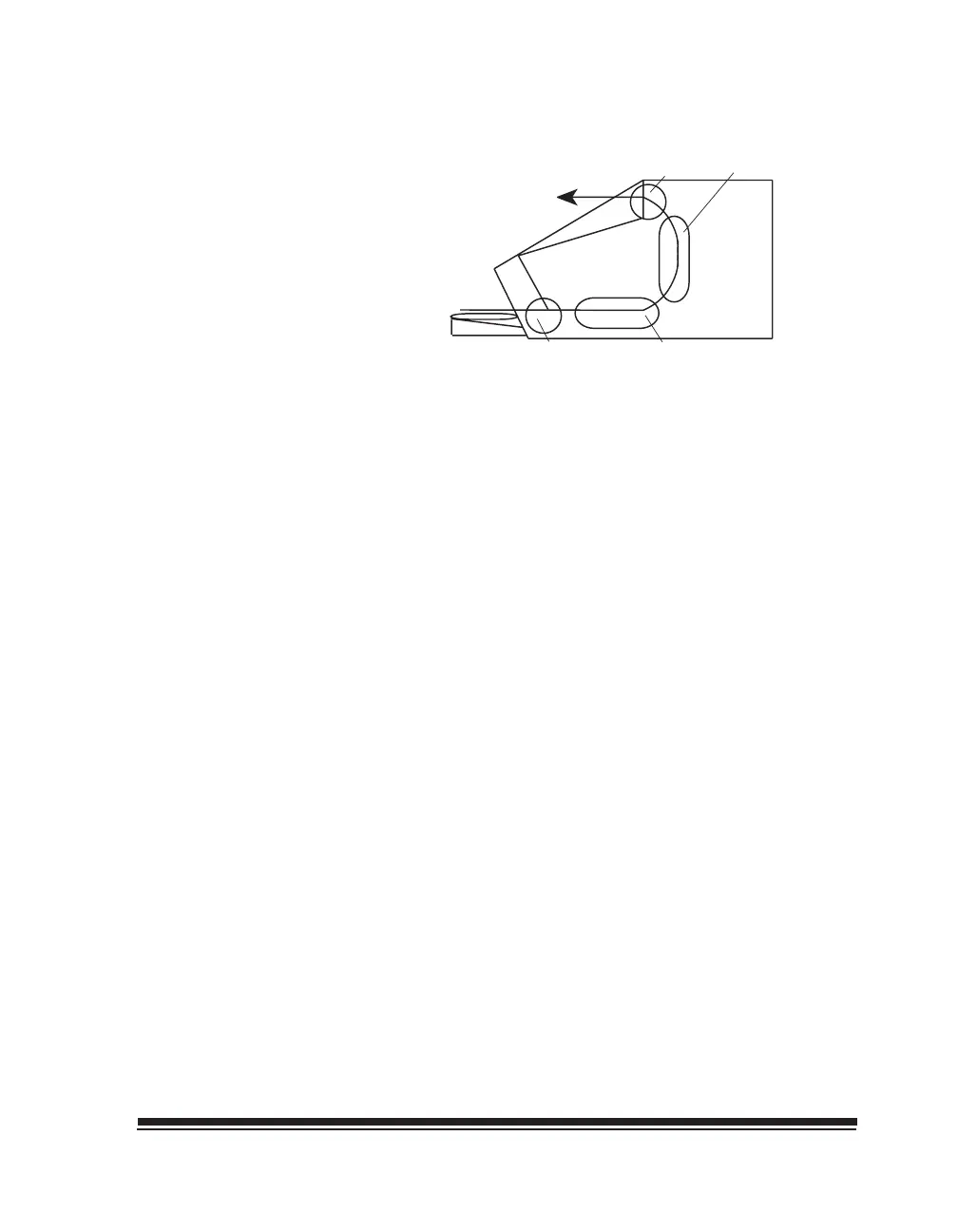

Paper Path
AB
C
D
Document path
