Kodak BC4401 - Carousel 4400 Projector User Manual

Illustrated Parts List
IP5440-1 – 11DEC03 15

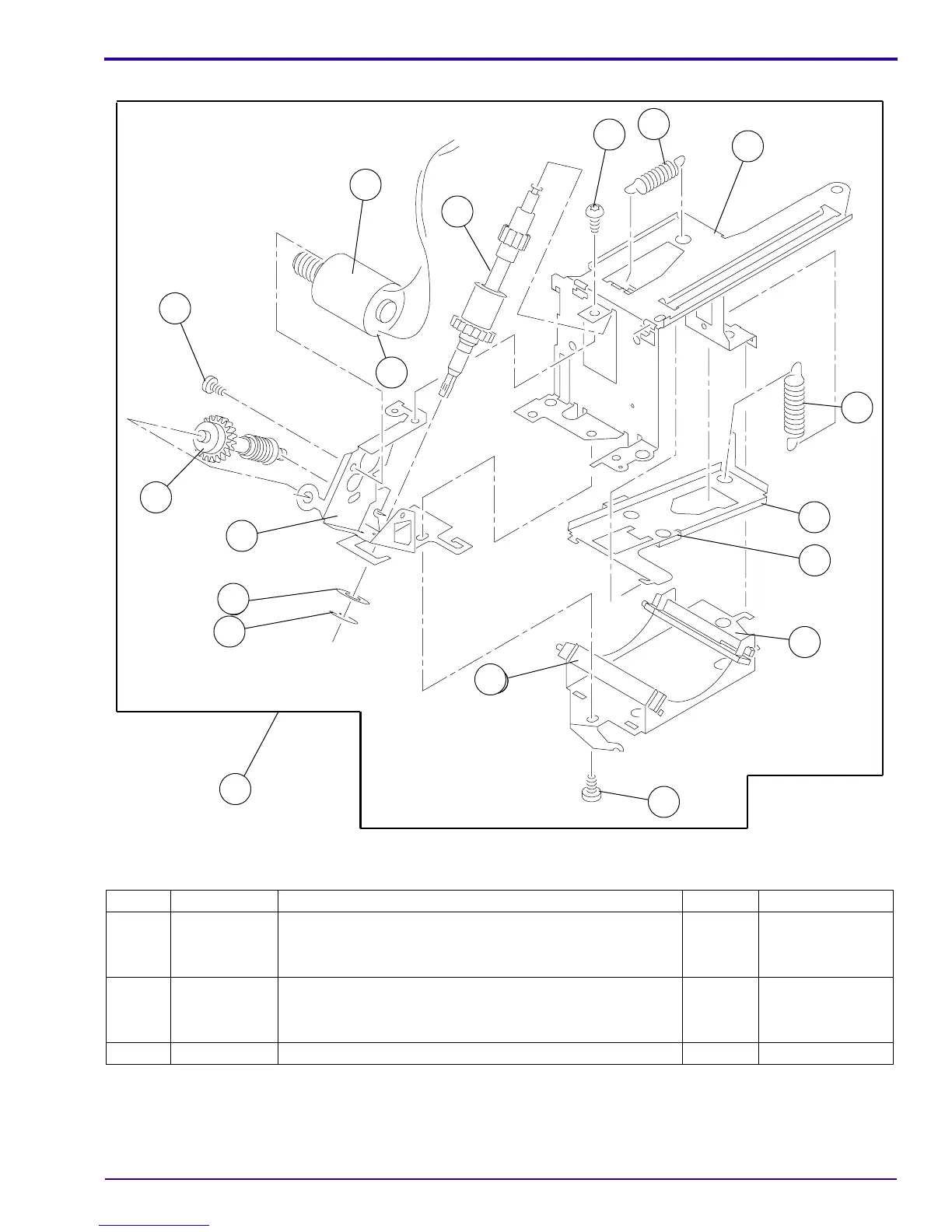

Figure 8 LENS MOUNT AY for the NON-AUTO FOCUS PROJECTORS
Figure 8 LENS MOUNT AY for the NON-AUTO FOCUS PROJECTORS
Item Part No. Description Quantity Notes
1 231788 SPRING - focus shaft
8 1
2 226702 SPRING - lens mount
8 1
3 231787 BRACKET - lens support
8 1
4 231783 PAD - lens mount
8 1
5 207279 BRACKET
8 1
6 6C1825 SCREW
8 1
7 226084 RAIL - lens support
8 2
A091_0003DA
A091_0003DCA
18
2
1
16
4
3
5
6
15
13
14
12
9
8
17
10
11
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
