Kodak BC4401 - Carousel 4400 Projector - MOUNT MIRROR and VIEWER DRAWER

ILLUSTRATED PARTS LIST
6 11DEC03 – IP5440-1

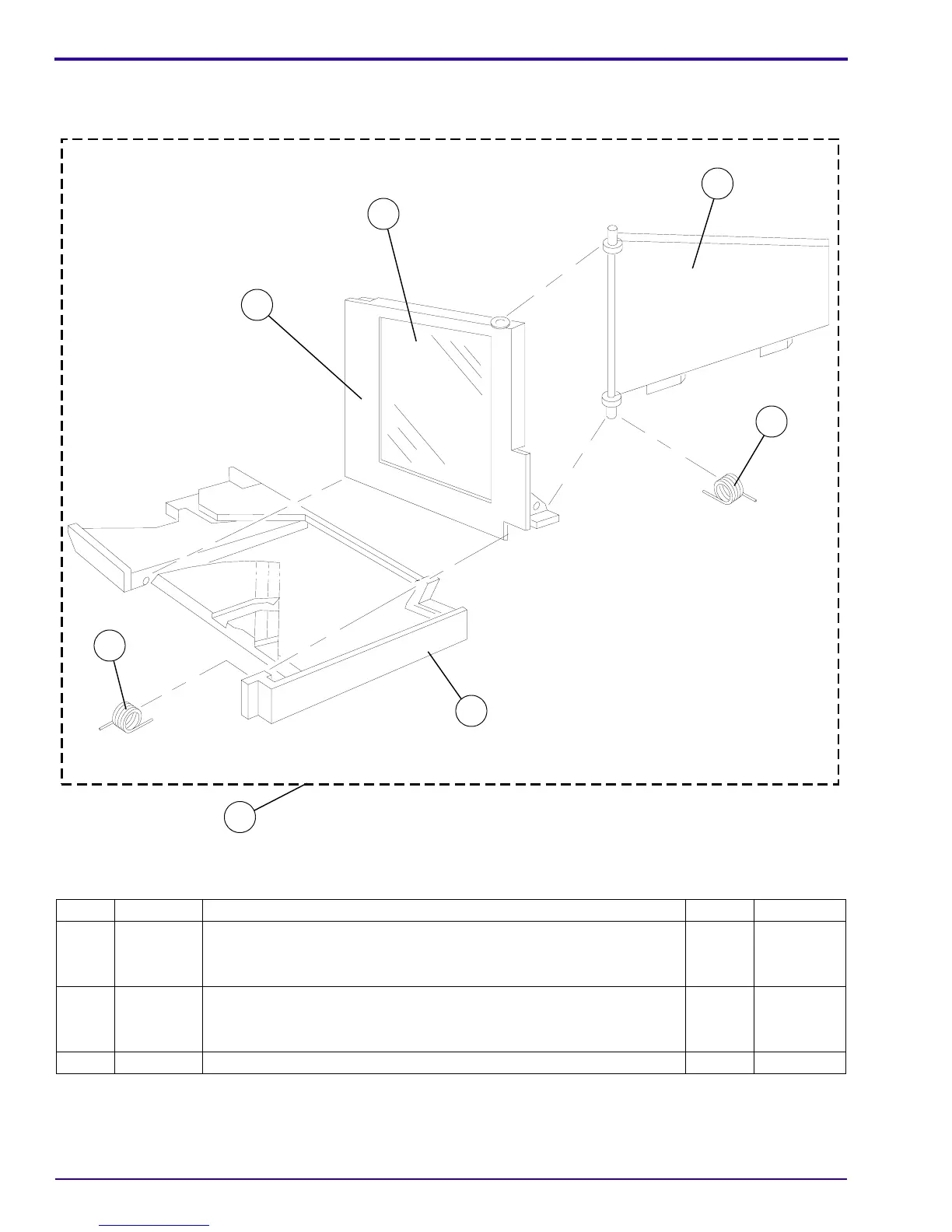

Figure 3 MOUNT MIRROR and VIEWER DRAWER
Figure 3 MOUNT MIRROR and VIEWER DRAWER
Item Part No. Description Quantity Notes
1 5B4641 MIRROR - mount, 5600, 5600-J, 5600-KK projectors
3 1
2 221054 SPRING
3 1
3 5B4644 DRAWER AY - viewer, 5600, 5600-J, 5600-KK, medalist I projectors
3 1
4 221053 SPRING
3 1
5 5B4642 SCREEN - frame, 5600, 5600-J, 5600-KK projectors
3 1
6 221014 SCREEN
3 1
7 221018 DRAWER - viewer
3 1
