ILLUSTRATED PARTS LIST
28 11DEC03 – IP5440-1

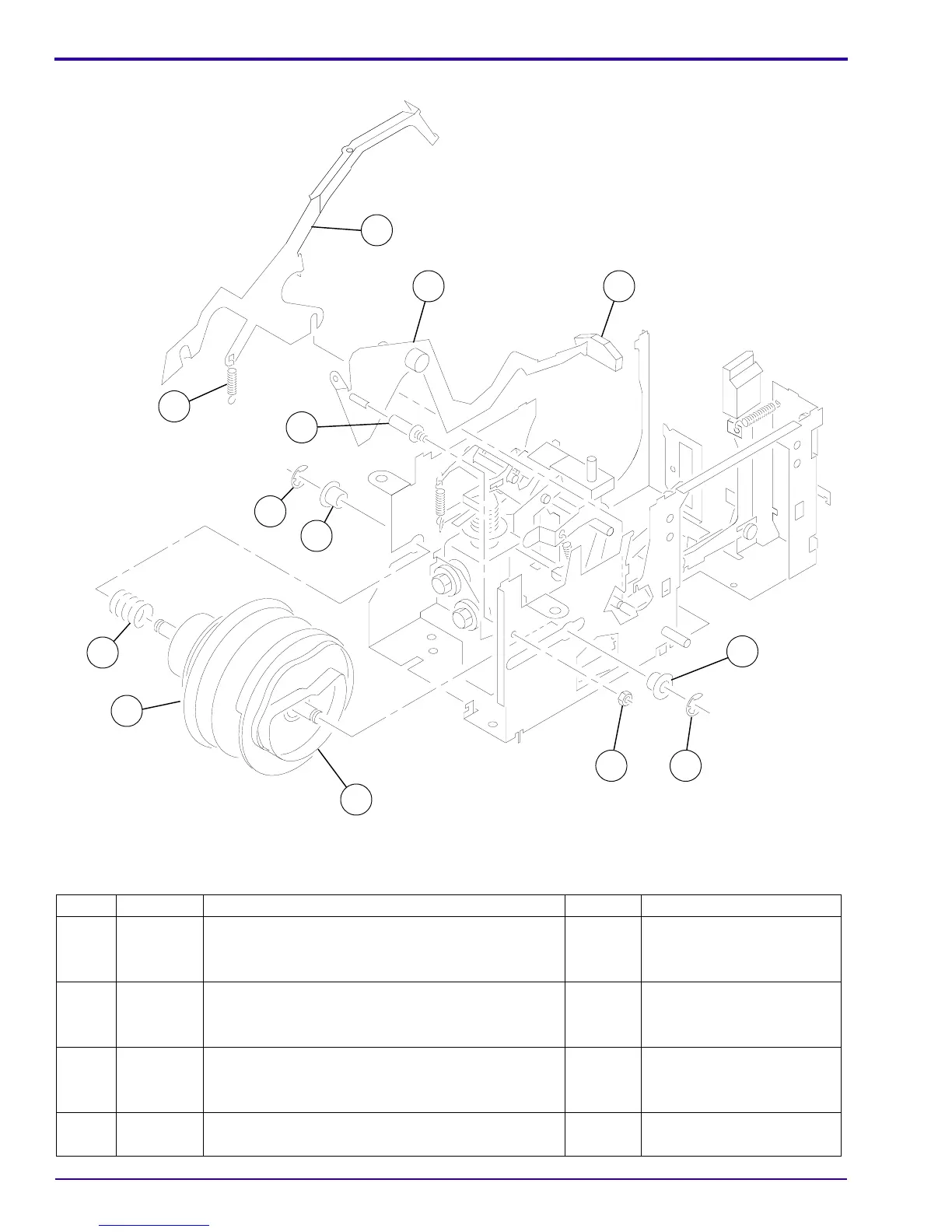

Figure 15 MECHANISM AY and CAMSTACK AY
Figure 15 MECHANISM AY and CAMSTACK AY
Item Part No. Description Quantity Notes
1 221373 BEARING - cam shaft
15 2
2 128527 E-RING
15 2
3 166120 NUT
15 1
4 257411 SHAFT AY - cam
15 1
5 231700 SPRING - ratchet
15 1
6 961672 SPRING - cam shaft
15 1
7 221362 SPRING - select lever
15 1
8 228911 BUSHING - select lever
15 1
9 223568 LEVER - select
15 1
10 784230 LEVER AY - slide lift
15 1
11 231860 RAMP - slide lift lever
15 1
A100_0025DA
A100_0025DCA
11
10
9
8
7
2
1
(not shown)
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10 11
2
1
