Kodak BC4401 - Carousel 4400 Projector User Manual

Illustrated Parts List
IP5440-1 – 11DEC03 35

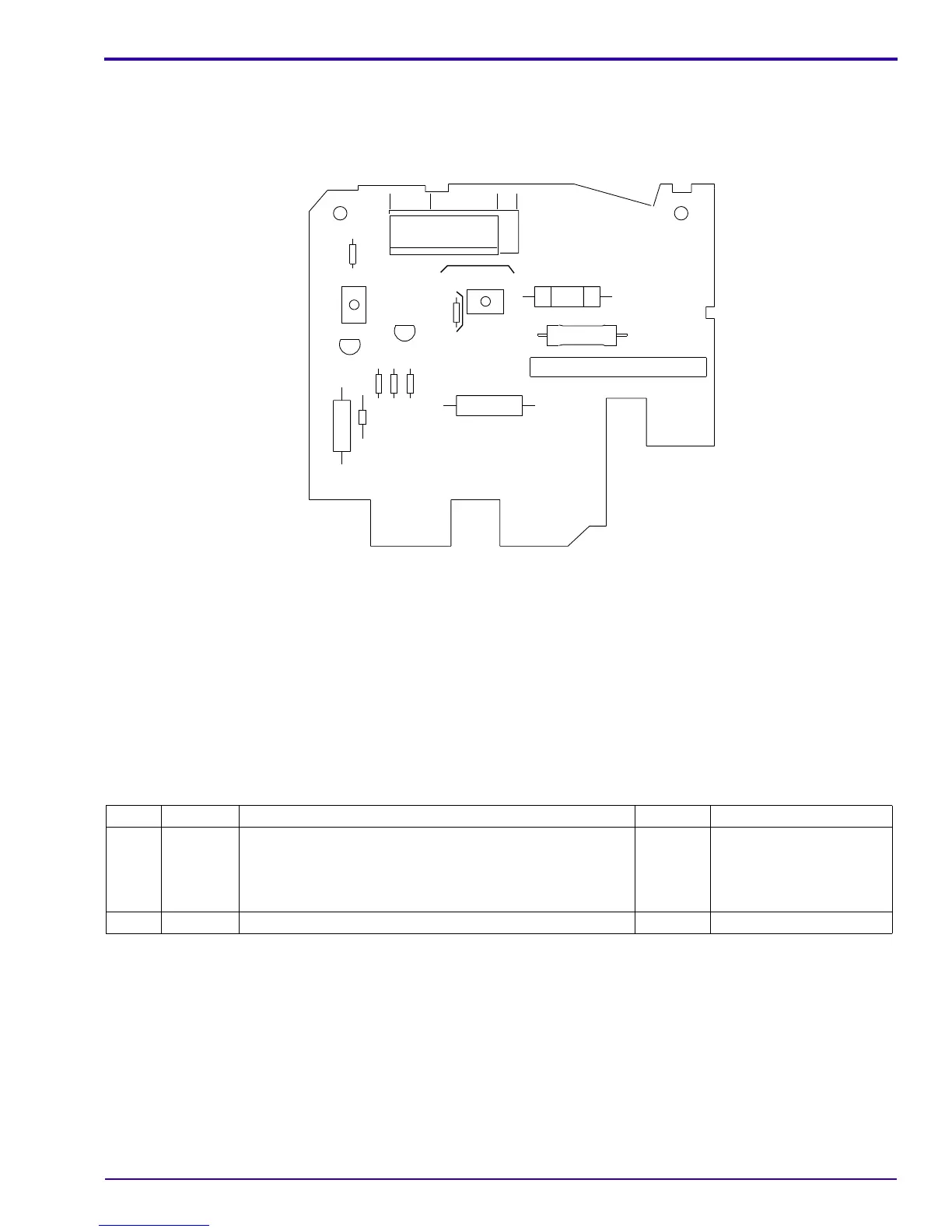

Figure 20 COMPONENT BOARD AY for the 4600, 4600-K, 4600-KK PROJECTORS
Figure 20 COMPONENT BOARD AY for the 4600, 4600-K, 4600-KK PROJECTORS
Item Part No. Description Quantity Notes
--- 256807 BOARD AY - component, 4600, 4600-K, 4600-KK
projectors
20
1
C1 215888 CAPACITOR - metalized, 0.1 mF, W±10%, 100 V dc
20 1
C4 243858 CAPACITOR - metalized, 0.22 mF, W±10%, 100 V dc
20 1
CR1 226727 RECTIFIER - diode, 1N4005, 1 AMP, 600 PIV
20 1
W4
W1
A100_0011HC
SLIDE PROJECTOR BOARD
C4
C1
CR1
R5
R6
R4
R3
Q2
Q1
CR2
R16
CR4
R7
F1
YBOVVARKB
J1
