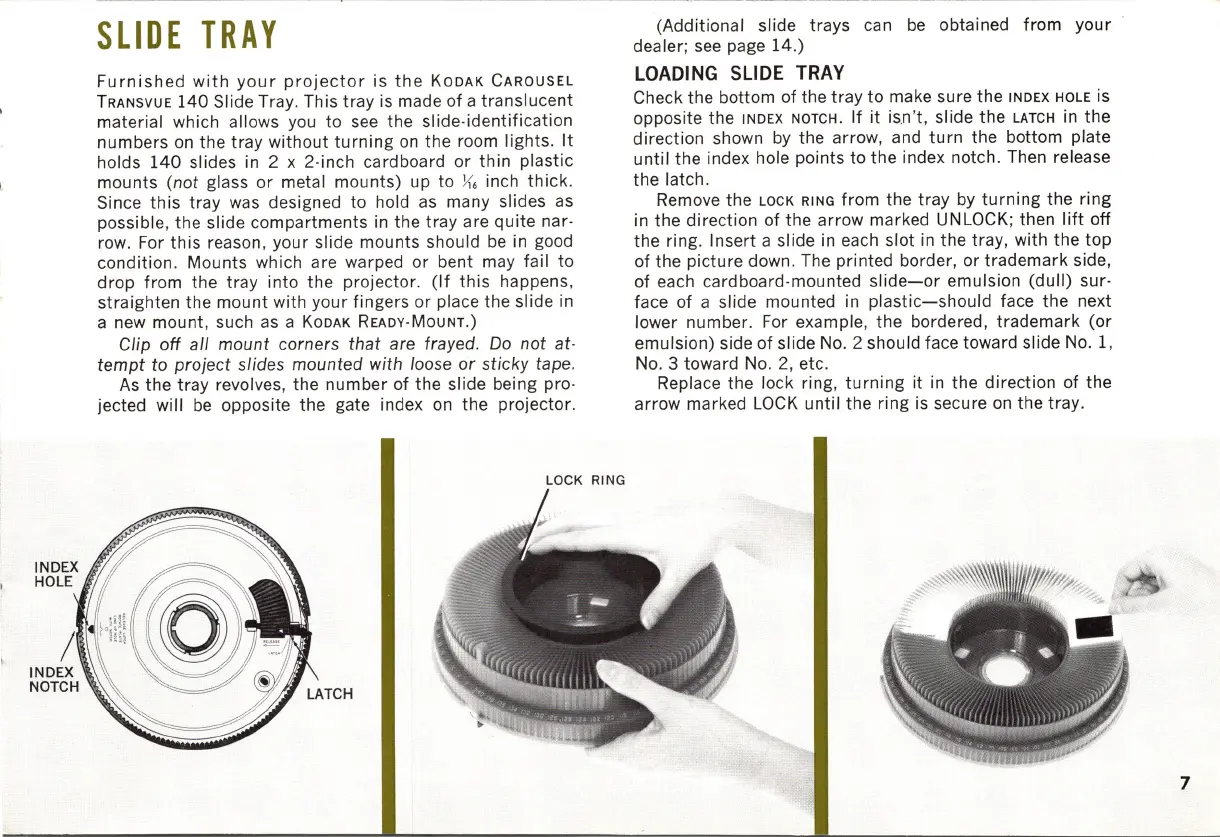

SLIDE TRAY
Furnished with your projector is the KODAK CAROUSEL
TRANSVUE 140 Slide Tray. This tray is made of a translucent
material which allows you to see the slide-identification
numbers
on the tray without turning on the room lights. It
holds 140 slides in 2 x 2-inch cardboard or thin plastic
mounts
(not glass or metal mounts) up to ).{6 inch thick .
Since
this tray was designed to hold as many slides as
possible, the slide compartments in the tray are quite nar-
row. For
this reason, your slide mounts should be in good
condition. Mounts which are warped or bent may fail to
drop from the tray into the projector.
(If this happens,
straighten the mount with your fingers or place the slide in
a new mount, such
as a KODAK READ y- MoUNT .)
Clip off all mount corners that are frayed. Do not at -
tempt to project slides mounted with loose or sticky tape.
As the tray revolves, the number of the slide being pro-
jected will
be opposite the gate index on the projector_
LOCK RI NG
--------- ----.---~
(Additional slide trays can be obtained from your
dealer;
see page 14.)
LOADING SLIDE TRAY
Check the bottom of the tray to make sure the INDEX HOLE is
opposite the
INDE X NOTCH. If it isn't, slide the LATCH in the
direction shown
by the arrow, and turn the bottom plate
until the index hole points to the index notch. Then release
the latch.
Remove the
LOCK RING from the tray by turning the ring
in the direction of the arrow marked UNLOCK; then
lift off
the ring. Insert a slide in each slot in the tray, with the
top
of the picture down. The printed border, or trademark side,
of each cardboard-mounted
slide-or emulsion (dull) sur-
face of a slide mounted in
plastic-should face the next
lower number.
For example, the bordered, trademark (or
emulsion) side of slide
No.2 should face toward slide No.1,
No_ 3 toward No . 2, etc_
Replace the lock ring,
turning it in the direction of the
arrow marked
LOCK until the ring is secure on the tray_
