Kodak CAROUSEL NEW LOOK PROJECTOR - Replace Lens Mount Assembly (Auto Focus); Install Lens Mount Assembly (Auto Focus)

Replacements and Installations
SM5440-1 – 18NOV97 19
Replacing the LENS MOUNT ASSEMBLY - Auto Focus Model
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the replacement procedure for the LOWER
HOUSING ASSEMBLY.
[3] Remove the FOCUS KNOB.
Important
It is necessary to push the AUTO-FOCUS BRACKET
backward and forward to allow access to the SCREWS
on the LENS MOUNT ASSEMBLY.
[4] Remove the 3 SCREWS from the LENS MOUNT
ASSEMBLY.
[5] Lift and remove the LENS MOUNT ASSEMBLY.
Installing the LENS MOUNT ASSEMBLY - Auto Focus Models
[1] Do the replacement procedure for the LENS MOUNT ASSEMBLY in reverse order.

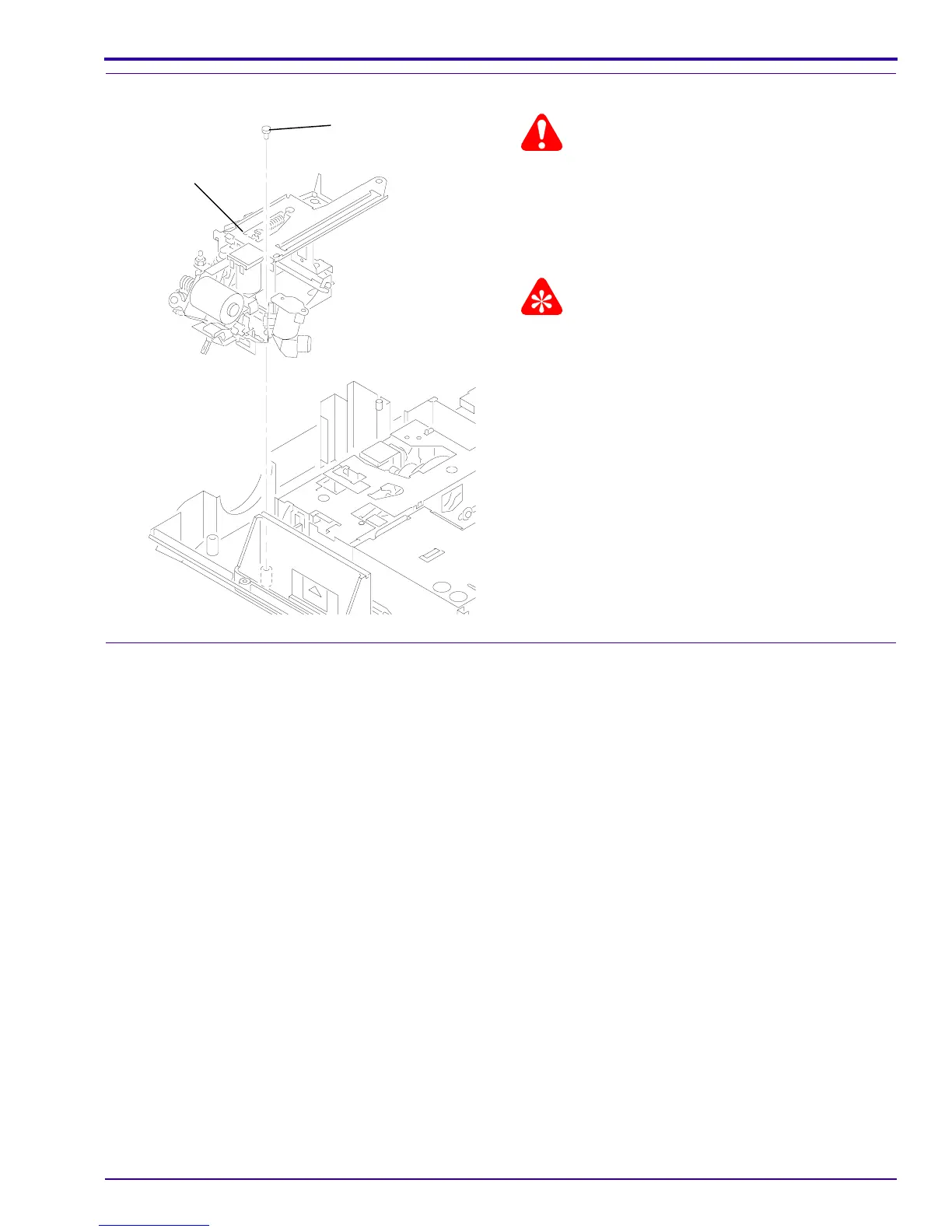

A100_0019GA
SCREW (3)
ASSEMBLY
LENS MOUNT
A100_0019GCA
