Adjustments
SM5440-1 – 18NOV97 27
Adjusting the SLIDE LIFT LEVER MANUAL, with MECHANISM Out
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the removal for the MECHANISM ASSEMBLY.
[3] Place the MECHANISM ASSEMBLY on the MECHANISM RUNNING FIXTURE.
[4] Press and hold the SELECT LEVER down to move the SLIDE LIFT LEVER to the highest position.

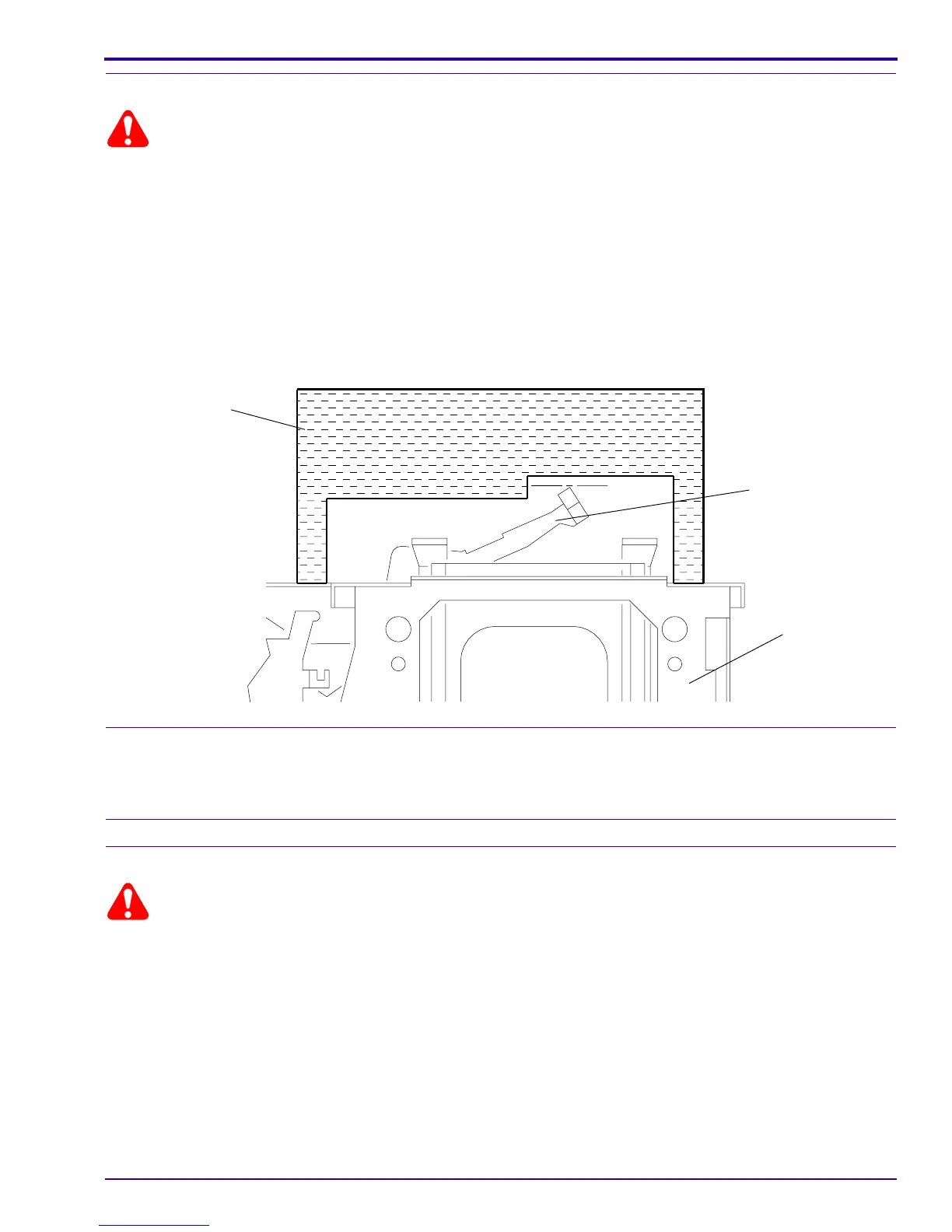

[5] Measure the height of the SLIDE LIFT LEVER. Use SLIDE LIFT LEVER GAUGE TL-3001. The SLIDE LIFT
LEVER should make contact with the low surface of the SLIDE LIFT LEVER GAUGE TL-3001; the SLIDE LIFT
LEVER should not make contact with the high surface of the SLIDE LIFT LEVER GAUGE TL-3001.
[6] Bend the SLIDE LIFT LEVER until the adjustment is correct.
Adjustment Specification
Use MECHANISM RUNNING FIXTURE. Use TL-3001 to measure the height of the SLIDE LIFT LEVER. The
LEVER should make contact with the low surface of TL-3001. The LEVER should not make contact with the high
surface of TL-3001.
Adjusting the SLIDE LIFT LEVER POWER with Mechanism Out
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the removal for the MECHANISM ASSEMBLY.
[3] Place the MECHANISM ASSEMBLY on the MECHANISM RUNNING FIXTURE TL-3000.
[4] Energize the MECHANISM FIXTURE.
[5] Press and hold the SELECT LEVER down to move the SLIDE LIFT LEVER to the highest position.
[6] Measure the height of the SLIDE LIFT LEVER. Use SLIDE LIFT LEVER GAUGE TL-3001. The SLIDE LIFT
LEVER should make contact with the low surface of the SLIDE LIFT LEVER GAUGE TL-3001; the SLIDE LIFT
LEVER should not make contact with the high surface of the SLIDE LIFT LEVER GAUGE TL-3001.
[7] Bend the SLIDE LIFT LEVER until the adjustment is correct.
A091_0016BA
TL-3001
LEVER GUAGE
SLIDE LIFT
SELECT
A091_0016BCA
(not shown)
LEVER
SLIDE LIFT
LEVER
To Next Page
