Replacements and Installations
SM5440-1 – 18NOV97 9
Installing the WORM PULLEY and MECHANISM BELT
Important
When installing the FAN and MECHANISM BELTS, install the MECHANISM BELT on the small MOTOR PULLEY,
and the FAN BELT on the large MOTOR PULLEY.
[1] Do the replacement procedure for the WORM PULLEY and MECHANISM BELT in reverse order.

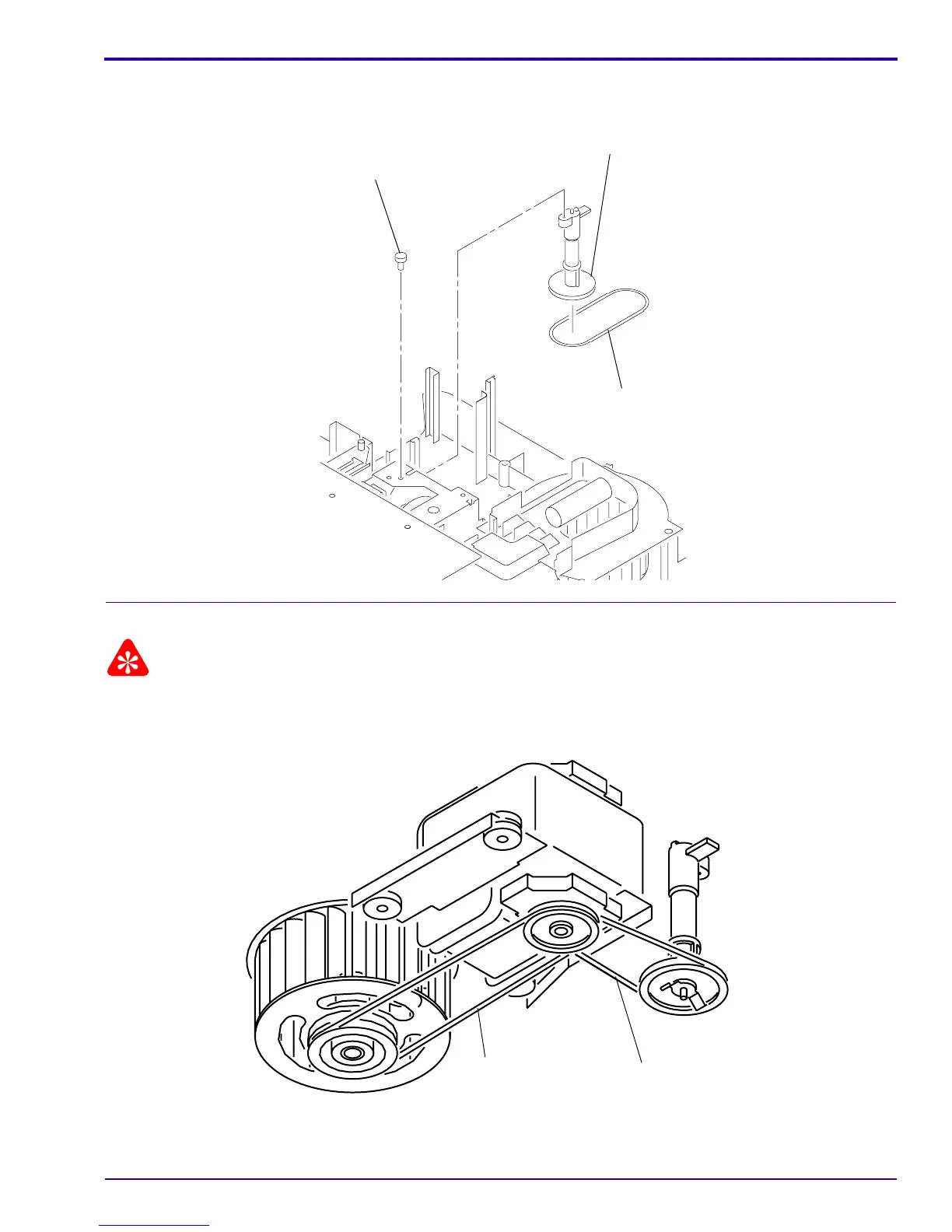

A091_4017GA
WORM PULLEY
BELT
MECHANISM
A091_4017GCA
SCREW
A091_4015BA
A091_4015BCA
MECHANISM BELT
FAN BELT
