SERVICE MANUAL
14 18NOV97 – SM5440-1

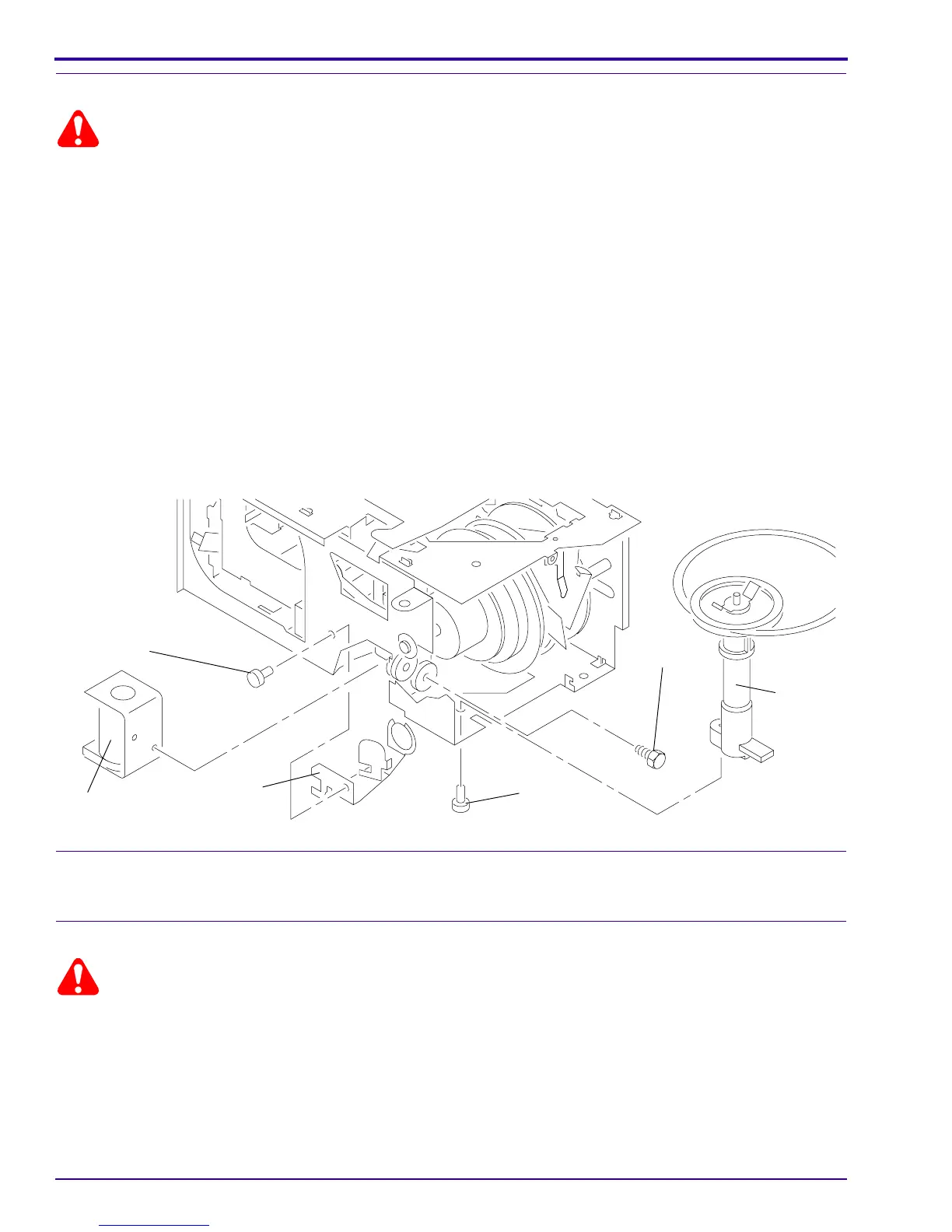

Replacing the AUTO-FOCUS BRACKET ASSEMBLY
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the replacement procedure for the LOWER HOUSING ASSEMBLY.
[3] Cut and remove the necessary WIRE TIES.
[4] Disconnect the 2 wires from the CYCLE SOLENOID on the SMALL CIRCUIT BOARD.
[5] Pull the SMALL CIRCUIT BOARD up.
[6] Do the replacement procedure for the MECHANISM ASSEMBLY.
[7] Remove the
Torx
SCREW from the WORM PULLEY.
[8] Remove the WORM PULLEY.
[9] Remove the 2
Hex
SCREWS from the CYCLE SOLENOID.
[10] Remove the CYCLE SOLENOID.
[11] Remove the
Phillips
SCREW from the AUTO-FOCUS BRACKET ASSEMBLY.
[12] Pull and remove the AUTO-FOCUS BRACKET ASSEMBLY through the hole where the CYCLE SOLENOID
was.
Installing the AUTO-FOCUS BRACKET ASSEMBLY
[1] Do the replacement procedure for the AUTO-FOCUS BRACKET ASSEMBLY in reverse order.
Replacing the CAM STACK ASSEMBLY and CYCLE LEVER ASSEMBLY
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the replacement procedure for the MECHANISM ASSEMBLY.
[3] Remove the INDEXER LEVER ASSEMBLY from the TOP PLATE of the MECHANISM ASSEMBLY.
[4] Remove the
Torx
SCREW from the WORM PULLEY ASSEMBLY.
[5] Remove the WORM PULLEY ASSEMBLY.
[6] Remove the DIRECTION LEVER LINK from the DIRECTION LEVER.
A091_4023BA
SOLENOID
CYCLE
SCREW
ASSEMBLY
BRACKET
FOCUS
AUTO
SCREW (2)
SCREW
A091_4023BCA
PULLEY
WORM
To Next Page
