Replacements and Installations
SM5440-1 – 18NOV97 7
Replacing the MOTOR
Warning
Dangerous Voltage
[1] Disconnect the main power.
[2] Do the replacement procedure for the LOWER HOUSING ASSEMBLY.
[3] Disconnect all wires from the MOTOR.
[4] Cut the 2 WIRE TIES on the SMALL CIRCUIT BOARD between the MOTOR and MECHANISM ASSEMBLY.
[5] Disconnect the 2 wires from the CYCLE SOLENOID on the SMALL CIRCUIT BOARD.
[6] Pull the SMALL CIRCUIT BOARD up.
[7] Disconnect all wires on the MOTOR.
[8] Remove 3
Hex
1/4 in. SCREWS from the MOTOR.
[9] Lift the MOTOR up to allow access to the FAN and MECHANISM BELTS.
[10] Remove the FAN and MECHANISM BELTS from the MOTOR PULLEY.
[11] Remove the MOTOR.
Installing the MOTOR
Important
When installing the FAN and MECHANISM BELTS, install the MECHANISM BELT on the small MOTOR PULLEY,
and the FAN BELT on the large MOTOR PULLEY.
[1] Do the replacement procedure for the MOTOR in reverse order.

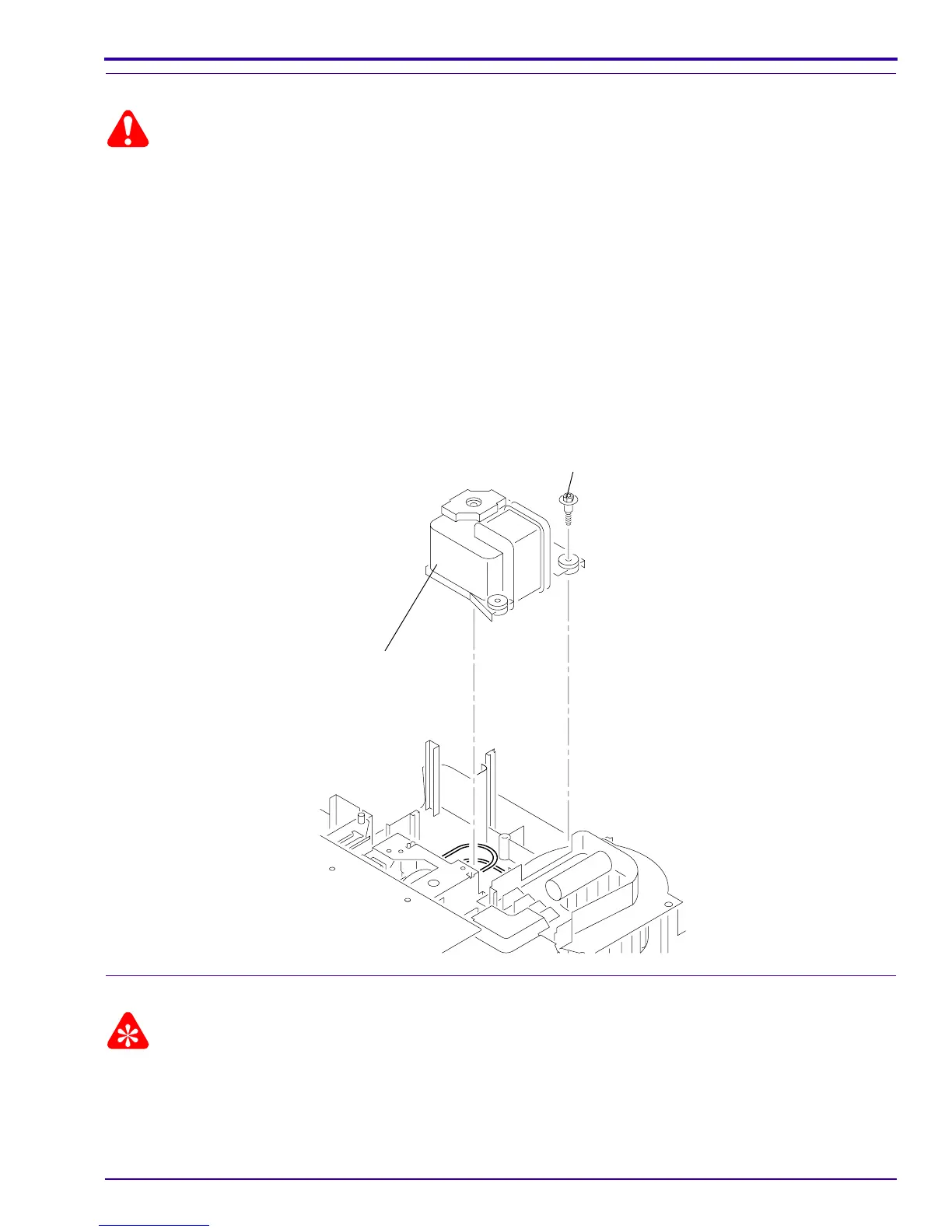

MOTOR
SCREW (3)
A091_4016GCA
To Next Page
