SERVICE MANUAL
42 18NOV97 – SM5440-1
Section 6: Diagnostics

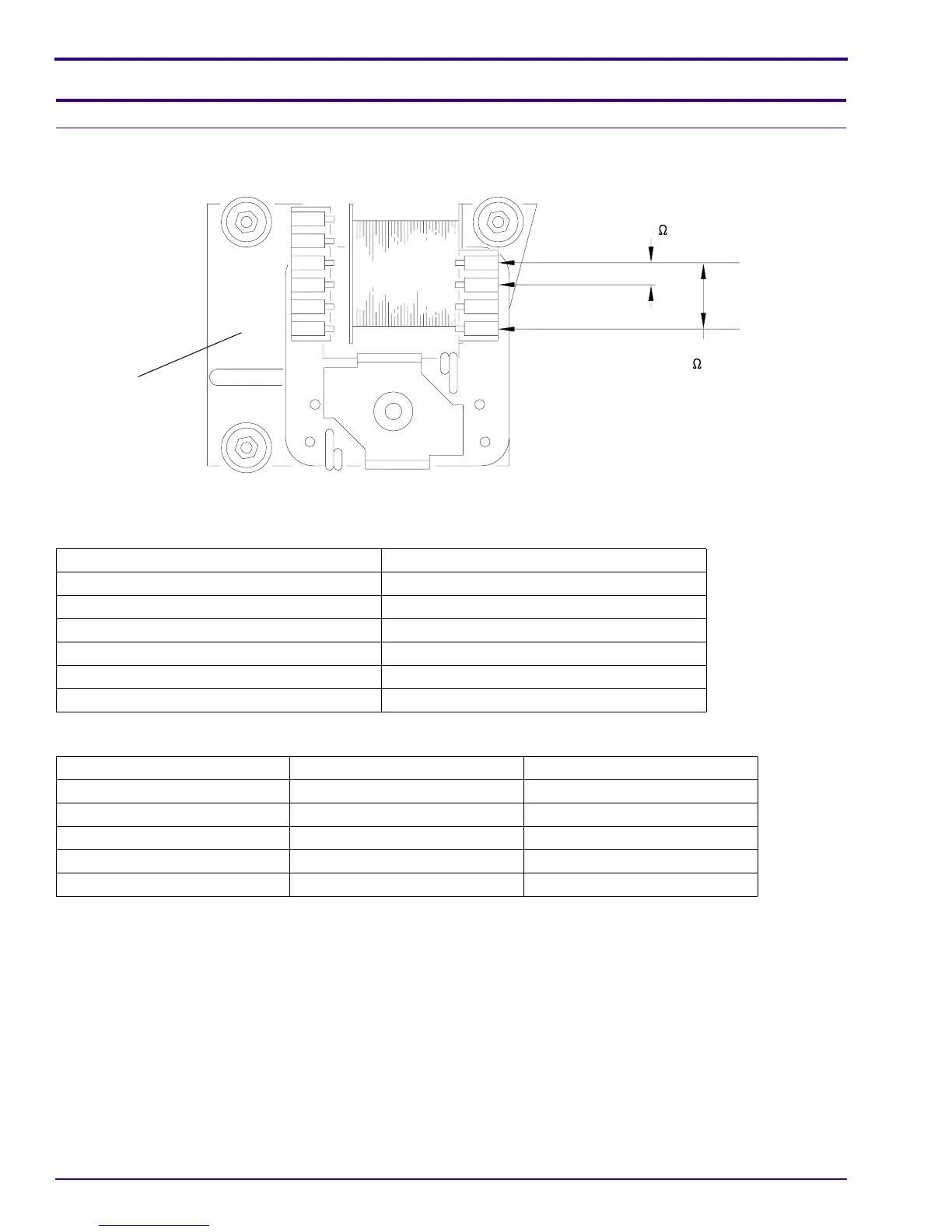

MAIN MOTOR Voltages
MAIN MOTOR PIN Colors
MAIN MOTOR PIN Voltages
PIN Color
12 brown
11 red
10 violet
9 yellow
8 blue
7 not used
PIN Resistance Voltage
8-9 3.1 W 24.4 V AC
10-11 4.3 W 14.1 V AC
11-12 4.2 W 14.1 V AC
10-12 8.0 W 28.2 V AC
9-10 O.L.
12
11
10
9
8
7
A091_0006BA
brown
white
black
84.2 V
1.6
117 V AC
6.1
LAMP VOLTAGE is
74 V AC
between brown
and white for
LONG LIFE MODELS
MOTOR
A091_0006BCA
