PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
10 of 30

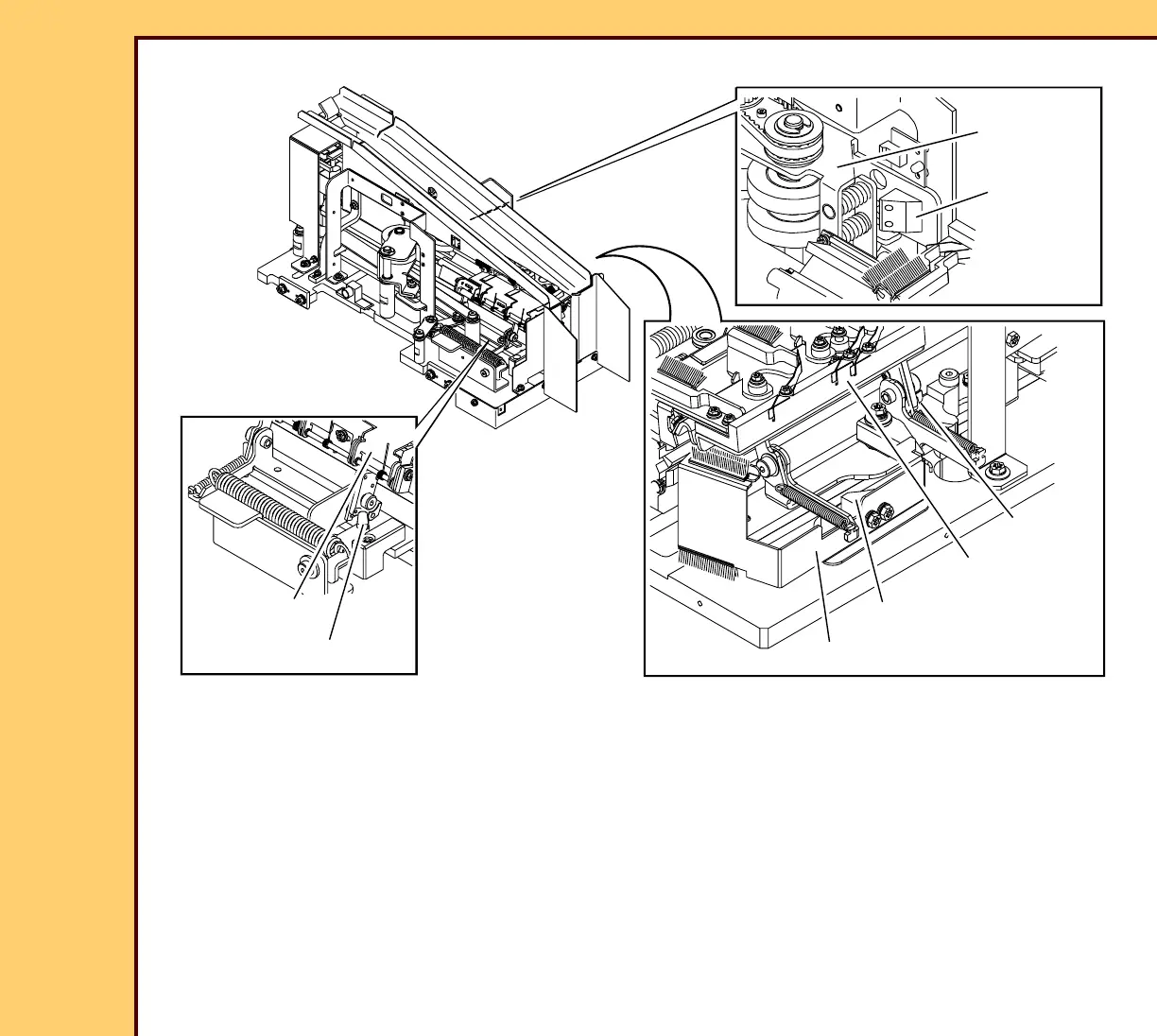

4 Apply lubricant to:
• STOP PIN for the RIGHT LIGHT SEAL AY
• STOP PIN for the LEFT LIGHT SEAL AY
• CAM BLOCK for the FRONT LIGHT SEAL
• CAM BLOCK for the DRIVE ROLLER AY
5 Continue with Cleaning the BAR CODE READER.
H194_1079HC
SEAL AY
LEFT LIGHT
STOP PIN
DRIVE
ROLLER AY
CAM BLOCK
H194_1079HCA
FRONT LIGHT SEAL
CAM BLOCK
RIGHT LIGHT
STOP PIN
SEAL AY
