PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
19 of 30

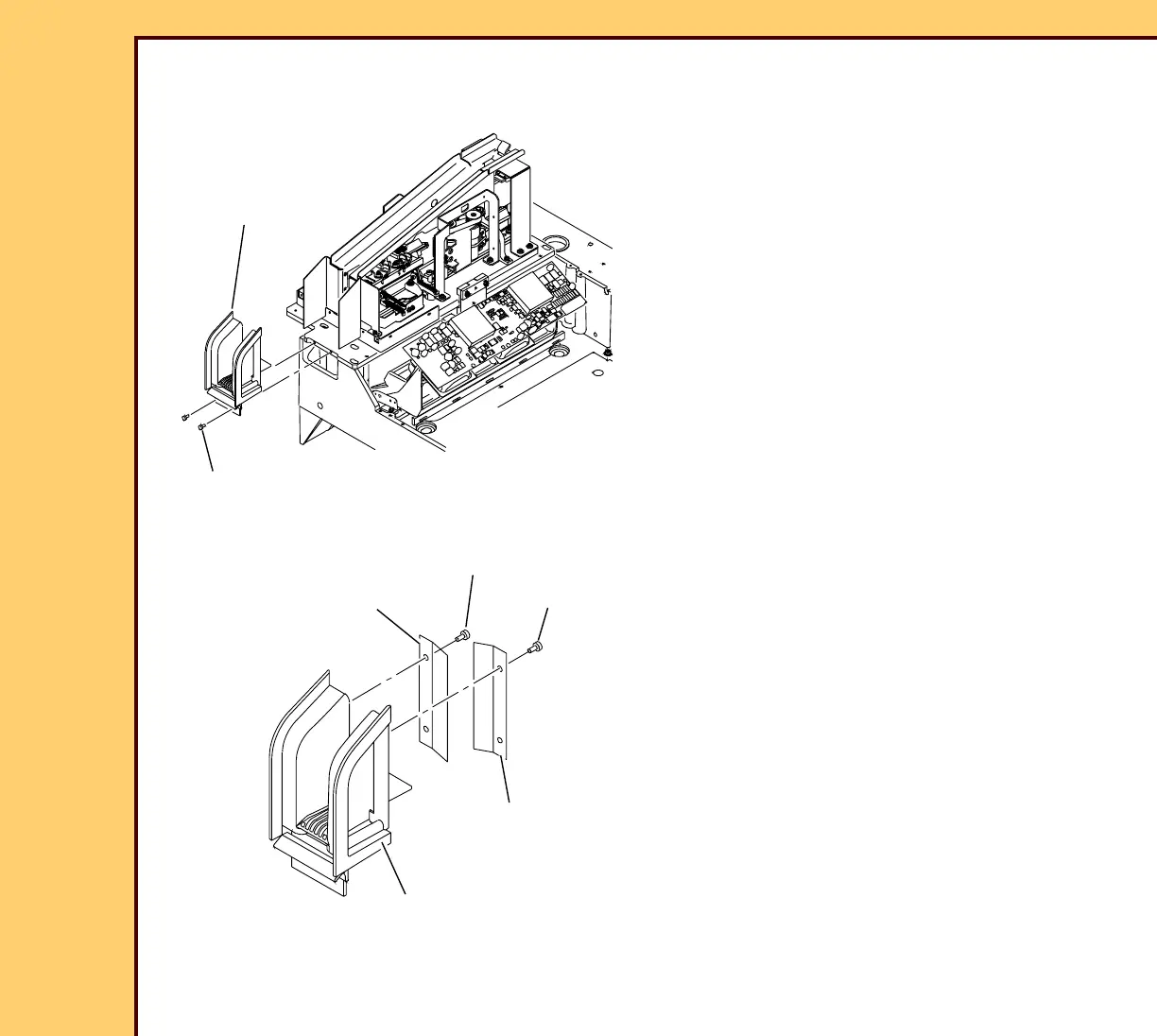

Installing the New RIGHT and LEFT LIGHT BAFFLES
1 Remove:
• 2 SCREWS
• CASSETTE LOAD CRADLE
2 Remove:
• 2 SCREWS
• LEFT LIGHT BAFFLE - discard
• 2 SCREWS
• RIGHT LIGHT BAFFLE - discard
3 Install:
• new LEFT LIGHT BAFFLE
• 2 SCREWS
• new RIGHT LIGHT BAFFLE
• 2 SCREWS
4 Reverse Step 1.
5 Continue with Installing the New
REAR CLIP AY.
H194_1074AC
H194_1074ACA
CASSETTE
LOAD CRADLE
2 SCREWS
H194_1085AC
LOAD CRADLE
CASSETTE
BAFFLE
RIGHT LIGHT
2 SCREWS
BAFFLE
LEFT LIGHT
2 SCREWS
H194_1085ACA
