PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
24 of 30
Installing the New FIXED LIGHT SEAL PADDLE
1 Remove:
• 2 SCREWS
• FIXED LIGHT SEAL PADDLE -
discard
2 Install:
• new FIXED LIGHT SEAL PADDLE
• 2 SCREWS
3 Continue with Installing the New
LIGHT SEAL PADDLE.

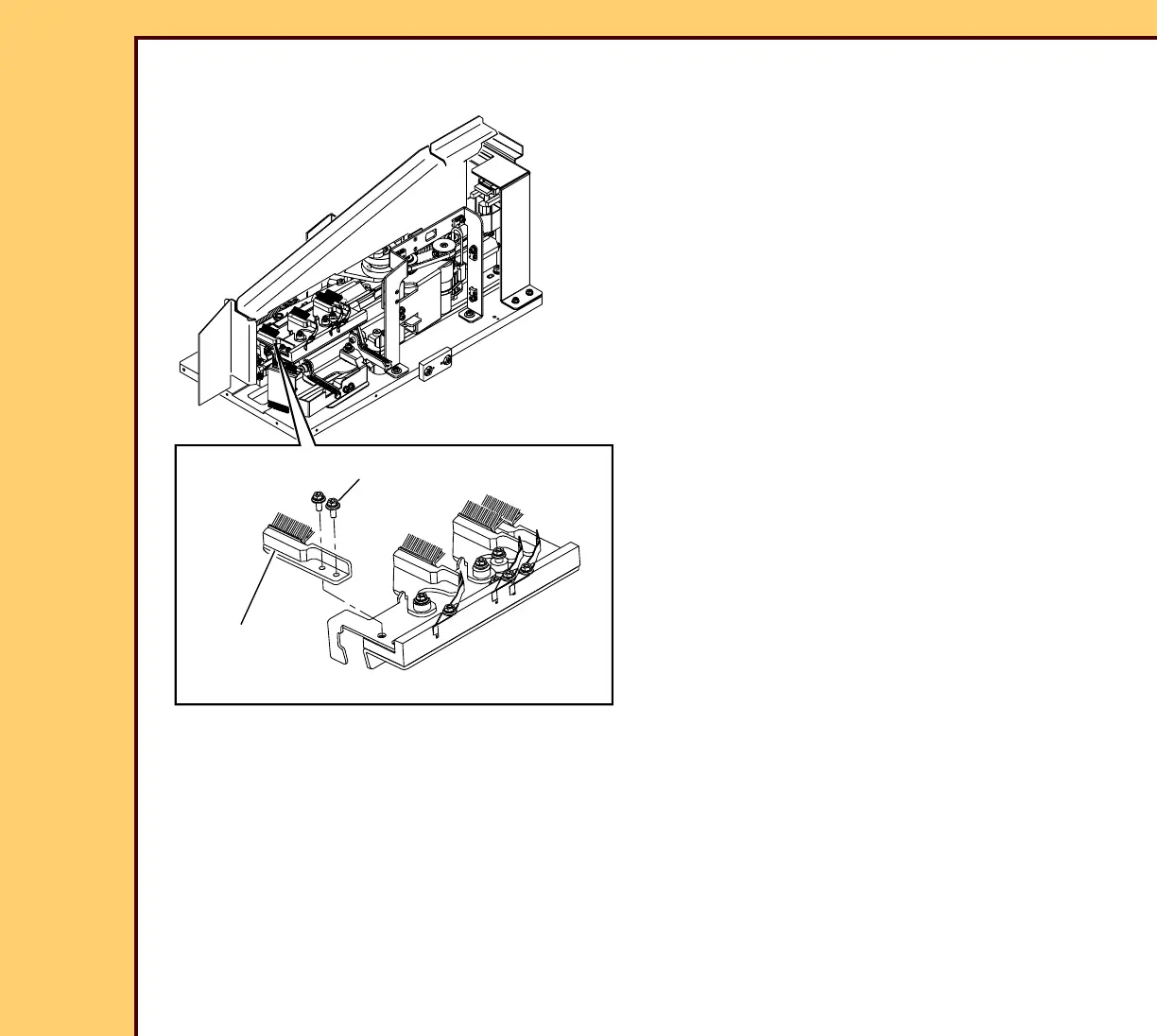

H194_1091GC
SEAL PADDLE
FIXED LIGHT
2 SCREWS
H194_1091GCA
