PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Pag
e
23 of 30
Installing the New LEAF SPRINGS
1
Remo
v
e:
•
3 SCREWS
•
3 LEAF SPRINGS - discard
2
Install:
•
3 new LEAF SPRINGS
•
3 SCREWS
3
Continue with
Installing the New
FIXED LIGHT SEAL P
ADDLE
.

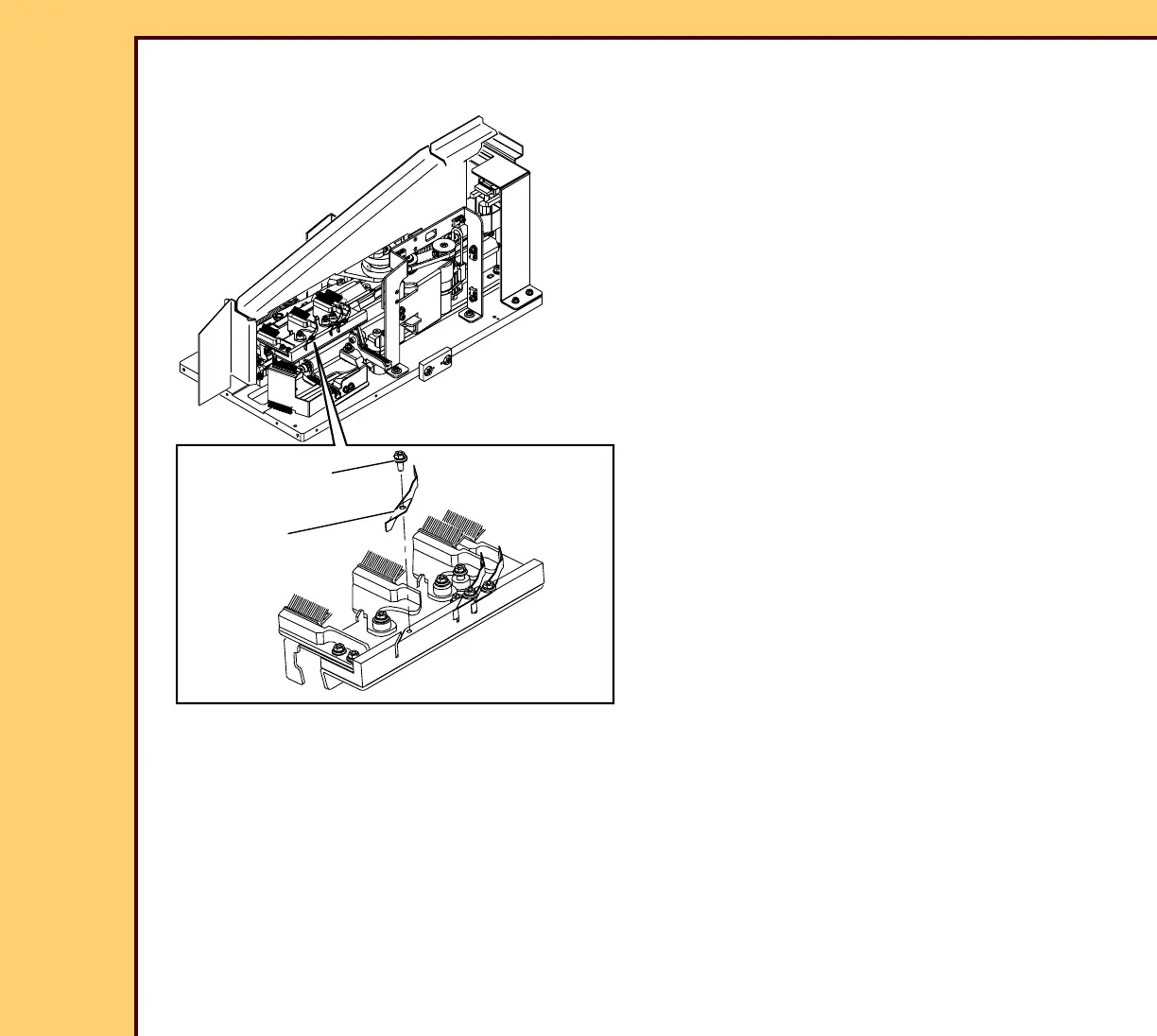

H194_1090GC
SPRINGS
3 LEAF
3 SCREWS
H194_1090GCA
22
24
Table of Contents
Table of Contents
2
Necessary Materials
3
Maintenance Plan
4
Checking the Error Logs
5
Checking the Scan Operation
5
Cleaning the FILTER - 2.4 Ghz PC Only
6
Cleaning the PMT/DAS BOARD
7
Cleaning the Pmts and COLLECTOR AY
8
Cleaning and Applying Lubricant to the CASSETTE HANDLING AY
9
Cleaning the BAR CODE READER
11
Cleaning the EXTRACTION BAR
12
Cleaning and Applying Lubricant to the SLOW SCAN SLIDES
13
Cleaning the ERASE LAMP AY
14
Cleaning the System
15
Installing the New LIGHT SEALS on the TOP COVER
16
Installing the New CLAMP BAR PLUSH
17
Installing the New RIGHT and LEFT LIGHT BAFFLES
19
Installing the New REAR CLIP AY
20
Installing the New LIGHT SEAL PLUSH
21
Installing the New LEAF SPRINGS
23
Installing the New FIXED LIGHT SEAL PADDLE
24
Installing the New LIGHT SEAL PADDLE
25
Installing the New CASSETTE DRIVE ROLLERS
26
Checking the CAM and MOTOR
27
Checking the Adjustments
28
Checking the Operation
29
